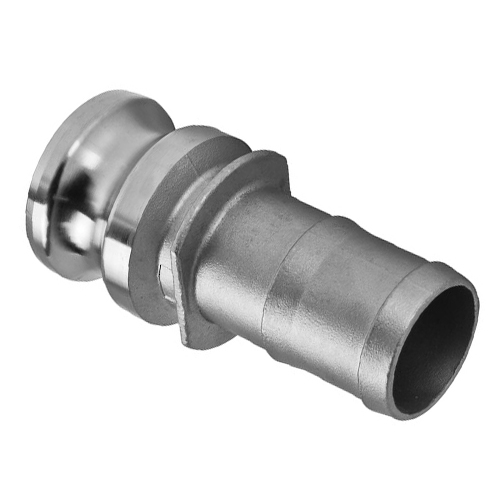

Stainless Steel 316 Camlock Coupling (Type E) - Hose Tail
,gravity=Center,allowExpansion)
Collect 5 Everyday Rewards points
Collect 5 Everyday Rewards points
Stainless Steel 316 Camlock. MIL A-A-59326A / MIL C-27487
CAMLOCK COUPLINGS | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |
Type E Camlock - Male Adaptor x Hosebarb - Stainless Steel | ||||||||
Part Number | Coupling Size (In) | Coupling Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | WEIGHT (kg) |
6202.05.15 | 1/2" | 13 | 14 | 72 | 34 | 20 | 40 | 0.03 |
6202.05.20 | 3/4" | 19 | 19 | 88 | 34 | 20 | 40 | 0.06 |
6202.05.25 | 1" | 25 | 24 | 102 | 38 | 26 | 46 | 0.09 |
6202.05.32 | 1. 1/4" | 32 | 28 | 108 | 48 | 33 | 53 | 0.14 |
6202.05.40 | 1. 1/2" | 38 | 35 | 129 | 56 | 39 | 56 | 0.2 |
6202.05.50 | 2" | 51 | 48 | 136 | 66 | 52 | 61 | 0.25 |
6202.05.65 | 2. 1/2" | 63 | 58 | 159 | 80 | 65 | 65 | 0.43 |
6202.05.80 | 3" | 76 | 72 | 166 | 102 | 77 | 66 | 0.5 |
6202.05.94 | 4" | 102 | 98 | 177 | 132 | 103 | 70 | 0.82 |
6202.05.96 | 6" | 1562 | 140 | 250 | 175 | 150 | 75 | 2.28 |
Estimated Delivery Time Frame:2-7 business days
