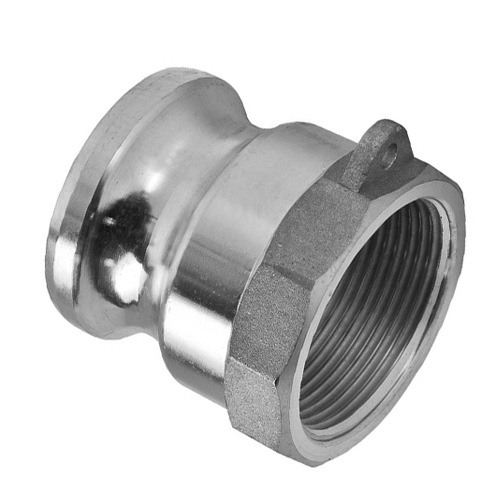

Stainless Steel 316 Camlock Coupling (Type A) - BSP Thread
,gravity=Center,allowExpansion)
Collect 4 Everyday Rewards points
Collect 4 Everyday Rewards points
Stainless Steel 316 Camlock. MIL A-A-59326A / MIL C-27487
CAMLOCK COUPLINGS | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |
Type A Camlock - Male Adaptor x Female BSP - Stainless Steel | |||||||
Part Number | Coupling size (In) | Coupling Size (mm) | A (mm) | B (mm) | C (mm) | Thread Type | WEIGHT (kg) |
6202.01.15 | 1/2" | 13 | 21 | 41 | 32 | BSPP | 0.04 |
6202.01.20 | 3/4" | 19 | 21 | 41 | 32 | BSPP | 0.09 |
6202.01.25 | 1" | 25 | 24 | 52 | 40 | BSPP | 0.11 |
6202.01.32 | 1. 1/4" | 32 | 28.5 | 54 | 48 | BSPP | 0.20 |
6202.01.40 | 1. 1/2" | 38 | 36 | 57 | 56 | BSPP | 0.30 |
6202.01.50 | 2" | 51 | 45 | 62 | 67 | BSPP | 0.36 |
6202.01.65 | 2. 1/2" | 63 | 56.5 | 71 | 83 | BSPP | 0.58 |
6202.01.80 | 3" | 76 | 73 | 71 | 96 | BSPP | 0.7 |
6202.01.94 | 4" | 102 | 98 | 82 | 127 | BSPP | 1.07 |
6202.01.96 | 6" | 152 | 150 | 79 | 183 | BSPP | 1.66 |
