Stainless Steel 316 Camlock Coupling (Type C)

Image 1
Hurry! 9 items left!
From$10.37

Collect 10 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

316 stainless steel hose coupling is embedded with high-end strength and efficiency, thus making it the perfect solution for heavy-duty applications. Besides, our stainless steel hose coupling quickly connects the hoses, which makes it a reliable choice to use with tubes, tanks, and dry bulk materials.


Our Stainless Steel 316 Hose Coupling Specifications



  • Made from 316 stainless steel for ultimate strength and resilience

  • Standard Buna-N seal installed for tight, leakproof connections

  • Manufactured to interchange with all products produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2 (15mm) fittings are not covered by Mil-Spec A-A 59326; this size is to the manufacturer's specification only.)


Amazing Benefits of Our 316 Stainless Steel Hose Coupling



  • Long-lasting with Ultimate Resilience


Our hose coupling incorporates highly resilient 316 stainless steel material, which imparts the ultimate strength needed to resist abrasion and withstand extreme conditions. This also allows the coupling to last longer while ensuring consistent performance every time.



  • LeakProof Performance


The incorporation of the Buna-N seal allows our hose coupling to secure connections and ensure zero leak possibility, thus making it a reliable solution for diverse applications.



  • Quick and Easy Installation


Our coupling involves a simple mechanism for installation. You simply need to open the coupler arms, insert the adapter in the coupler, and secure the connection with normal hand pressure, eventually making it quick yet efficient for everyone.


Applications of Our Stainless Steel 316 Hose Coupling



  • Hoses

  • Pipes and tubing

  • Tanks


With ultimate resilience and leakproof performance, our stainless steel hose coupling becomes your go-to partner for secure connections.










































CAMLOCK COUPLINGS
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP

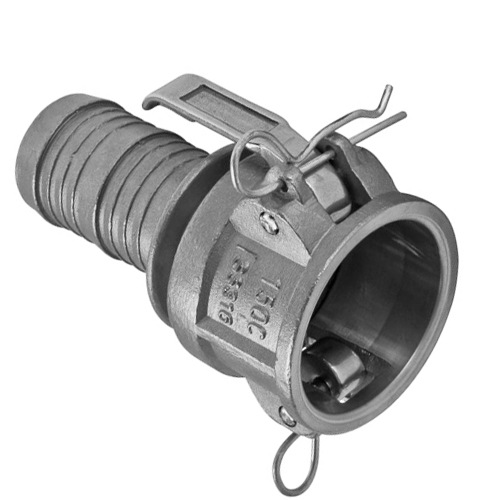

Type C Camlock - Female Coupler x Hosebarb - Stainless Steel
Part Number Coupling Size (In) Coupling Size (mm) A (mm) B (mm) D (mm) E (mm) G (mm) WEIGHT (kg)
6202.03.15 1/2" 13 14 71 20 32 53 0.13
6202.03.20 3/4" 19 14 84 20 32 53 0.19
6202.03.25 1" 25 20 98 26 40 60 0.29
6202.03.32 1. 1/4" 32 25 103 33 48 78 0.46
6202.03.40 1. 1/2" 38 31 121 39 49 85 0.56
6202.03.50 2" 51 43 138 52 54 96 0.72
6202.03.65 2. 1/2" 63 55 149 65 59 110 1.08
6202.03.80 3" 76 67 160 77 60 127 1.56
6202.03.94 4" 102 92 170 103 62 156 2.26
6202.03.96 6" 152 140 230 150 62 240 4.22

Estimated Delivery Time Frame:2-7 business days
