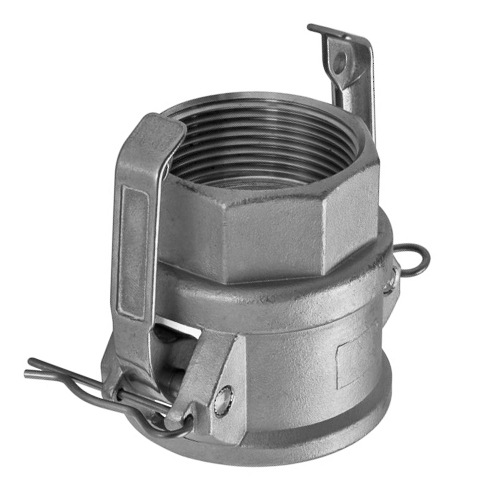

Stainless Steel 316 Camlock Coupling (Type D) - BSP Thread
,gravity=Center,allowExpansion)
Collect 10 Everyday Rewards points
Collect 10 Everyday Rewards points
Stainless Steel 316 Camlock. MIL A-A-59326A / MIL C-27487
CAMLOCK COUPLINGS | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |
Type D Camlock - Female Coupler x Female BSP - Stainless Steel | |||||||||
Part Number | Coupling Size (In) | Coupling Size (mm) | A (mm) | B (mm) | C (mm) | E (mm) | G (mm) | Thread Type | WEIGHT (kg) |
6202.04.15 | 1/2" | 13 | 16 | 47 | 32 | 32 | 53 | BSPP | 0.12 |
6202.04.20 | 3/4" | 19 | 19 | 53 | 32 | 32 | 53 | BSPP | 0.18 |
6202.04.25 | 1" | 25 | 26 | 60 | 40 | 40 | 60 | BSPP | 0.25 |
6202.04.32 | 1. 1/4" | 32 | 30 | 71 | 48 | 48 | 78 | BSPP | 0.41 |
6202.04.40 | 1. 1/2" | 38 | 39 | 73 | 56 | 49 | 85 | BSPP | 0.51 |
6202.04.50 | 2" | 51 | 50 | 76 | 67 | 54 | 96 | BSPP | 0.62 |
6202.04.65 | 2. 1/2" | 63 | 58 | 84 | 83 | 59 | 110 | BSPP | 0.82 |
6202.04.80 | 3" | 76 | 72 | 89 | 96 | 60 | 127 | BSPP | 1.21 |
6202.04.94 | 4" | 102 | 98 | 94 | 127 | 62 | 156 | BSPP | 1.73 |
6202.04.96 | 6" | 152 | 140 | 99 | 175 | 62 | 240 | BSPP | 3.44 |
Estimated Delivery Time Frame:2-7 business days
Ask a Question About This Product
Reference ID: 13348564
