Stainless Steel 316 Camlock Coupling (Type DC) - Dust Cap

Image 1
Hurry! 9 items left!
From$8.91

Collect 8 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

Stainless Steel 316 Camlock. MIL A-A-59326A / MIL C-27487



  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.

  • Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2" (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)

  • Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.

  • Standard Buna-N seal installed

  • Stainless steel 316 material










































CAMLOCK COUPLINGS
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP

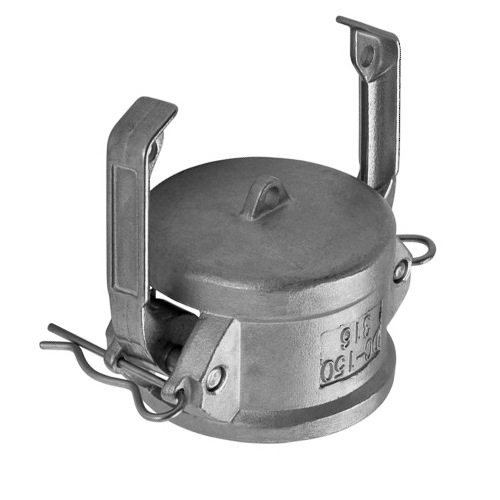

Type DC Camlock - Dust Cap - Stainless Steel
Part Number Coupling Size (In) Coupling Size (mm) B (mm) E (mm) G (mm) WEIGHT (kg)
6202.07.15 1/2" 13 37 32 53 0.13
6202.07.20 3/4" 19 45 32 53 0.18
6202.07.25 1" 25 57 40 60 0.23
6202.07.32 1. 1/4" 32 65 48 78 0.33
6202.07.40 1. 1/2" 38 65 49 85 0.41
6202.07.50 2" 51 70 54 96 0.53
6202.07.65 2. 1/2" 63 74 59 110 0.69
6202.07.80 3" 76 80 60 127 1.00
6202.07.94 4" 102 80 62 156 1.42
6202.07.96 6" 152 90 62 240 2.7
