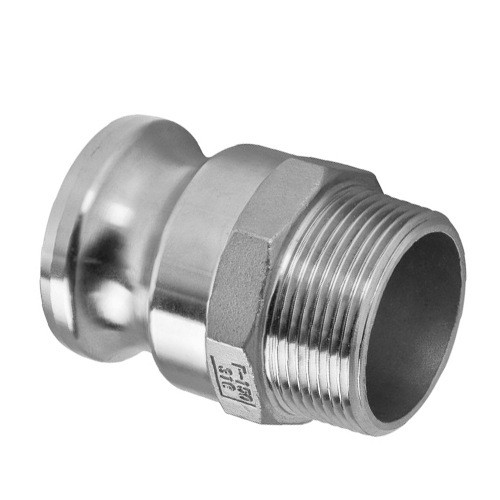

Stainless Steel 316 Camlock Coupling (Type F) - BSP Thread

Image 1
Hurry! 9 items left!
From$5.58

Collect 5 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout
Pay in 4 interest-free payments of $1.40 with Learn More

Stainless Steel 316 Camlock. MIL A-A-59326A / MIL C-27487

  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
  • Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2" (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)
  • Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
  • Standard Buna-N seal installed
  • Stainless steel 316 material
CAMLOCK COUPLINGS
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP

Type F Camlock - Male Adaptor x Male BSP - Stainless Steel
Part Number Coupling Size (In) Coupling Size (mm) A (mm) B (mm) C (mm) E (mm)? Thread Type WEIGHT (Kg)
6202.06.15 1/2" 13 21 60 32 39 BSPT 0.06
6202.06.20 3/4" 19 21 61 32 39 BSPT 0.13
6202.06.25 1" 25 24 71 40 48 BSPT 0.19
6202.06.32 1. 1/4" 32 28.5 81 48 56 BSPT 0.32
6202.06.40 1. 1/2" 38 36 79 56 61 BSPT 0.43
6202.06.50 2" 51 45 87 67 62 BSPT 0.57
6202.06.65 2. 1/2" 63 56.5 97 83 69 BSPT 0.69
6202.06.80 3" 76 73 100 96 74 BSPT 1.19
6202.06.94 4" 102 98 114 127 79 BSPT 1.84
6202.06.96 6" 152 150 118 175 77 BSPT 2.98

Estimated Delivery Time Frame:2-7 business days
