Star Tech 5G USB C to Dual RJ45 Ethernet Adapter with USB A Port for Mac/Windows
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)

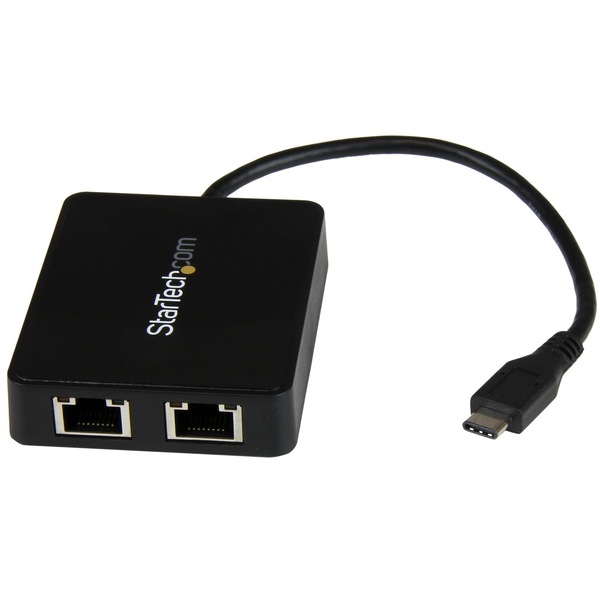

USB-C to Dual GbE Adapter w/ Built-in USB 3.0 (Type A) Port

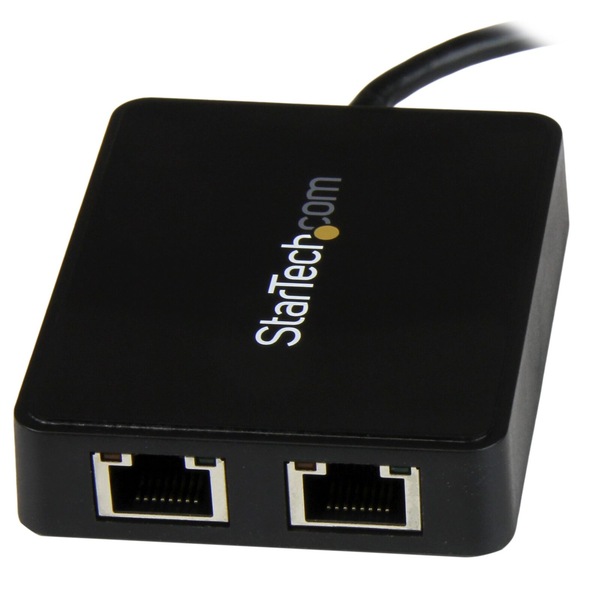

Now, you can add wired network access through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer, and connect to your USB 3.0 (Type A) devices with ease. This Gigabit Ethernet network adapter gives you access to two reliable GbE ports, and without having to install drivers. It's a great companion for your MacBook, Chromebook Pixel™, Dell™ XPS™ 12, Dell Latitude™ 12 7000 Series 2-in-1 or another device that has a USB Type-C™ port.
The network adapter leverages the 5Gbps speed of USB 3.0 (also known as USB 3.1 Gen 1) to deliver the full bandwidth of your Gigabit network connection, without bottlenecks. This saves you time by making it easier to access very large files over your network at Gigabit speed.
For added versatility, the network adapter supports a range of convenient features, such as Wake-On-LAN, VLAN Tagging, Crossover Detection and Auto-Correction (Auto MDIX), Checksum Offload (IPv4, IPv6, TCP, UDP), and Large Send Offload.

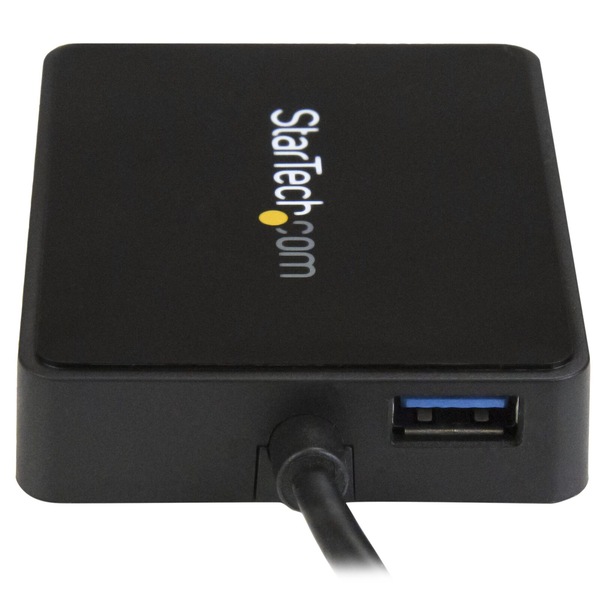

Some computers with USB Type-C only offer one USB-C port for external connectivity, which will not connect with your existing USB Type-A devices. This Gigabit adapter features an integrated USB 3.0 Type-A port, so while the adapter is connected to your computer to provide network access, you can also connect to USB peripherals that need a USB Type-A connector. The network adapter is also backward compatible with USB 2.0 systems.
Get up and running quickly. The network adapter provides native driver support to ensure a quick setup. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset offers native driver support in Chrome OS™ and Windows® 8.1, and supports Mac OSX (10.10) with driver installation.

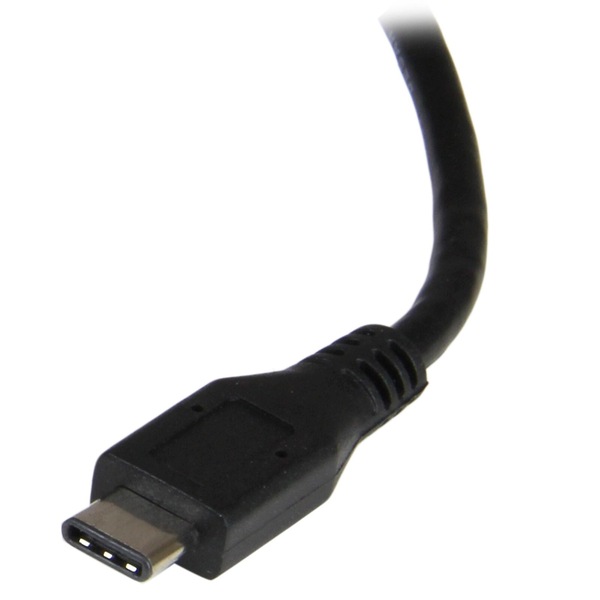

The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug, so you can connect to your devices with either side facing up. You can insert the cable the right way every time, without frustration or the risk of port damage.
Packaging Information
Package Width: 17.2 cm [6.8 in]
Shipping (Package) Weight: 112 g [4 oz]
Performance
Auto MDIX: Yes
Bandwidth: 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
Packaging Information
Package Length: 14.4 cm [5.7 in]
Package Height: 30 mm [1.2 in]
Indicators
LED Indicators: 2x Gigabit Link/Activity
Hardware
USB Pass-Through: Yes
Ports: 2
Interface: RJ45 (Gigabit Ethernet)
Industry Standards: IEEE 802.3, 802.3u and 802.3ab
Chipset ID: VIA/VLI - VL812
ASIX - AX88179
Bus Type: USB 3.0
Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Humidity: 20%~80%
Connector(s)
External Ports: RJ-45 Female
Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps) : USB 3.0 A (Fast-Charge, 9 pin)
Performance
Compatible Networks: 10/100/1000 Mbps
Special Notes / Requirements
System and Cable Requirements: Available USB Type-C port
What's in the Box
Included in Package: USB-C to dual Gigabit Ethernet adapter
Performance
Full Duplex Support: Yes
Jumbo Frame Support: 4K max.
Maximum Cable Length: 0.1 m [0.3 ft]
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
Type and Rate: USB 3.0 - 5 Gbit/s
Physical Characteristics
Color: Black
Form Factor: Attached Cable
Material: Plastic
Product Height: 1.6 cm [0.6 in]
Product Length: 75 mm [3 in]
Product Width: 60 mm [2.4 in]
Weight of Product: 54 g [1.9 oz]
Power
Power Source: USB-Powered
Prominence
Description CDW 75 - 1st Line: StarTech.com Dual Port USB C to Gigabit Ethernet Adapter NIC w/ USB A Port
Software
OS Compatibility: Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15 VLAN tagging is currently not supported in macOS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
This item comes with a 24 months warranty
GTIN: 065030862813
Reference ID: 5056599
