StarTech.com PEX2S553LP 2 Port PCI Express Serial Card LP [PEX2S553LP]

3 Reviews

Image 1
Image 2
Image 3
Image 4
Hurry! 5 items left!
$96.68

Collect 96 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

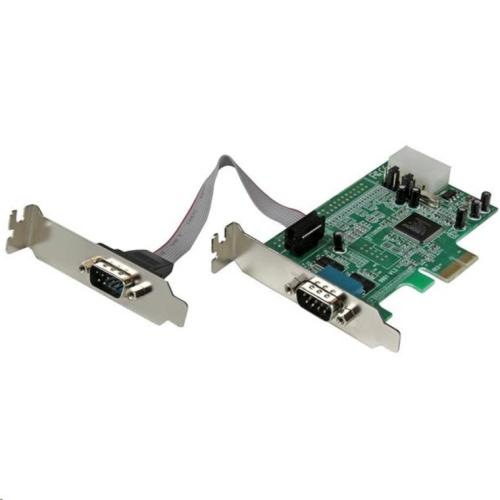

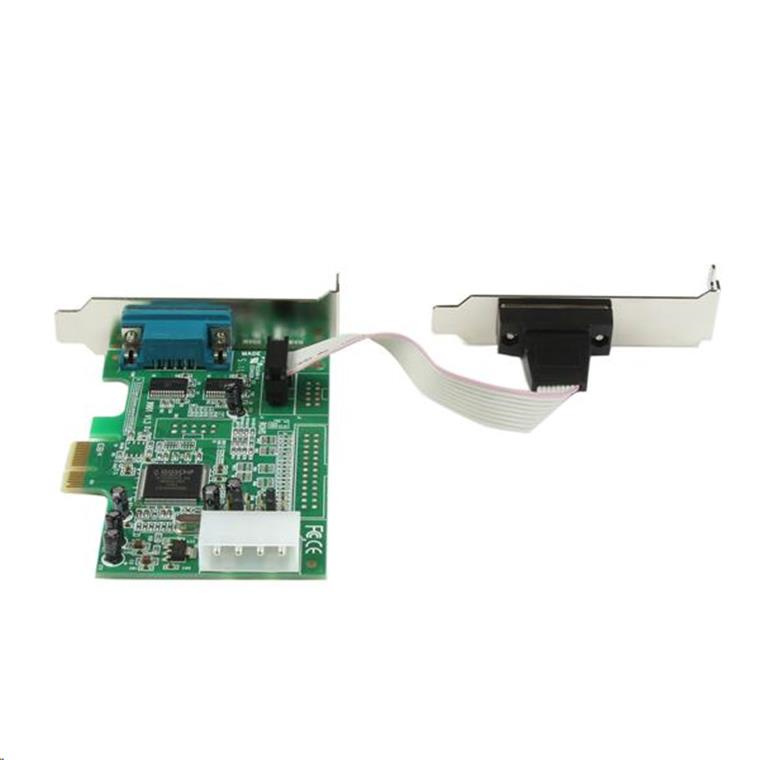

StarTech.com PEX2S553LP 2 Port PCI Express Serial Card LP

2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot. The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor). This product is a replacement for our PEX2S552LP card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance

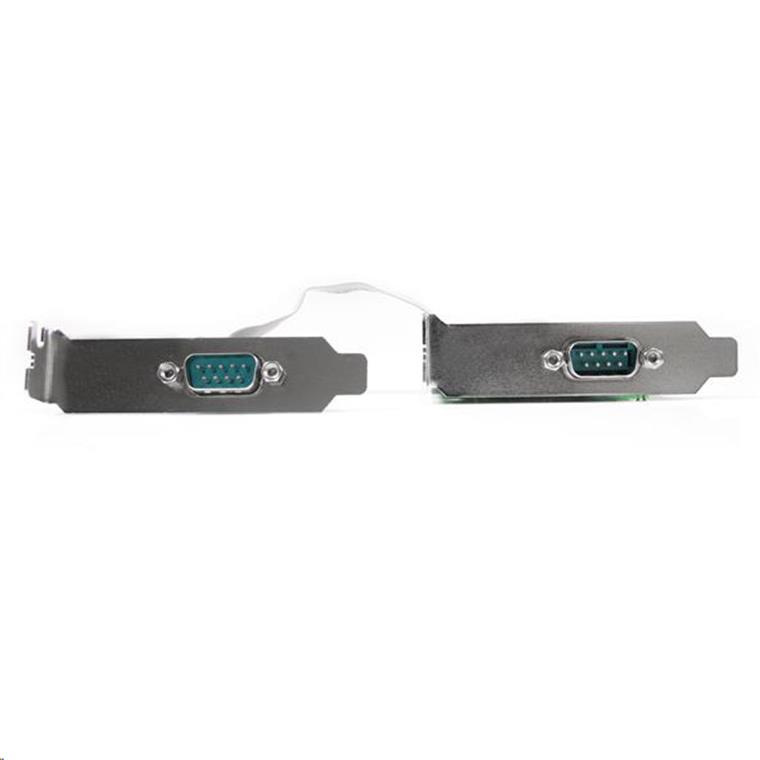

Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility
Easy to install and use with full step-by-step instructions saves time and hassle

Bus Type
PCI Express

Card Type
Low Profile (SP bracket incl.)

Chipset ID
ASIX/MosChip - MCS9922CV-AA

Interface
Serial

Port Style
Integrated on Card

Ports
2

FIFO
128 Bytes

Max Baud Rate
460.8 Kbps

Serial Protocol
RS-232

Connector Type(s)
1 - PCI Express x1 Male

External Ports
2 - DB-9 (9 pin, D-Sub) Male

Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male

OS Compatibility
Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X® 10.4 to 10.10
Linux kernel 2.6.x to 4.4.x LTS Versions only

Humidity
5~85% RH

Operating Temperature
-10°C to 80°C (14°F to 176°F)

Storage Temperature
-20°C to 100°C (-4°F to 212°F)

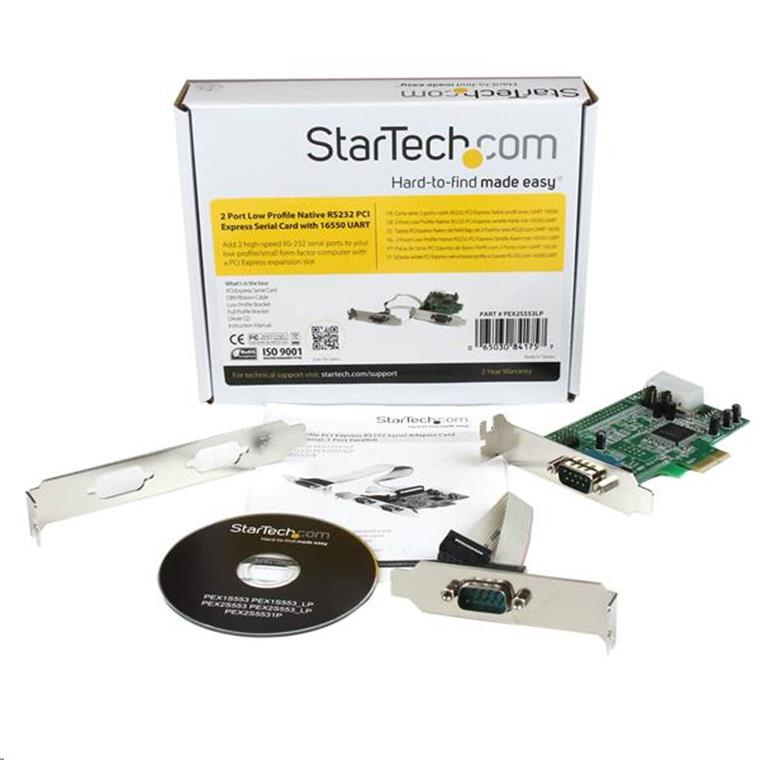

Included in Package
1 - PCI-Express Serial Card
1 - DB9 Ribbon cable
1 - Full Profile Bracket
1 - Low profile bracket
1 - Driver CD
1 - Instruction Manual
- MPN: PEX2S553LP

GTIN: 065030841757
