StarTech.com PEXUSB3S24 2 Port PCIe USB3.0 Card Adapter with UASP [PEXUSB3S24]

2 Reviews

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 17 items left!
$68.20

Collect 68 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

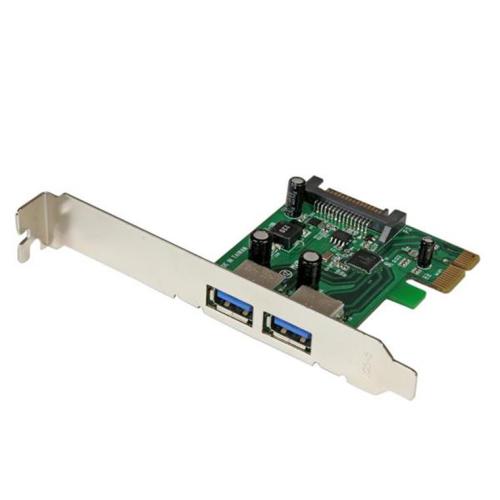

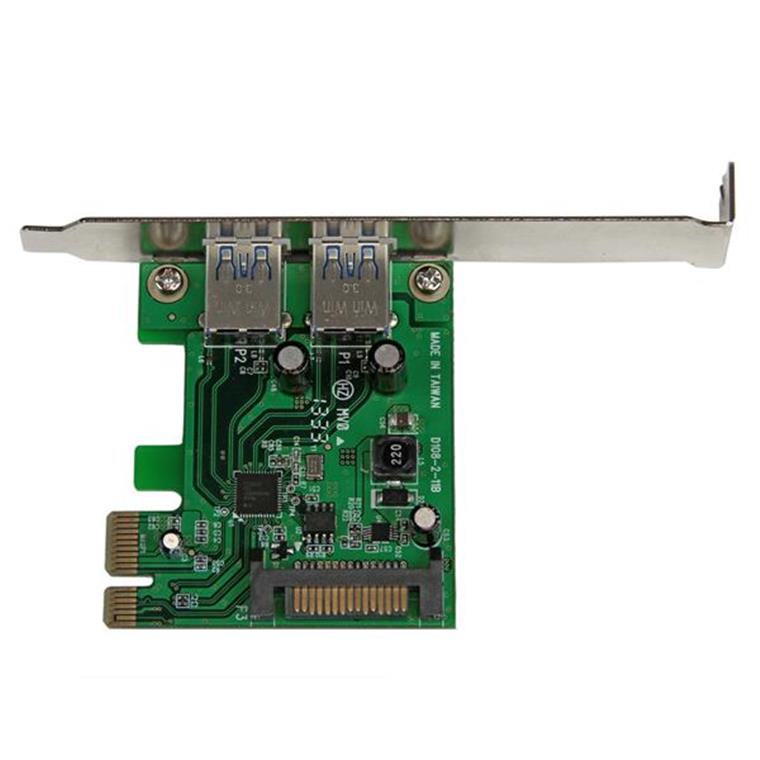

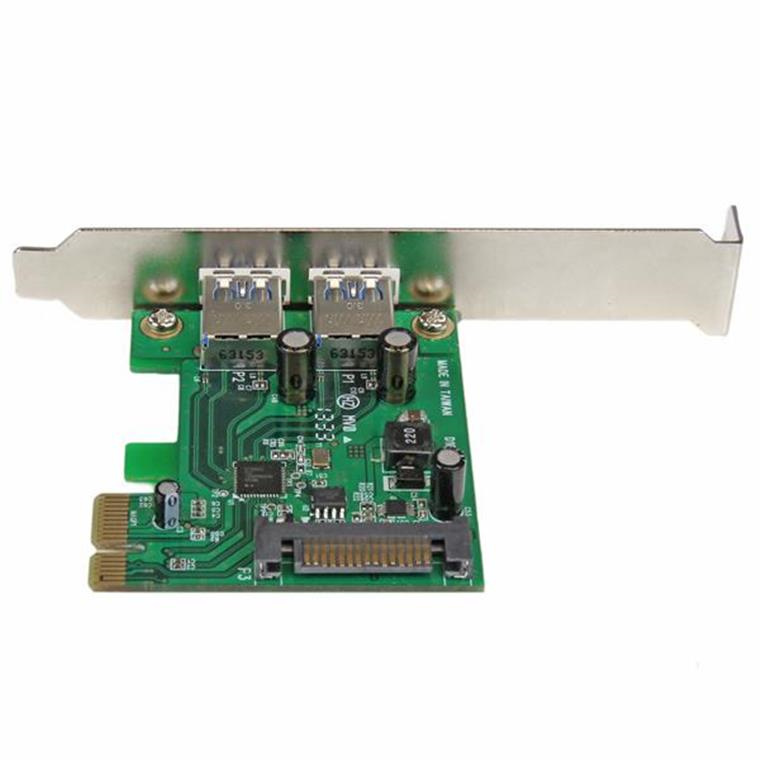

StarTech.com PEXUSB3S24 2 Port PCIe USB3.0 Card Adapter with UASP

The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP
UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Interface
USB 3.0
Port Style
Integrated on Card
Ports
2
Maximum Cable Length
9.8 ft [3 m]
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector Type
1 - PCI Express x1 Male
External Ports
2 - USB Type-A (9 pin) USB 3.0 Female
Internal Ports
1 - SATA Power (15 pin) Plug
OS Compatibility
Windows Vista, 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.4.x LTS versions only
Special Notes / Requirements
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements
Available PCI Express slot
Humidity
20-80% RH
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Dimensions
Height
4.7 in (120 mm)
Length
2.6 in (65 mm)
Width
0.7 in (18 mm)
- MPN: PEXUSB3S24

GTIN: 065030855587
