StarTech.com PEXUSB311AC3 2Port USB-A USB-C USB 3.1 PCI Express Ad [PEXUSB311AC3]

Image 1
Image 2
Image 3
Image 4
Hurry! 5 items left!
$105.21

Collect 105 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout

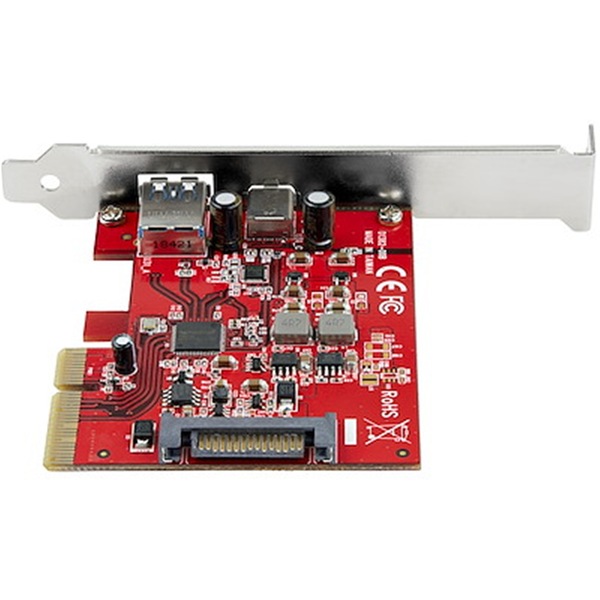

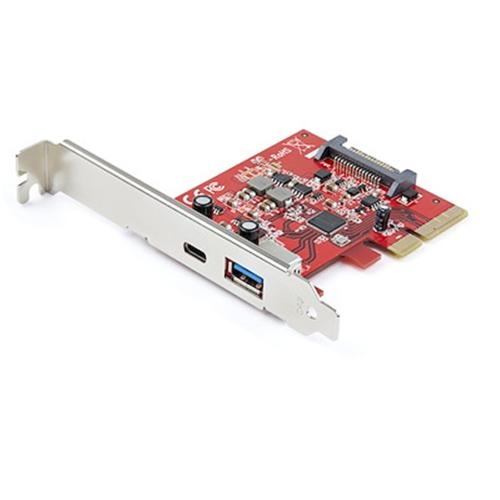

StarTech.com PEXUSB311AC3 2Port USB-A USB-C USB 3.1 PCI Express Ad

This USB 3.1 Gen 2 card lets you add one USB-C™ port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.1 Gen 2 (also known as USB 3.2 Gen 2x1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.

Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.

USB 3.1 Gen 2 Performance
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices.

With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.

Compatible with Older USB Devices
Connecting older peripherals isn't a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C™ port using a variety of USB-C cables and adapters.

Easy Installation
The USB 3.1 card is compatible with a broad range of Windows®, macOS and Linux® operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.

Faster Transfer Speeds with UASP
The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, macOS (10.8 or above), and Linux®.

In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.1 Gen 2 at peak performance.

At the same peak in testing, UASP also shows an 80% reduction in required processor resources.

The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications
Warranty Information
Warranty
2 Years
Connector(s)
1 - Connector Type(s)
PCI Express x4
1 - Internal Ports
SATA Power (15 pin)
1 - External Ports
USB Type-C (24 pin) USB 3.1 (10Gbps)
USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
20~80% RH
Hardware
Ports
2
Interface
PCI Express x4
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
USB 3.2 Specifications
PCI Express Base 3.0 Specifications
Intel xHCI Specification Rev. 1.1
Chipset ID
ASMedia - ASM3142
Packaging Information
Package Height
1.2 in [30.0 mm]
Package Length
5.6 in [14.2 cm]
Shipping (Package) Weight
4.3 oz [123.0 g]
Package Width
6.7 in [17.0 cm]
Performance
Maximum Data Transfer Rate
10Gbps
UASP Support
Yes
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
MTBF
2,684,396 Hours
Physical Characteristics
Color
Red
Product Height
0.7 in [19.0 mm]
Product Length
4.7 in [12.0 cm]
Weight of Product
1.7 oz [48.0 g]
Product Width
3.2 in [81.0 mm]
Material
Steel
Software
OS Compatibility
Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2016, 2019 Linux® 3.5 to 4.11.x macOS 11.0, 10.15, 10.14, 10.13
Microsoft WHQL Certified
Yes
Special Notes / Requirements
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Optional SATA power connector
Note
The maximum throughput of this card is limited by the bus interface
The card's USB-C port is a standard data throughput port. It does not support DP Alt Mode or USB Power Delivery

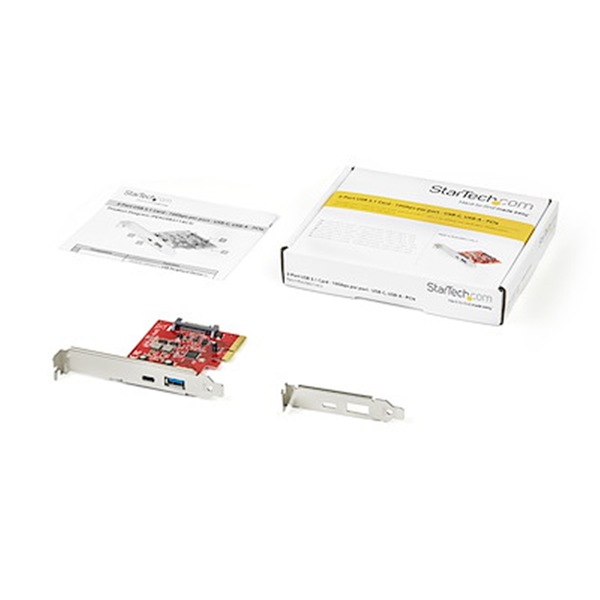

What's in the Box
1 - Included in Package
USB 3.1 Card
Full Profile Bracket (Installed)
Low Profile Bracket
Quick-Start Guide
- MPN: PEXUSB311AC3

GTIN: 065030887083
