Startech Serial Parallel Combo Adapter Plug In Card
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 79 Everyday Rewards points
Dispatch in 24-48 hours
Collect 79 Everyday Rewards points
Dispatch in 24-48 hours

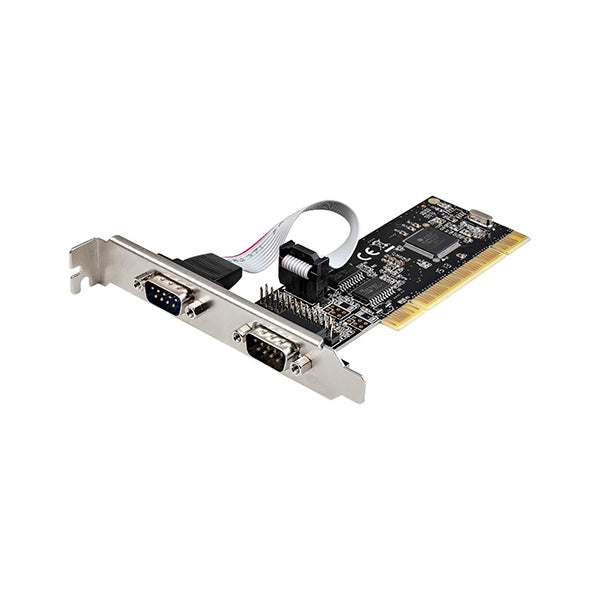

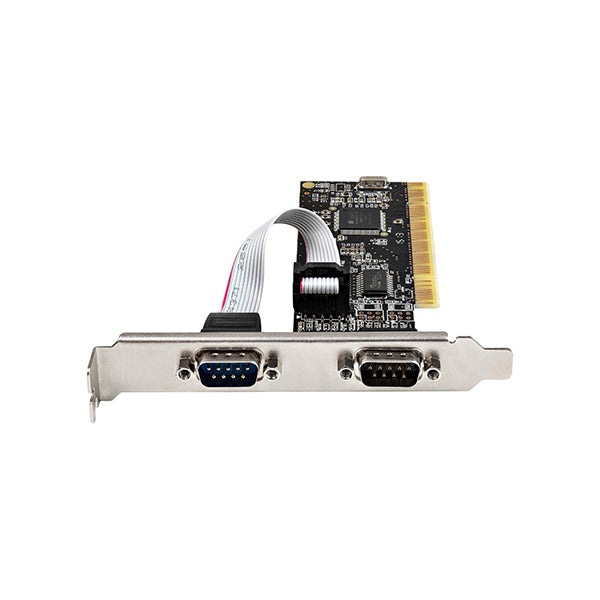

STARTECH.COM SERIAL/PARALLEL COMBO ADAPTER - PLUG-IN CARD
FEATURES
This PCI 1x Parallel and 2x Serial Combo Card installs into a single PCI slot in your computer (occupying 2 to 3 expansion slots, depending on profile), and adds a DB25 IEEE 1284 parallel port and two DB9 RS 232 serial ports to your system.
Adds an LPT Parallel Port
The controller card features an Asix MCS9865 chip and enables you to connect a DB25 parallel device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The parallel (LPT) port supports SPP/Byte/Nibble/ECP/EPP modes and IEEE 1284 for speeds up to 1.5Mbps.
Adds a COM Serial Port
The Asix MCS9865 chip also enables you to connect two DB9 devices using the same controller card, compatible with industry standard 16C550 UART. The serial ports are ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) ports support bi-directional RS232 speeds up to 115.2Kbps per port, available 256 byte FIFO buffer & 9th data bit.
Wide Installation Compatibility

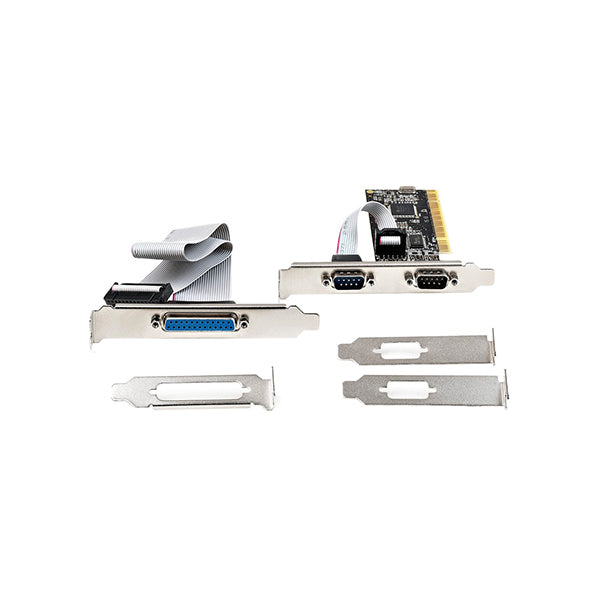

With broad OS support, including for Windows (7 and up), and Linux (2.6.x to 5.x LTS versions only), this PCI serial/parallel card is easy to integrate into mixed environments. The card comes pre-configured with 2x full-profile brackets, and includes optional 3x low-profile brackets, so installation is easy regardless of the case form factor.
SPECIFICATIONS
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 4
Number of Solid State Drive Installed: No
Host Interface: USB 3.1 Type C
Drive Interface: SATA/600
Wireless LAN: No
UASP Support: Yes
Number of Total Expansion Bays: 4
Number of 2.5"/3.5" Bays: 4
Hot Swappable Bays: Yes
Form Factor: External
Height: 86.4 mm
Width: 170.2 mm
Depth: 292.1 mm
Cooling Fan: Yes
Product Color: Black
Product Material: Plastic
PACKAGE CONTENTS
1 x Startech Serial Parallel Combo Adapter Plug In Card
SKU: PCI2S1P2
