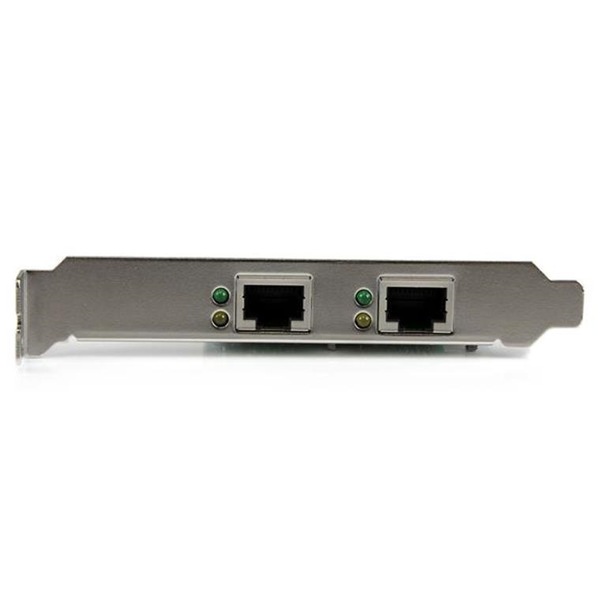

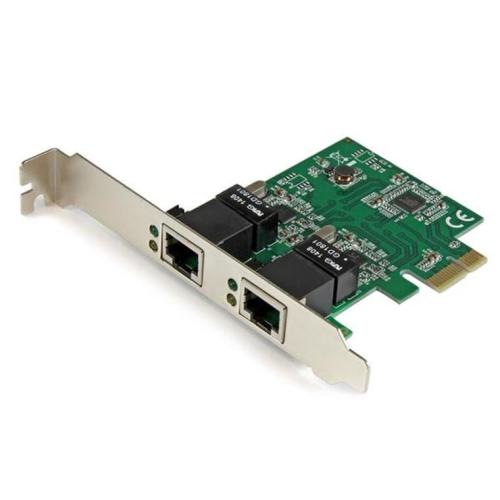

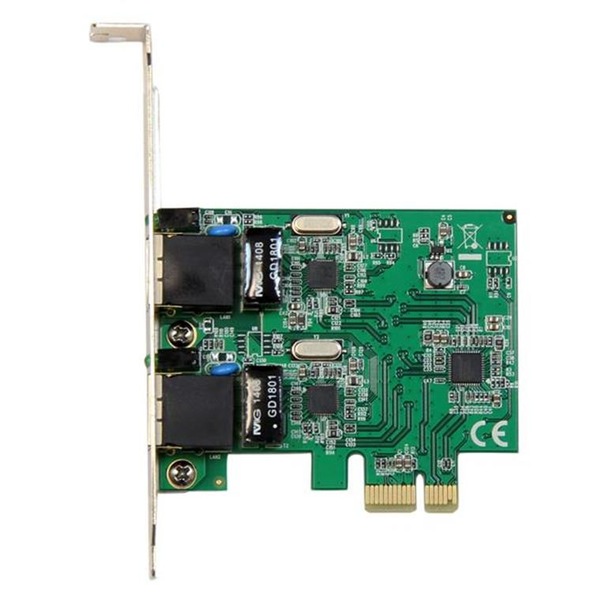

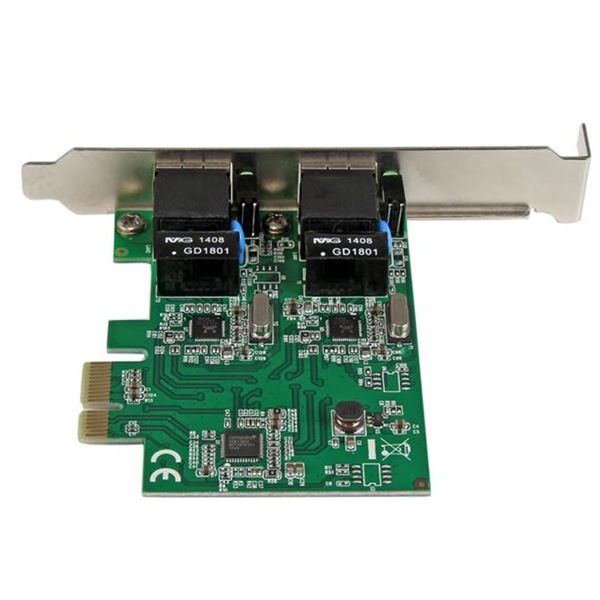

StarTech.com ST1000SPEXD4 2 Port Gigabit PCI Express Network Card

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.

Bus Type
PCI Express
Interface
RJ45 (Gigabit Ethernet)
Port Style
Integrated on Card
Ports
2
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Maximum Data Transfer Rate
2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Supported Protocols
IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
Connector Type
1 - PCI Express x1 Male
External Ports
2 - RJ-45 Female
OS Compatibility
Windows 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.4 to 10.9
Linux 2.4.x to 4.4.x LTS Versions only
System and Cable Requirements
Available PCI Express slot
LED Indicators
2 - Green - Link/Activity
2 - Yellow - Gigabit Mode
Humidity
10~90% RH
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
0°C to 100°C (32°F to 212°F)
Dimensions
Height
4.7 in (120 mm)
Length
3.6 in (92.6 mm)
Width
0.7 in (18 mm)
- MPN: ST1000SPEXD4

GTIN: 065030859356
