StarTech USB 3 NIC Gigabit Ethernet LAN Adapter
-Full Gigabit bandwidth support over USB 3.0

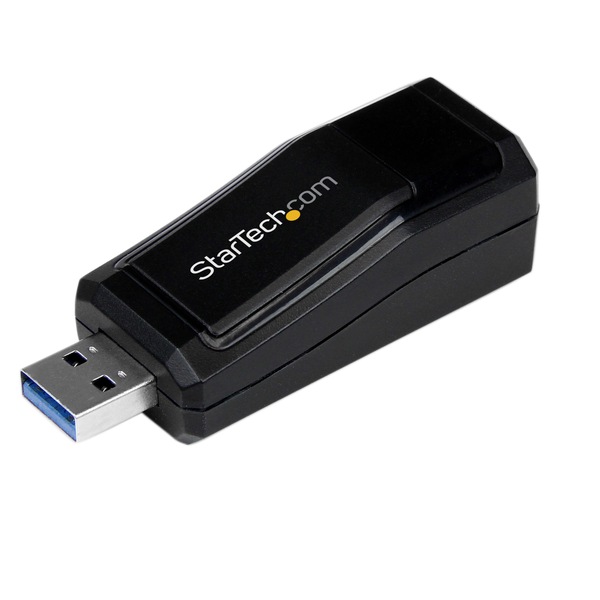

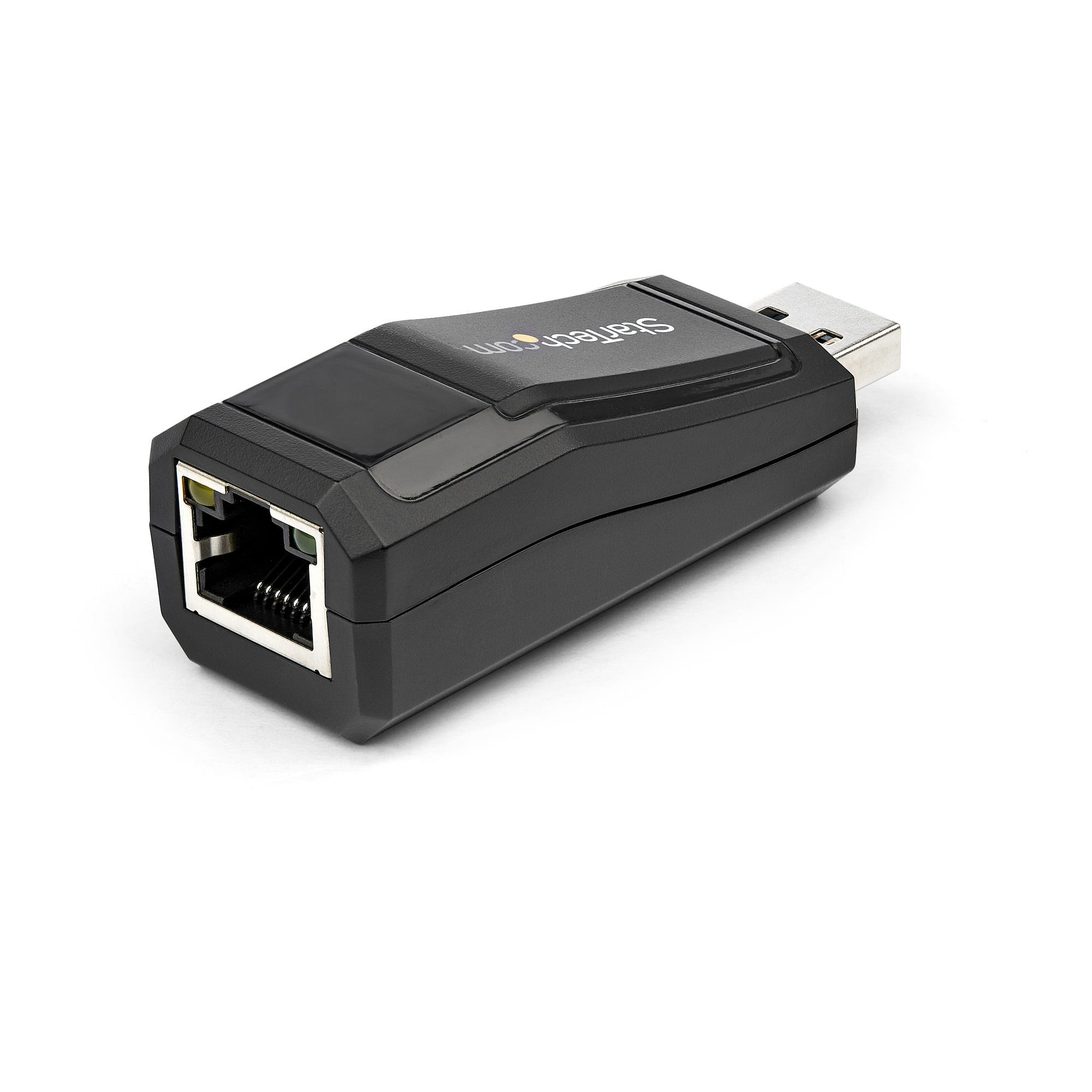

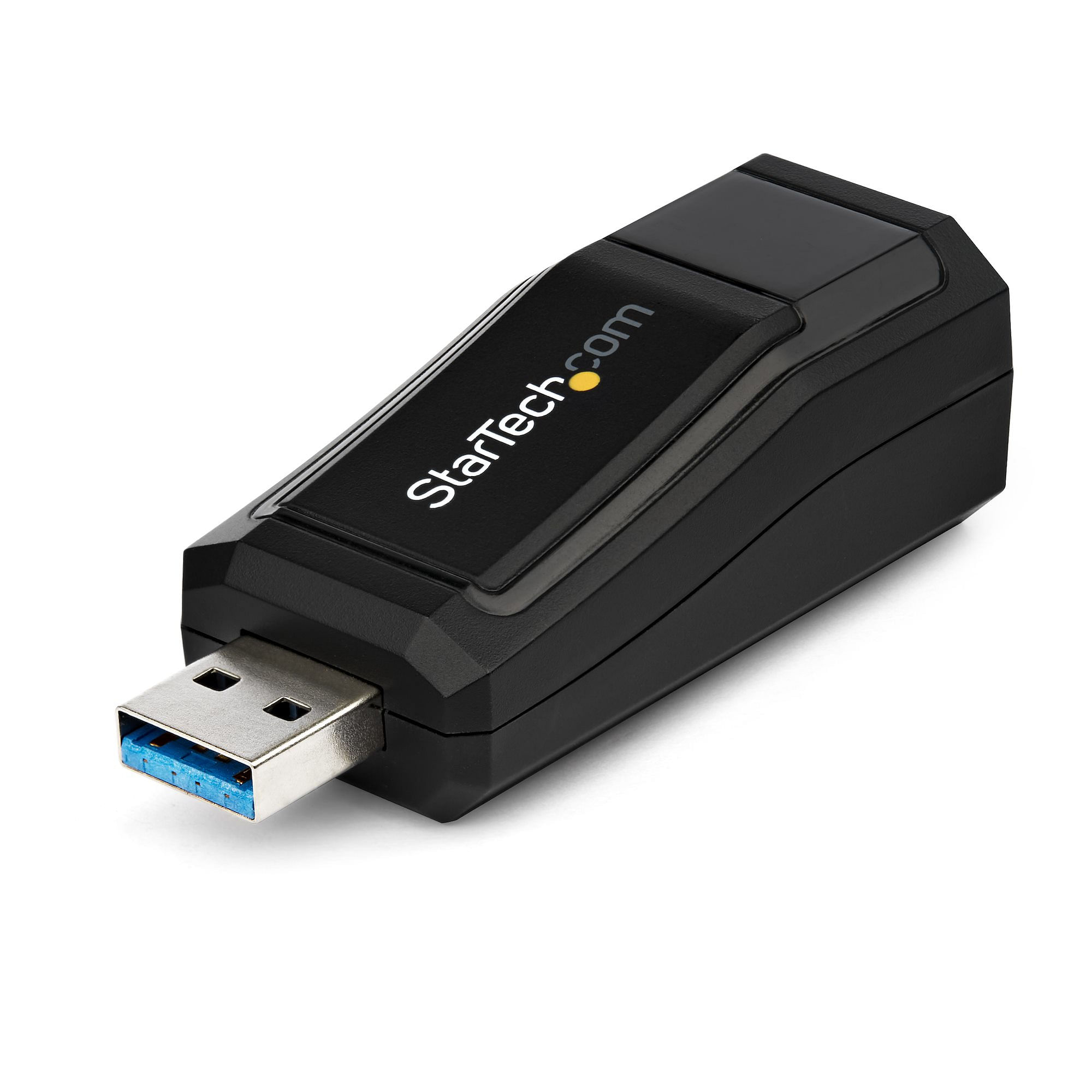

The USB31000NDS USB 3.0 to Gigabit Ethernet Network Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.

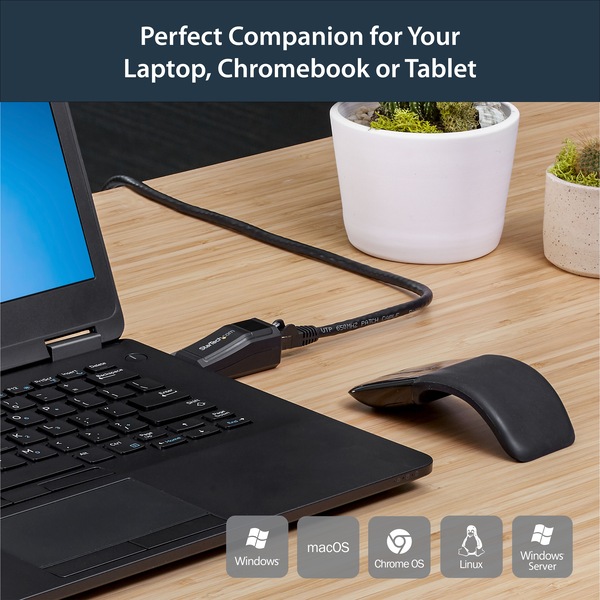

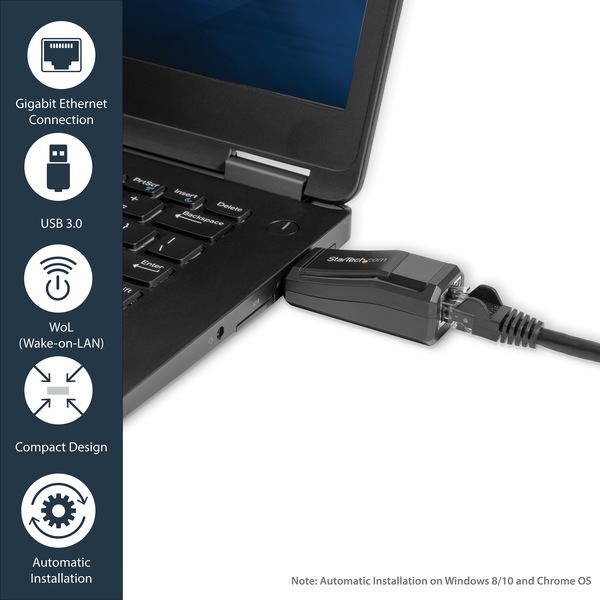

This compact USB 3.0 NIC works with 10/100/1000 Mbps networks and offers backward compatibility with USB 2.0/1.x computer systems (speed limited by USB bus), making it an ideal portable replacement LAN adapter or laptop accessory. Support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), provides versatile Gigabit network performance for home or business use.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connector(s) | |
Connector Type(s) | RJ-45 Female |
USB Type-A (9 pin) USB 3.0 Male | |
Environmental | |
Humidity | 10~90% RH |
Operating Temperature | 0?C to 50?C (32?F to 122?F) |
Storage Temperature | 0?C to 70?C (32?F to 158?F) |
Hardware | |
Bus Type | USB 3.0 |
Chipset ID | ASIX - AX88179 |
Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
Interface | RJ45 (Gigabit Ethernet) |
Ports | 1 |
Indicators | |

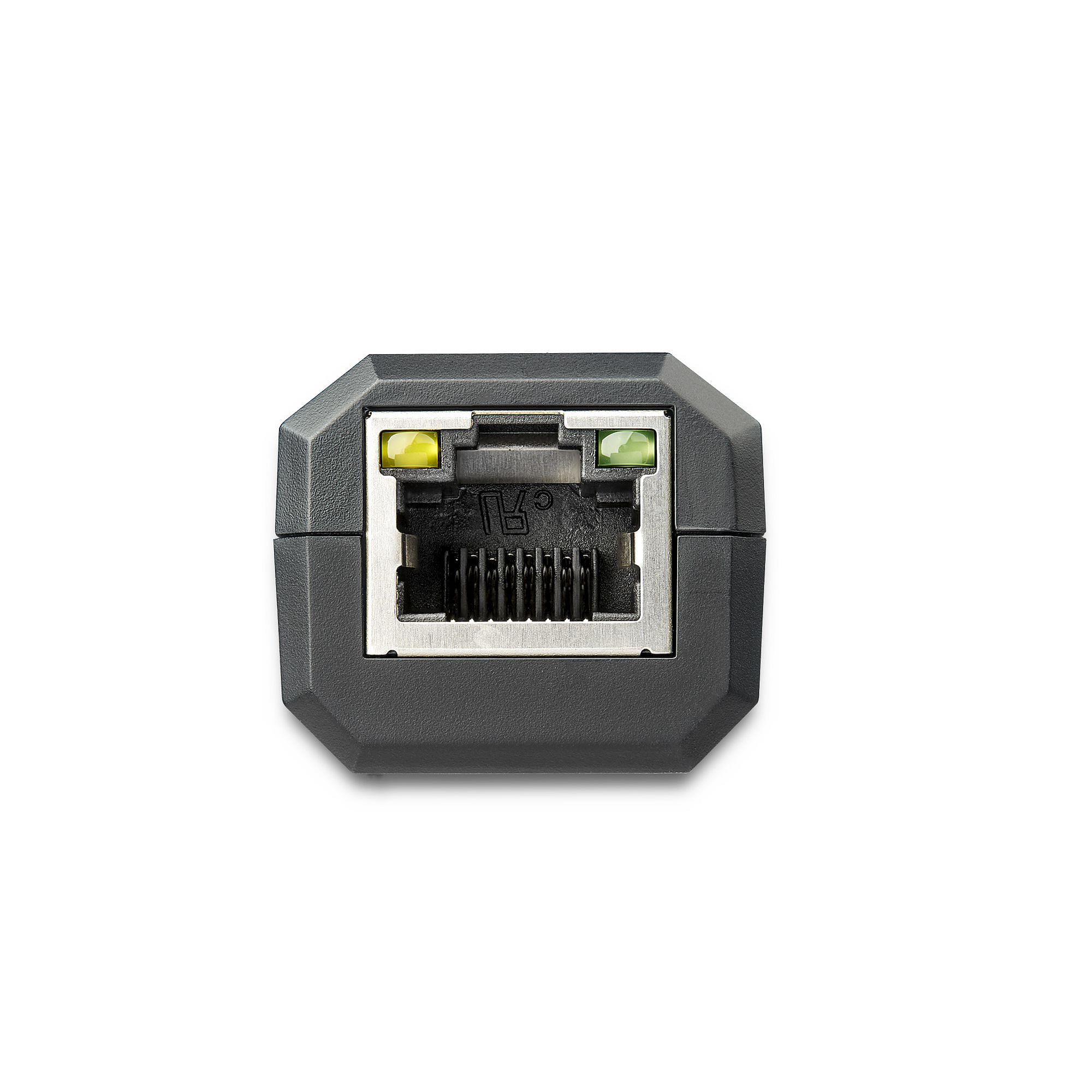

LED Indicators | Activity (Yellow) |
Link (Green) | |
Packaging Information | |
Shipping (Package) Weight | 100 g [3.5 oz] |
Performance | |
Auto MDIX | Yes |
Compatible Networks | 10/100/1000 Mbps |
Full Duplex Support | Yes |
Jumbo Frame Support | 4K max. |
Max Distance | 100 m / 330 ft |
Maximum Data Transfer Rate | 1Gbps (Gigabit Ethernet) |
Type and Rate | USB 3.0 - 5 Gbit/s |
Physical Characteristics | |
Color | Black |
Enclosure Type | Plastic |
Form Factor | Dongle |

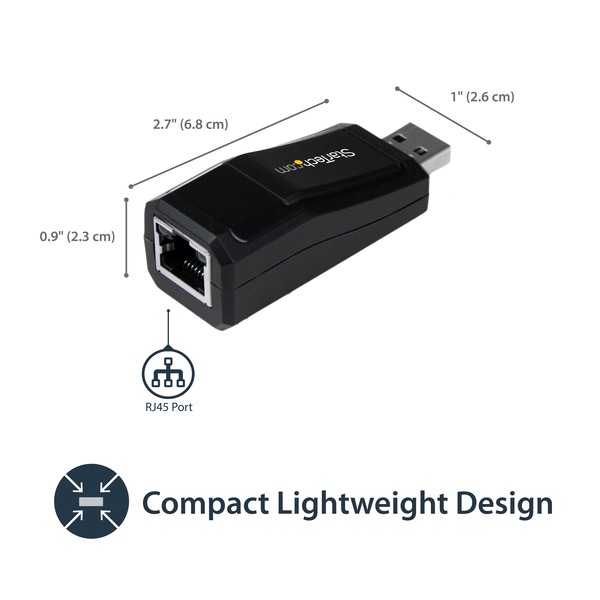

Product Height | 26 mm [1 in] |
Product Length | 68 mm [2.7 in] |
Product Weight | 21 g [0.7 oz] |
Product Width | 22.6 mm [0.9 in] |
Power | |
Power Source | USB-Powered |
Software | |
OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows? Server 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.12 VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 to 4.4.x LTS Versions only |
Special Notes / Requirements | |
System and Cable Requirements | Host computer system with an available USB 3.0/2.0 port |

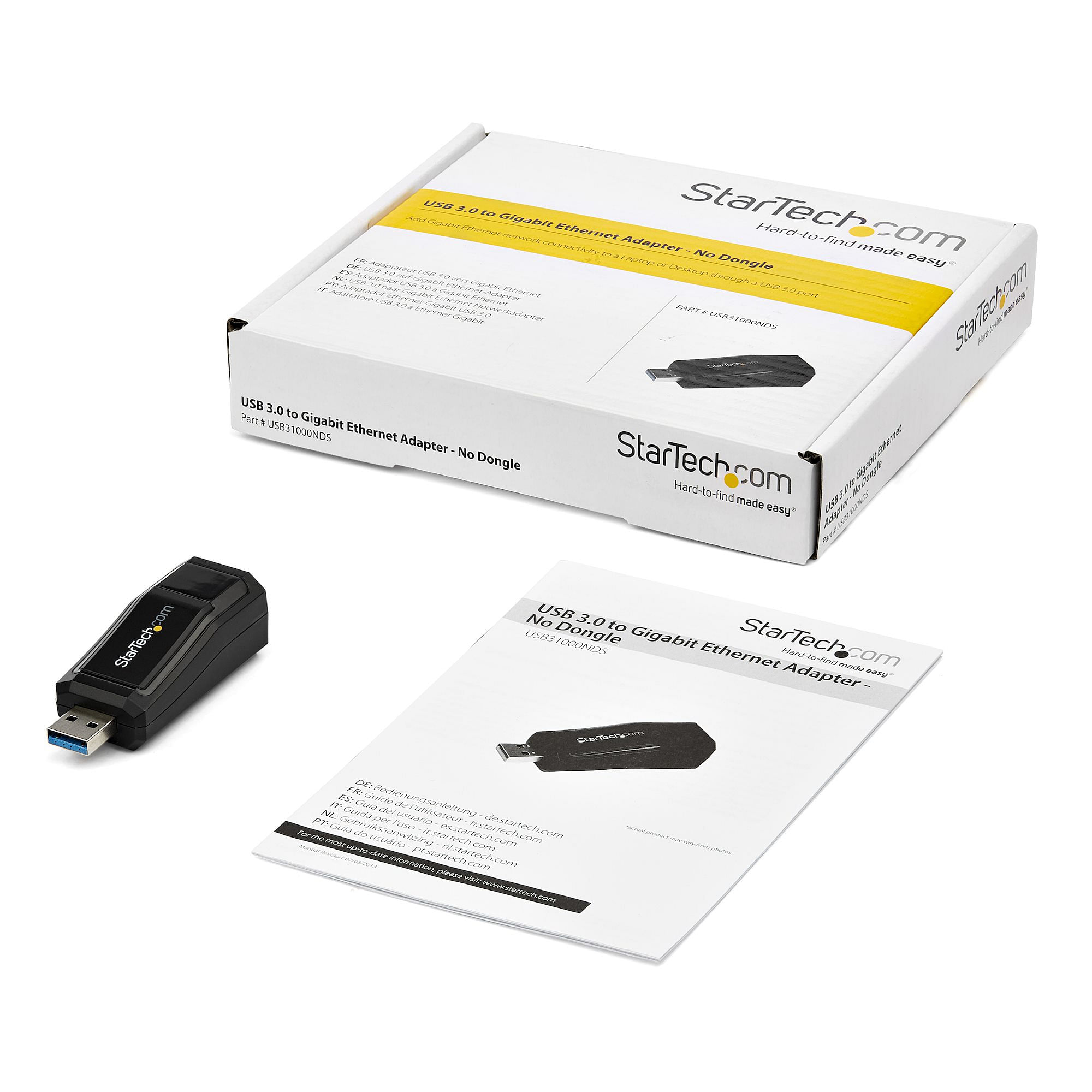

What's in the Box | |
Included in Package | Driver CD |
Instruction Manual | |
USB 3.0 to Gigabit Ethernet Adapter |
Specification | Value |
---|---|
MPN | USB31000NDS |
Manufacturer Part Number | USB31000NDS |
Product Condition | Brand New/Unused |
SKU | 216209 |
