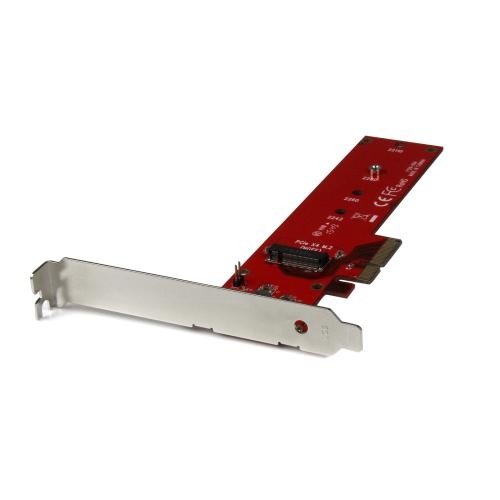

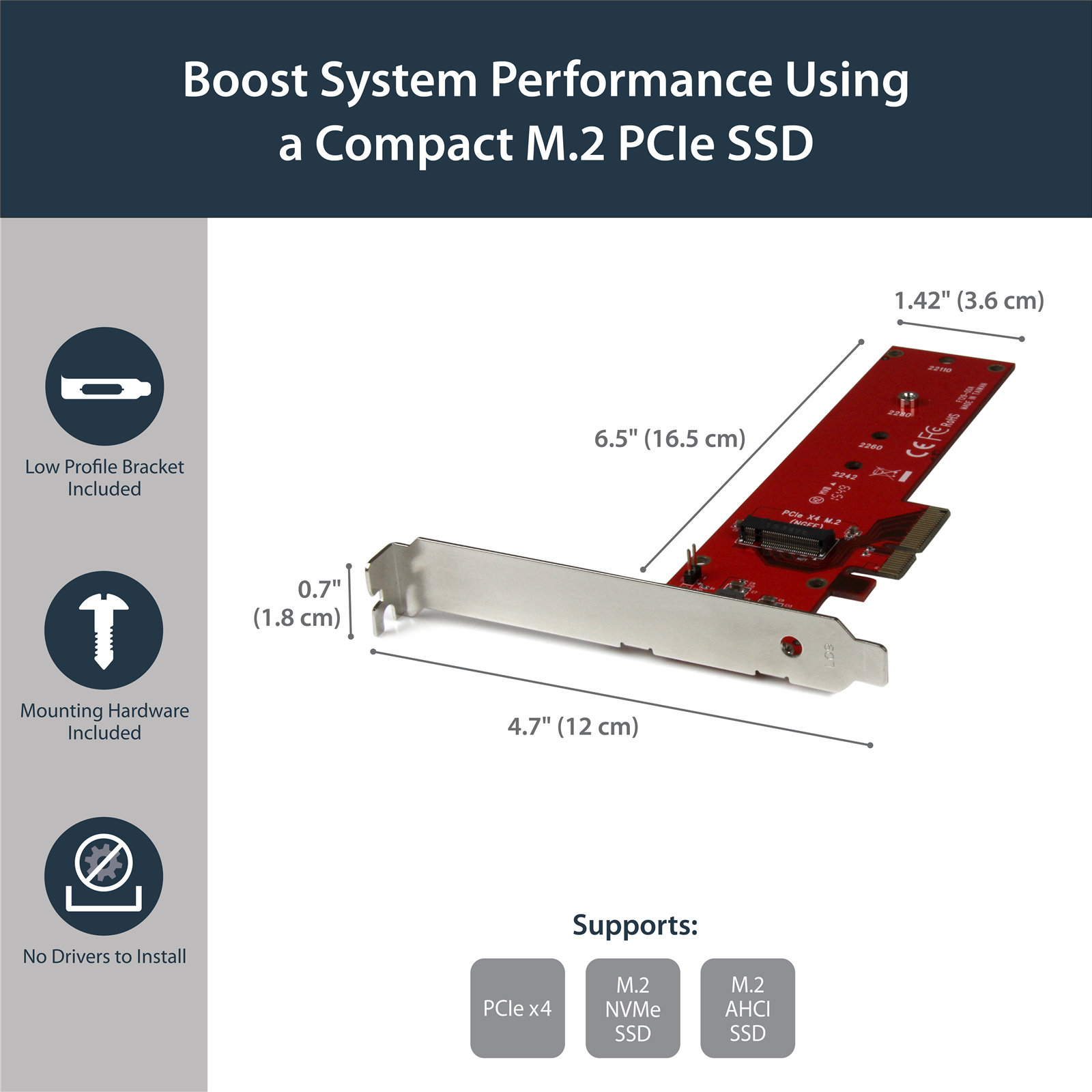

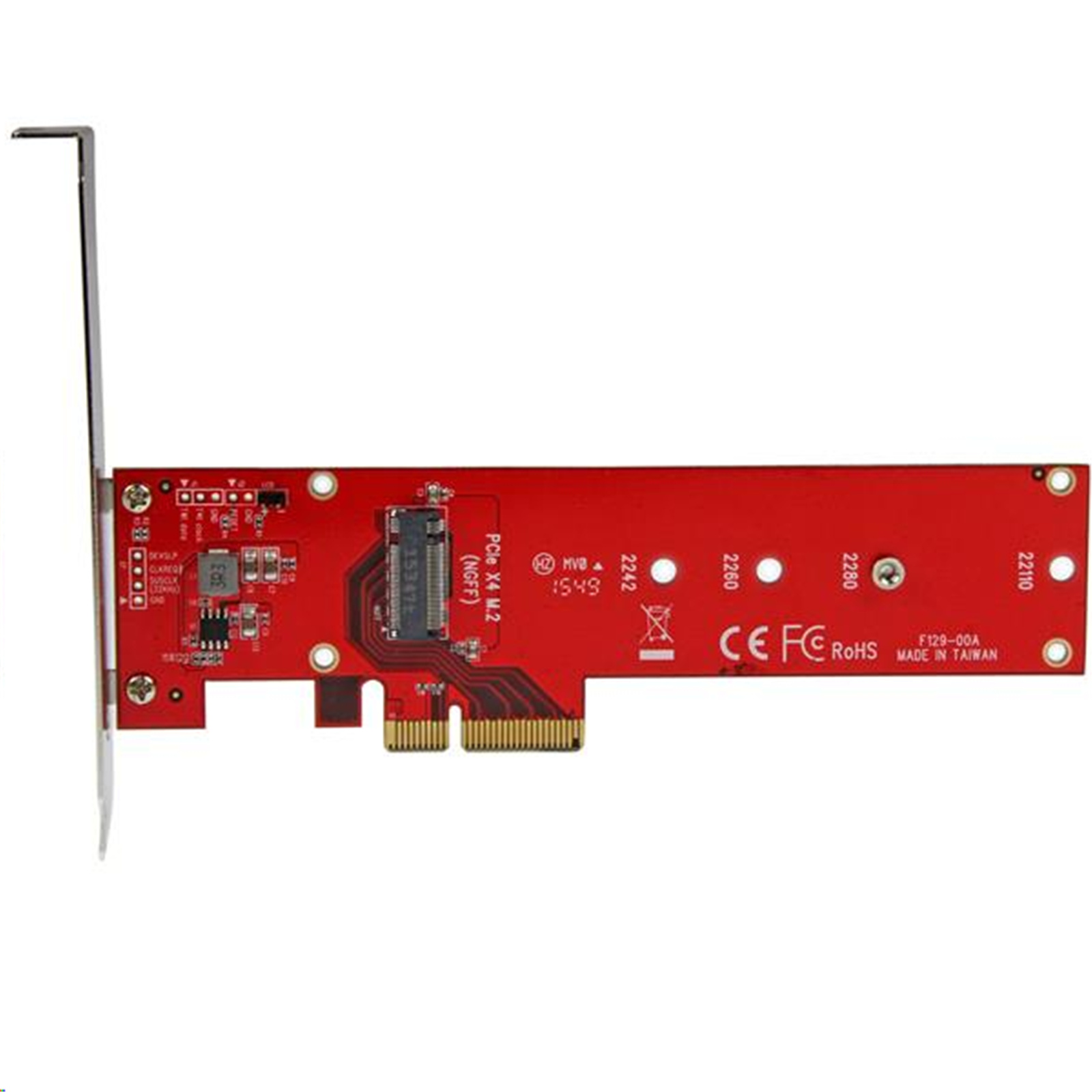

StarTech.com PEX4M2E1 x4 PCI Express to M.2 PCIe SSD Adapter

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe M.2 SSDs

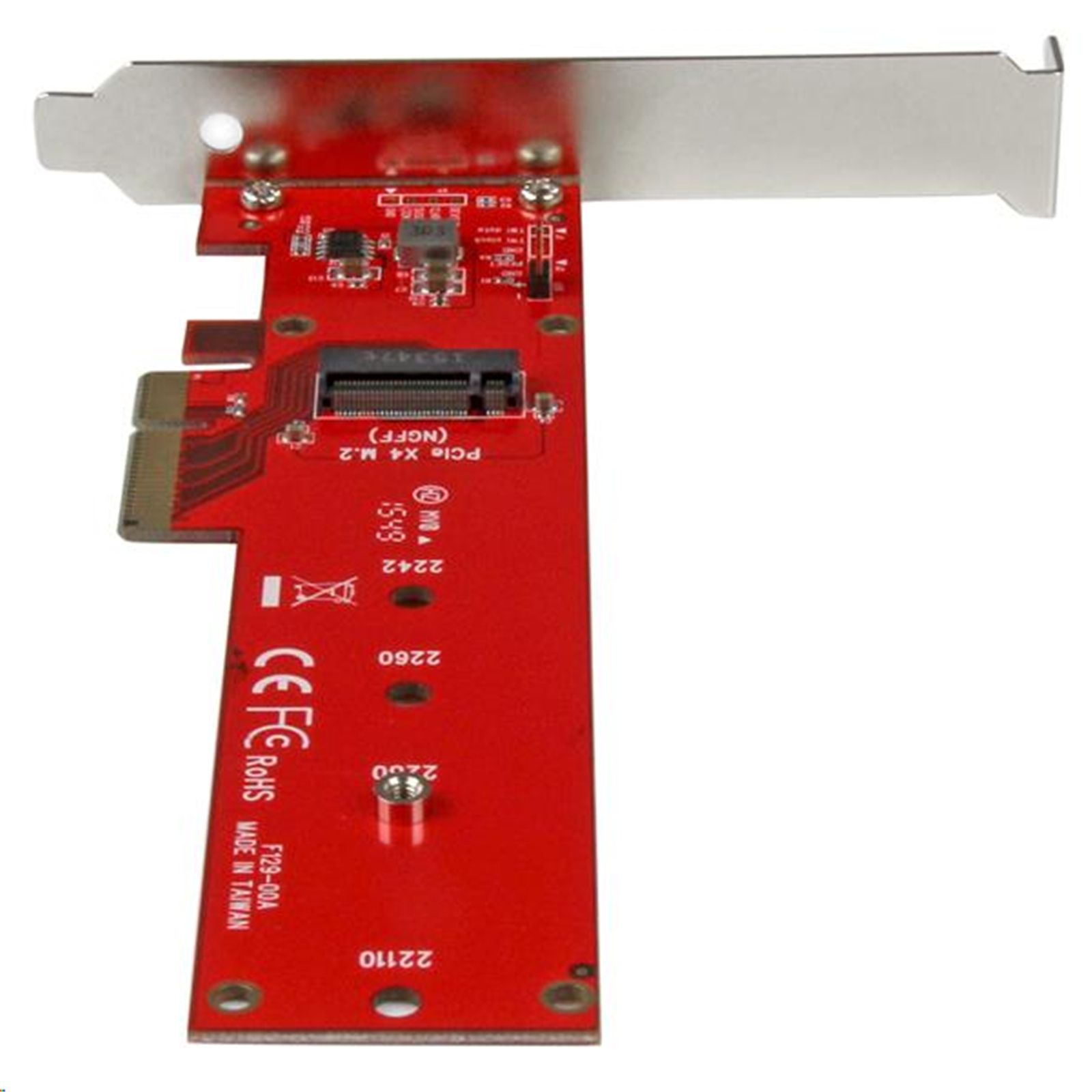

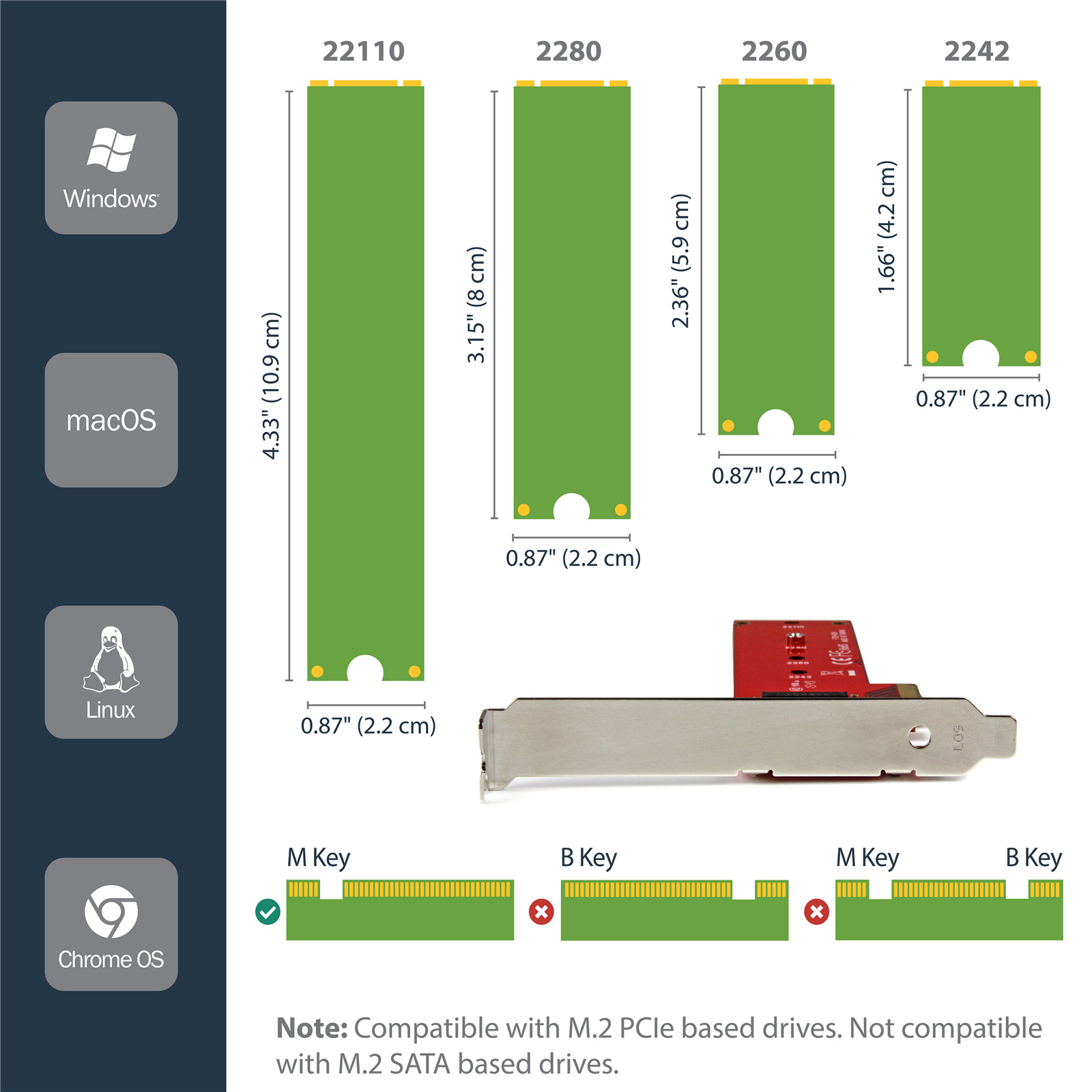

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

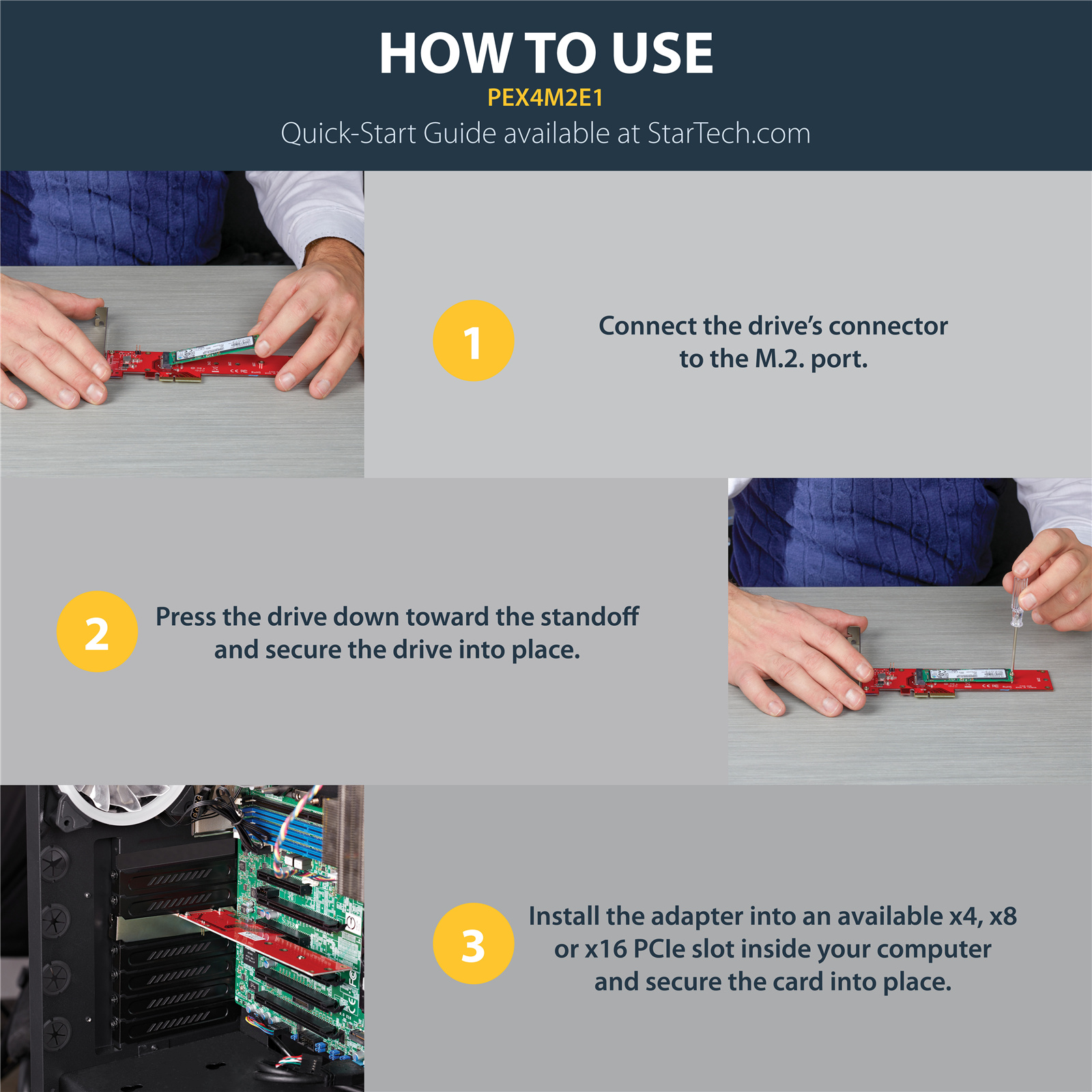

Easy to install

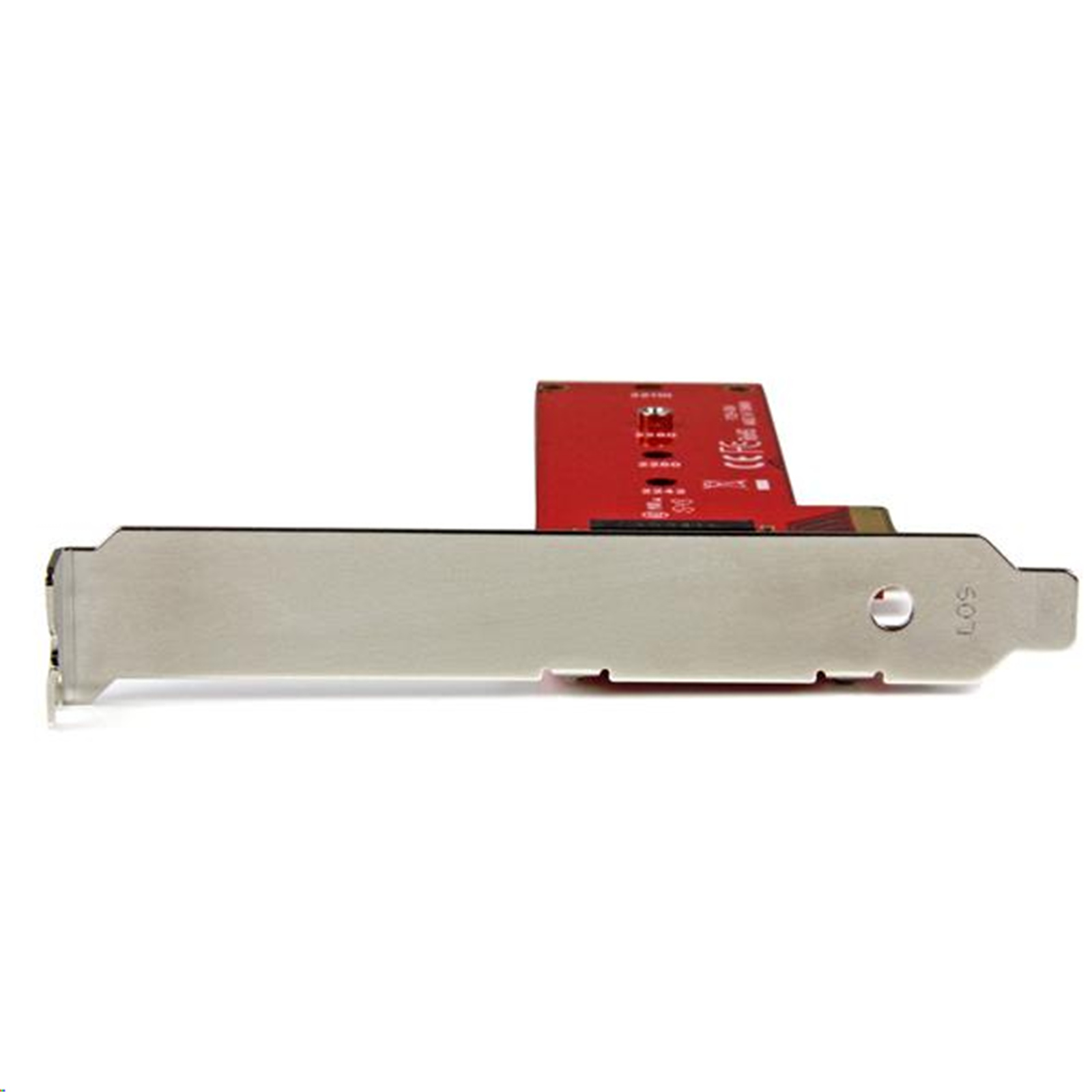

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers. The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware

Bus Type
PCI Express
Compatible Drive Types
M.2 (NGFF, M-Key, PCIe x4)
Drive Installation
Fixed
Drive Size
22m - M.2 NGFF
Interface
PCI Express
Number of Drives
1
Supported Drive Height(s)
2242
2260
2280
22110

Performance

Hot Swap Capability No

Connector(s)

Drive Connectors
1 - M.2 (NGFF, M-Key, PCIe x4)
Host Connectors
1 - PCI Express x4 Male

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Pin header on board for drive LED connection

Environmental

Humidity
15% ~ 90% RH
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)

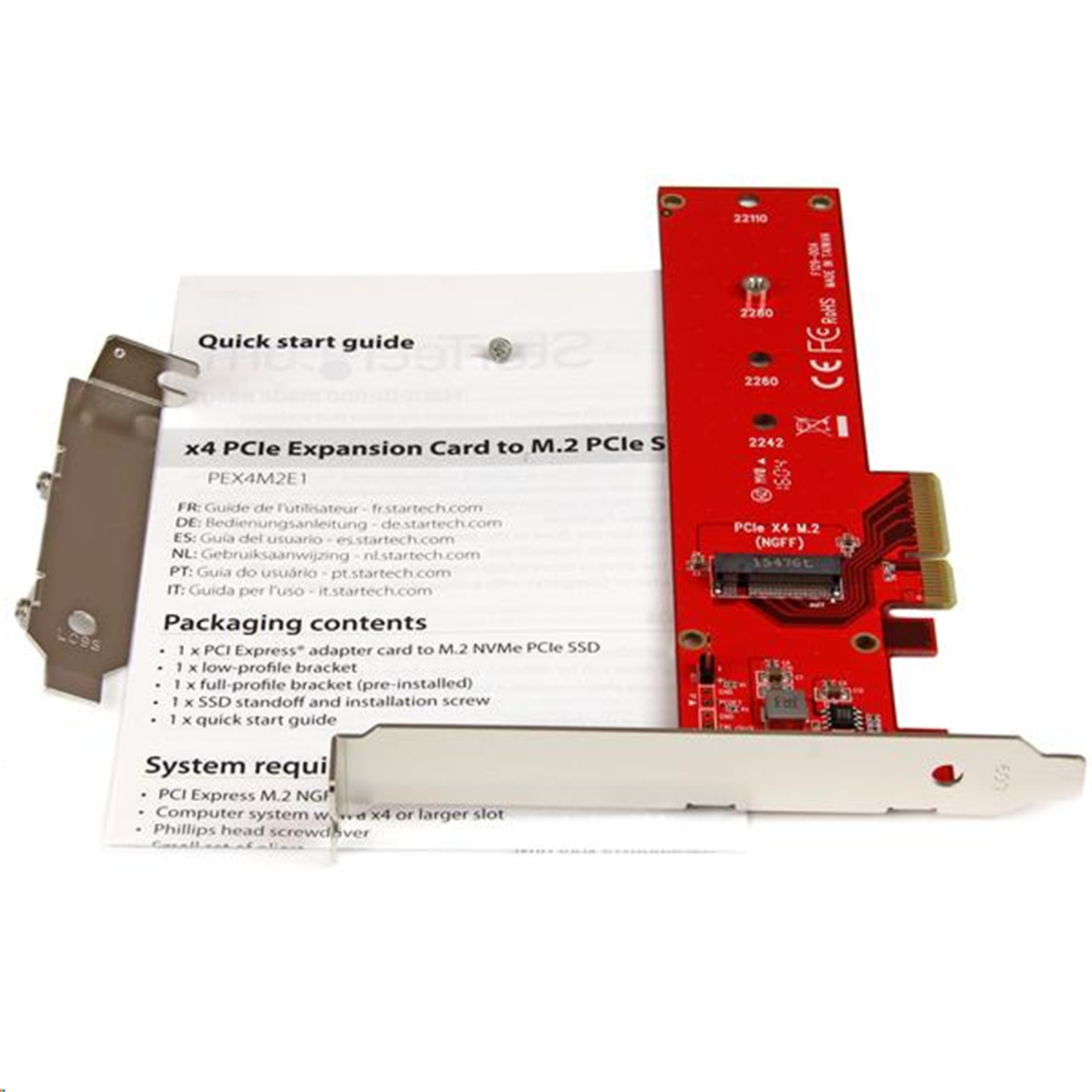

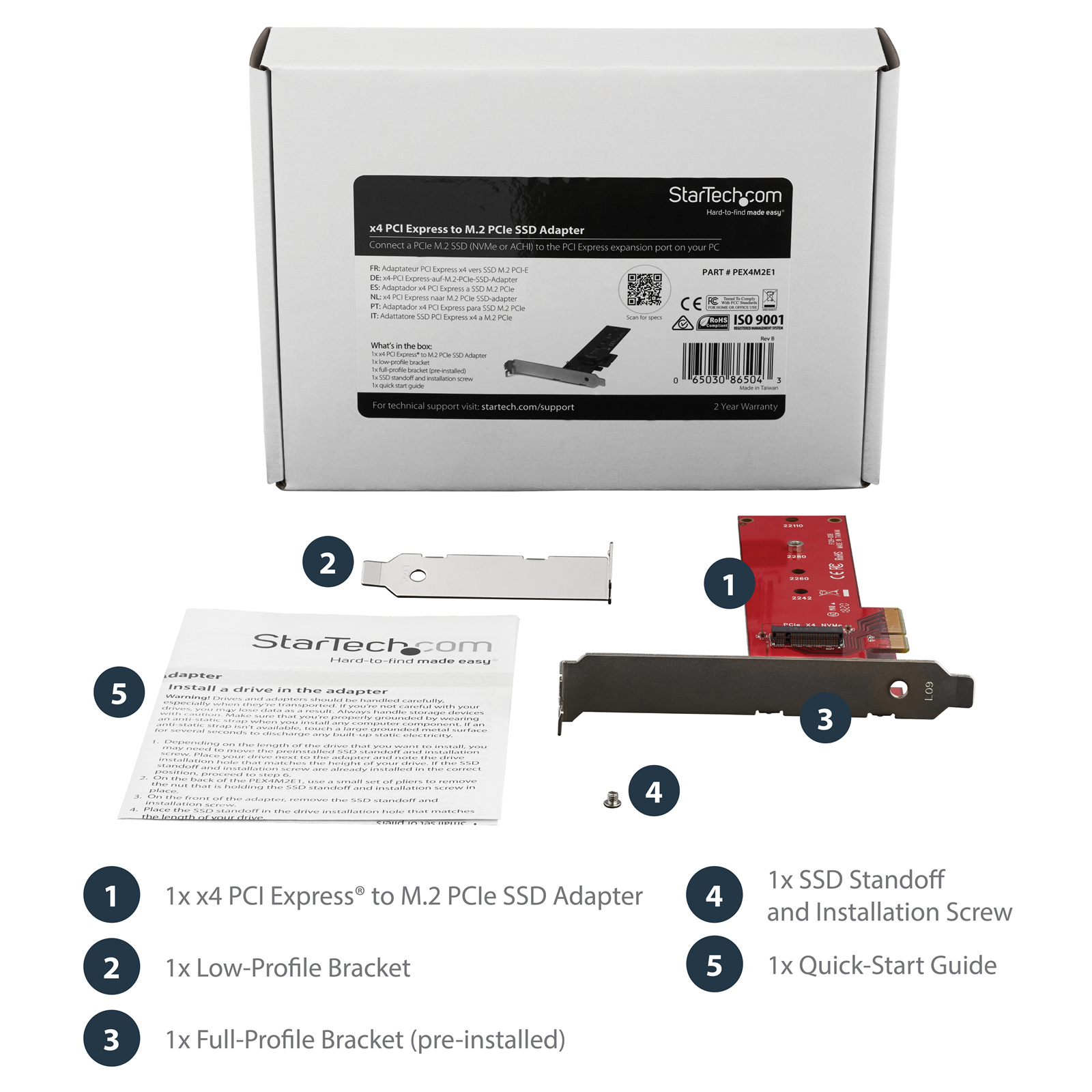

Included in Package
1 - x4 PCI Express® to M.2 PCIe SSD Adapter
1 - low-profile bracket
1 - full-profile bracket (pre-installed)
1 - SSD standoff and installation screw
1 - quick start guide
- MPN: PEX4M2E1

GTIN: 065030865043

Reference ID: 5362881
