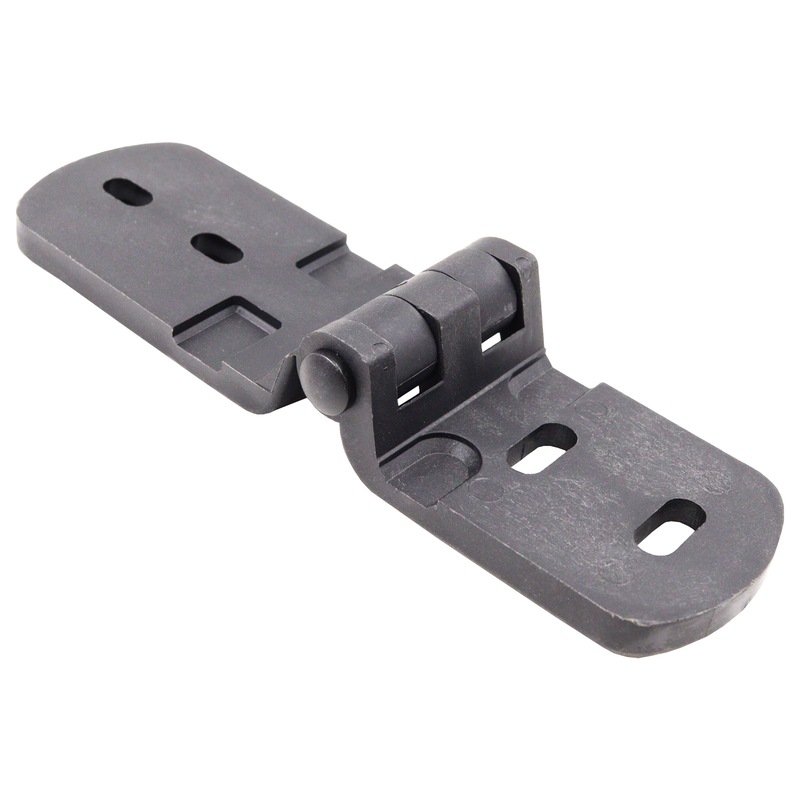

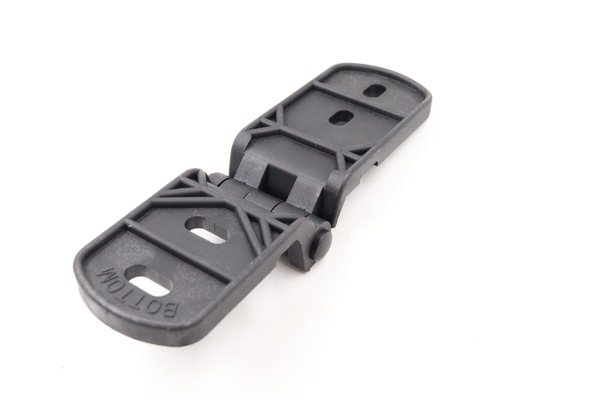

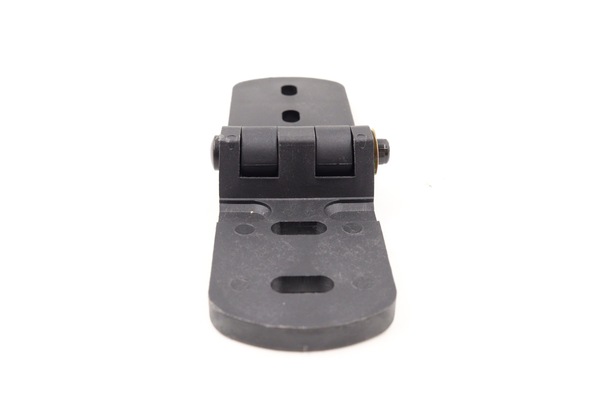

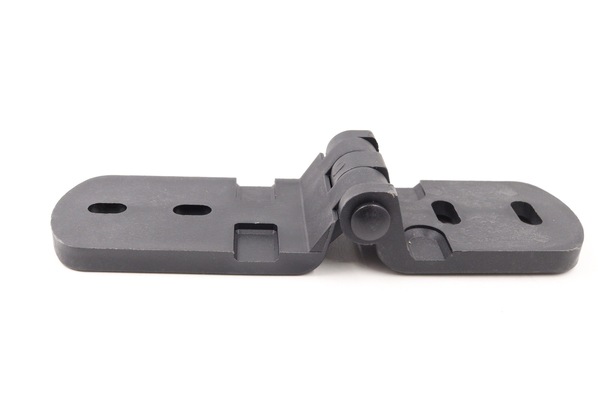

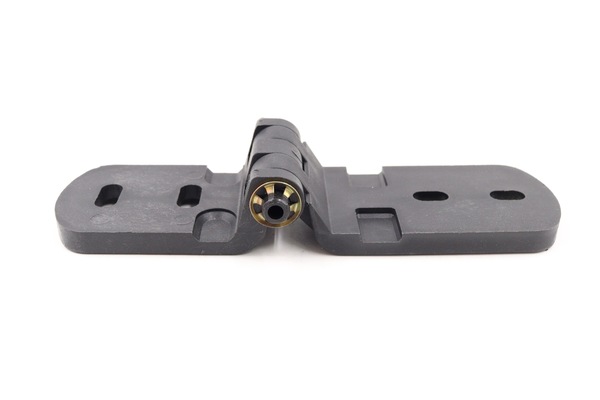

Steel-Line Garage Sectional/Panellift Door Nylon Hinge Middle

These Steel-Line middle hinges are used to join panels on each of the internal vertical struts. These are the hinges that do not have rollers.

Replacement hinge to suit earlier Steel-Line sectional garage doors.

These hinges are embossed with a number 1, 2, 3 or 4 according to which panel they came from for the immediate left and right hinges. There are also middle hinges which may be embossed with very small numbers but are not relevant to the hinge.

Dimensions: 160mm long x 46mm wide

Please select carefully as hinges look the same initially however the hole centers for the roller shaft vary by 5-6mm between each panel so fitting the incorrect hinge will cause your door to bind or scrape along the face.
