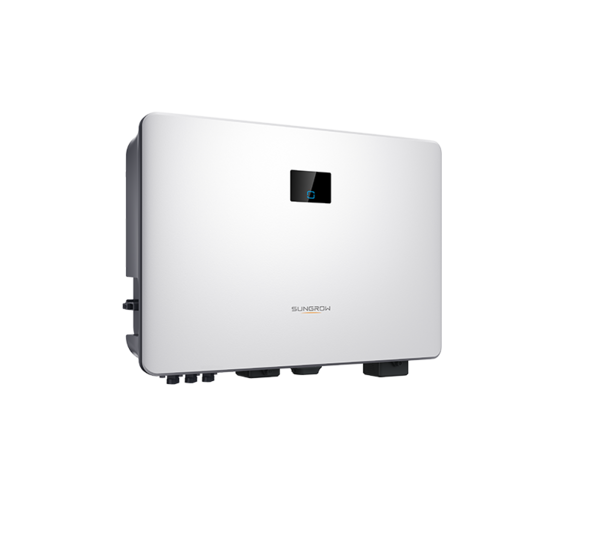

SUNGROW SG8.0RS-ADA | 8000W Multi-MPPT String Inverter for 600 Vdc
The Sungrow SG8.0RS-ADA is an 8000W multi-MPPT string inverter designed for residential solar systems. This inverter supports a 600 Vdc system and is compatible with high-power and bifacial PV modules. It offers a lower startup voltage and a wider MPPT range, ensuring high energy yield and system reliability.
Equipped with advanced safety features such as integrated arc fault circuit interrupter and built-in Type II DC&AC SPD, the SG8.0RS-ADA guarantees safe operation. The user-friendly design includes plug-and-play installation, smart IV curve scanning, real-time data monitoring, and a compact, lightweight build for easy setup.
Features:
- High Yield: Supports high power PV modules and bifacial modules with a wide MPPT voltage range (40V-560V).
- Smart Management: Features smart IV curve scanning, 24/7 live monitoring, and over-the-air firmware updates.
- Robust Safety: Includes integrated arc fault circuit interrupter, Type II DC&AC SPD, and C5 corrosion protection rating.
- User-Friendly: Compact design with plug-and-play installation, one-click access to iSolarCloud monitoring platform, and optimized heat dissipation design.
- Efficient Performance: Max efficiency of 97.8% and European efficiency of 97.3%.
FAQ:
Q: What is the maximum efficiency of the Sungrow SG8.0RS-ADA inverter?
A: The maximum efficiency is 97.8%.
Q: Can the SG8.0RS-ADA be monitored remotely?
A: Yes, it offers real-time data monitoring and over-the-air firmware updates for remote management.
Q: What safety features are included in the SG8.0RS-ADA?
A: The inverter includes an integrated arc fault circuit interrupter, built-in Type II DC&AC SPD, and a C5 corrosion protection rating.
Q: What is the MPPT voltage range for the SG8.0RS-ADA?
A: The MPPT voltage range is 40V to 560V, making it compatible with various PV modules.
Specifications:
| Specification | Details |
|---|---|
| Input (DC) | |
| Recommended max. PV input power | 12 kWp |
| Max. PV input voltage | 600 V |
| Min. operating PV voltage / Start-up input voltage | 40 V / 50 V |
| Rated PV input voltage | 360 V |
| MPP voltage range | 40 – 560 V |
| No. of independent MPP inputs | 3 |
| Default No. of PV strings per MPPT | 1 |
| Max. PV input current | 48A (16A/16A/16A) |
| Max. DC short-circuit current | 60A (20A/20A/20A) |
| Output (AC) | |
| Rated AC output power | 8000W |
| Max. AC Output power | 8000W |
| Rated AC output current (at 230V) | 36.4A |
| Max. AC output current | 34.8A |
| Rated AC voltage | 220V/230V/240V |
| AC voltage range | 154-276V |
| Rated grid frequency / Grid frequency range | 50 Hz / 60 Hz, 45 – 55 Hz / 55 – 65 Hz |
| Harmonic (THD) | < 3 % (at rated power) |
| Power factor at rated power / Adjustable power factor | > 0.99 / 0.8 leading – 0.8 lagging |
| Feed-in phases / Connection phases | 1/1 |
| Efficiency | |
| Max. efficiency | 97.8% |
| European efficiency | 96.9% |
| Protection | |
| Grid monitoring | Yes |
| DC reverse polarity protection | Yes |
| AC short-circuit protection | Yes |
| Leakage current protection | Yes |
| Surge Protection | DC type II / AC type II |
| Ground Fault Monitoring | Yes |
| DC switch | Yes |
| PV string current monitoring | Yes |
| Arc fault circuit interrupter (AFCI) | Yes |
| PID Zero Function | Yes |
| DC Terminal Protective Cover | Yes |
| General Data | |
| Dimensions (W*H*D) | 490 * 340 * 170 mm |
| Weight | 19 kg |
| Mounting method | Wall-mounting bracket |
| Topology | Transformerless |
| Degree of protection/Corrosion | IP65, C5 |
| Operating ambient temperature range | -25 to 60 ℃ |
| Allowable relative humidity range (non-condensing) | 0 – 100 % |
| Cooling method | Natural cooling |
| Max. operating altitude | 4000 m |
| Communication | |
| Display | LED digital display & LED indicator |
| Communication | Ethernet / WLAN / RS485 / DI (Ripple control & DRM) |
| DC connection type | MC4 (Max. 6 mm² ) |
| AC connection type | Plug and play connector (Max. 6 mm² ) |
| Grid compliance | IEC 62109-1/2, AS/NZS 4777.2:2020 |
| Grid Support | Active & reactive power control and power ramp rate control |
Warranty starts from Invoice Date
This warranty offers a combined coverage of 10 years, divided into two phases:
First 5 Years: During this period, you are entitled to a full product replacement in case of any issues or defects. This means if your product malfunctions within the first 5 years, you'll receive a brand-new replacement.
Following 5 Years: After the initial 5 years, the warranty continues for an additional 5 years, but it shifts to covering parts only. In this phase, if any product components need replacement or repair, the warranty will cover the cost of those parts.
This comprehensive warranty (Warranty Method: Return to Sparky Direct) ensures both the longevity and performance of your product, offering you peace of mind for a full decade.Â
