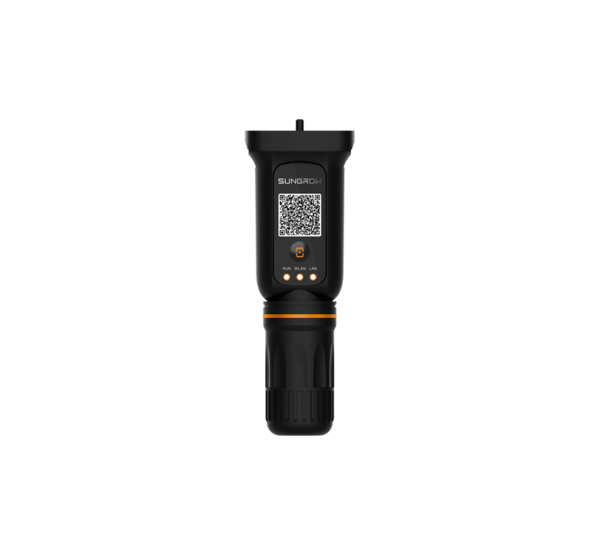

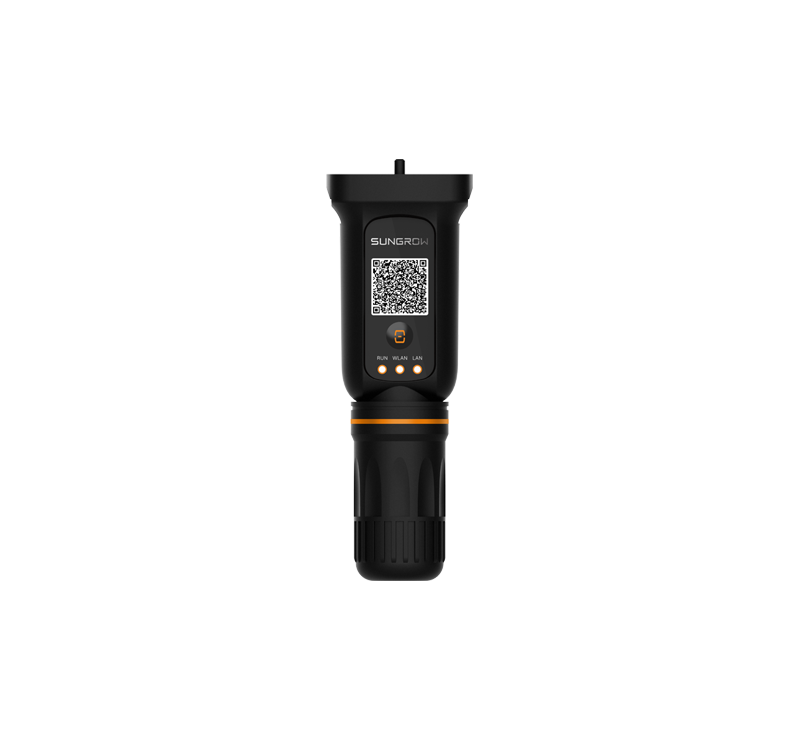

SUNGROW WINET-S | Sungrow WiNet-S Communication Module

The Sungrow WiNet-S Communication Module is an advanced solution that seamlessly connects your solar system to the digital world. This module supports WLAN and Ethernet connectivity, providing flexible options for your network preferences. With effortless configuration via DHCP and a plug-and-play design, the WiNet-S module ensures a quick and easy installation process.

It offers real-time monitoring with data intervals measured in seconds, informing you about your solar energy production and consumption. The smart IV curve diagnosis feature also helps pinpoint and swiftly address system irregularities. Built to withstand harsh environments, this module boasts an IP66 rating and can operate in a wide temperature range.

Features:

Flexible Connectivity: Choose between WLAN or Ethernet for seamless solar system integration.
Effortless Configuration: Automatic network setup with DHCP, eliminating the need for manual configuration.
Quick Installation: Plug-and-play design for easy setup.
Real-time Monitoring: Provides data at intervals measured in seconds for up-to-date information.
Smart IV Curve Diagnosis: Quickly identifies and resolves system irregularities.
Remote Control: Local and remote parameter settings and firmware updates.
Data Protection: Password protection and encrypted data transmission ensure data security.
Rugged Design: IP66 rating and wide temperature range make it suitable for outdoor use.
Energy Efficiency: Low power consumption.

FAQ:

Q: What is the purpose of the Sungrow WiNet-S Communication Module?
A: The WiNet-S module serves as the bridge between your solar system and your network. It lets you monitor and control your solar energy production and consumption in real-time.

Q: How does the module ensure data security?
A: The module features password protection and encrypted data transmission, ensuring that your solar energy data remains secure and confidential.

Q: Can I configure the module to my preferred network?
A: Absolutely. The module offers flexible compatibility with plant networking, allowing you to connect to your preferred network effortlessly.

Specifications:

Specification	Details
Type designation	WiNet-S
Communication
Max. number of devices	1
LED display	LED * 3
Communication Mode
Internet communication	Channel * 1, 10/100Mbps self-adaption, Communication distance ≤100m
WLAN communication	802.11 b/g, IEEE802.11n HT20@2.4GHz, IEEE802.11n HT40@2.4GHz
Power Supply
DC input	5 VDC, 2.1 A
Power consumption	≤5 W
Ambient conditions
Operating Temperature	-30 °C to 60 °C
Relative air humidity	≤95 % (non-condensing)
Elevation	≤4000 m
Protection class	IP66
Mechanical parameters
Dimensions (W * H * D)	48 mm * 132 mm * 36 mm
Mounting type	Plug and play

Warranty starts from Invoice Date

Domestic Use: 1 Years from installation date but no more than 2 years from manufacturing date.
Commercial Use: 1 Years from installation date but no more than 2 years from manufacturing date.
Warranty Method: Return to Sparky Direct
