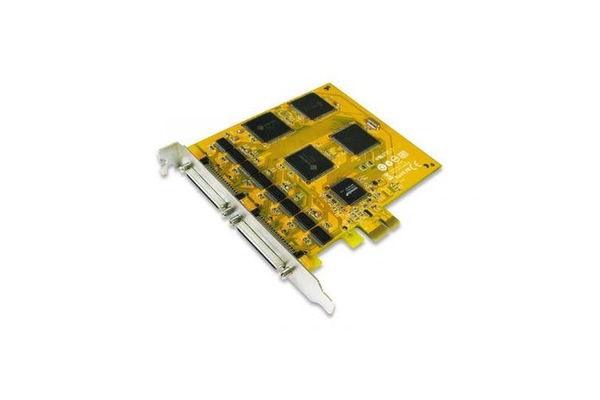

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps. High speed SUN1999 16C950 compatible UART controller on-board. Designed to meet PCI Express Base Specification Revision 1.1. Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys. On-chip hardware auto flow control to guarantee no data loss. Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS. Serial Communication InterfaceRS-232SignalTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND ControllerSUNIX SUN1999 (16C950 UART Compatible)Baud rate50bps ~921.6Kbps BUSPCI Express one lane (x1)Stop bit1, 1.5, 2 No. of Port16-portParityeven, odd, none, mark, space IRQ & IOAssigned by SystemFlow ControlNone, Xon/Xoff, RTS/CTS FIFO128byte HardwarePCB ConnectorMini SCSI 68 Female Protection±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge Dimension PCB Dimension120 x 110 mm BracketStandard 121 mm Bracket Space1
