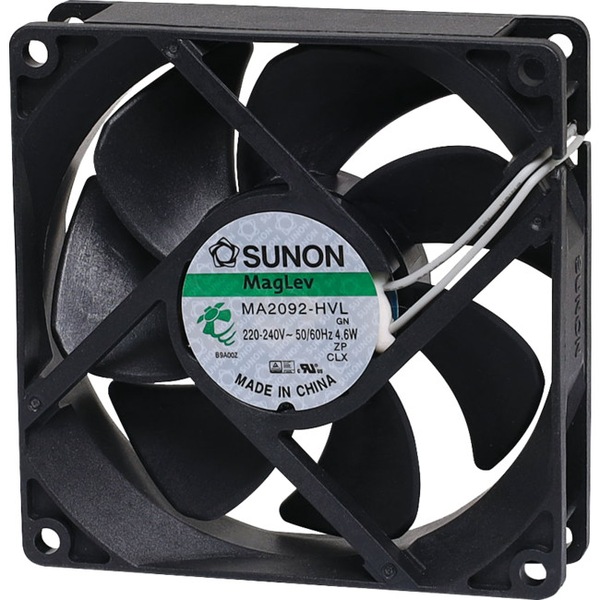

SUNON AC9225240 240V Ac 92Mm Fan Maglev Bearing Fan

Image 1
Hurry! 7 items left!
$66.95

Collect 66 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
92mm 240VAC Maglev Bearing Cooling Fan

Sunon CF2092HVL-1000U-999 240V AC 92mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon®fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

About Sunon Maglev Bearing Design
Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

  • Mechanical Characteristics
  • Motor Design:2 phases, 4 poles brushless DC motor
  • Motor Protection: Impedance protected
  • Bearing System: Vapo bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation:Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight:119.7g
  • Dimensions:92 x 92 x 25mm
  • Electrical Characteristics
  • Rated Voltage:220-240V AC at 50/60Hz
  • Rated Current:225mA (230mA max)
  • Input Power: 4.6W
  • Operating Voltage Range:150-250V AC
  • Starting Voltage:150V AC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature:-40°C ~ +70°C
  • Performance Characteristics
  • Rated Speed:2900/3000 RPM ±20%
  • Air Flow:52/54 CFM
  • Static Pressure:0.12/0.14 Inch-H2O
  • Noise Level:31/32dB(A)
  • Insulation Resistance: 10M (min) at 500V DC
  • Dielectric Strength: 1500V AC for one second

Weight: 0.117

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9321758251591
