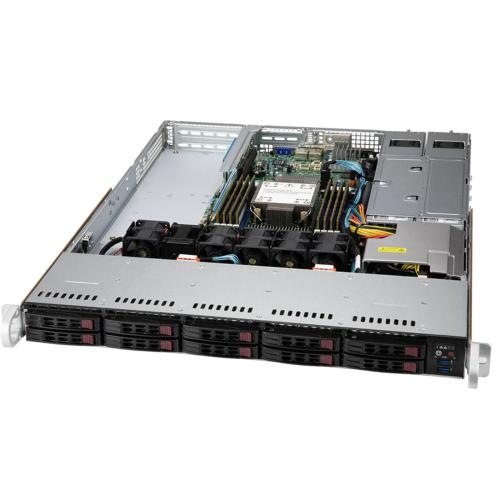

Supermicro 110P-WTR Barebone, 1U, 1x LGA4189, 8 DIMM, 10x 2.5" Hot-Swap w/ 4x Hybrid NVMe, 2x 10G RJ-45, 3x PCIe 4.0 x16, 1x PCIe 3.0 M.2 2280/22110, 2x 750W Redundant Power Supplies [SYS-110P-WTR]

Supermicro 110P-WTR Barebone, 1U, 1x LGA4189, 8 DIMM, 10x 2.5" Hot-Swap w/ 4x Hybrid NVMe, 2x 10G RJ-45, 3x PCIe 4.0 x16, 1x PCIe 3.0 M.2 2280/22110, 2x 750W Redundant Power Supplies [SYS-110P-WTR]


Supermicro 110P-WTR Barebone, 1U, 1x LGA4189, 8 DIMM, 10x 2.5" Hot-Swap w/ 4x Hybrid NVMe, 2x 10G RJ-45, 3x PCIe 4.0 x16, 1x PCIe 3.0 M.2 2280/22110, 2x 750W Redundant Power Supplies

Key Features
Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
Intel® Ethernet Controller X550 2x 10GbE RJ45
10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
Redundant Platinum 750W Power Supply

Specifications
Product SKUs
SYS-110P-WTR
SuperServer SYS-110P-WTR (Black)

Motherboard
Super X12SPW-TF

Processor
CPU
Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W
Cores
Up to 36C/72T; Up to 60MB Cache

System Memory
Memory
Memory Capacity: 8 DIMM slots
Up to 2TB: 8x 256 GB DRAM
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
Intel® Optane™ persistent memory 200 series
Memory Voltage
1.25 V
Error Detection
Yes

On-Board Devices
NVMe
NVMe; RAID 0/1/5/10 support
SATA
SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT with Intel® X550
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

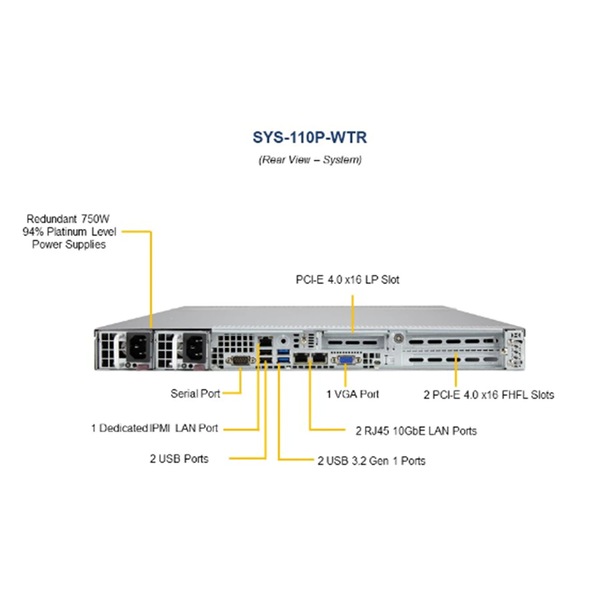

Input / Output
SATA
10 SATA (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports
USB
4 USB 3.2 Gen 1 port(s) (2 front; 2 rear)
3 USB port(s) (2 headers; 1 Type A)
2 USB 2.0 port(s) (2 rear)
Video
1 VGA 2 port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM

Management
Software
IPMI2.0
Redfish API
SSM
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations
ACPI/APM Power Management

PC Health Monitoring
CPU
7+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
1U Rackmount
Model
CSE-116TS-R706WBP4

Dimensions and Weight
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
23.5" (597mm)
Package
8" (H) x 24" (W) x 32" (D)
Weight
Net Weight: 15.5 lbs (7.03 kg)
Gross Weight: 27 lbs (12.25 kg)
Available Color
Black

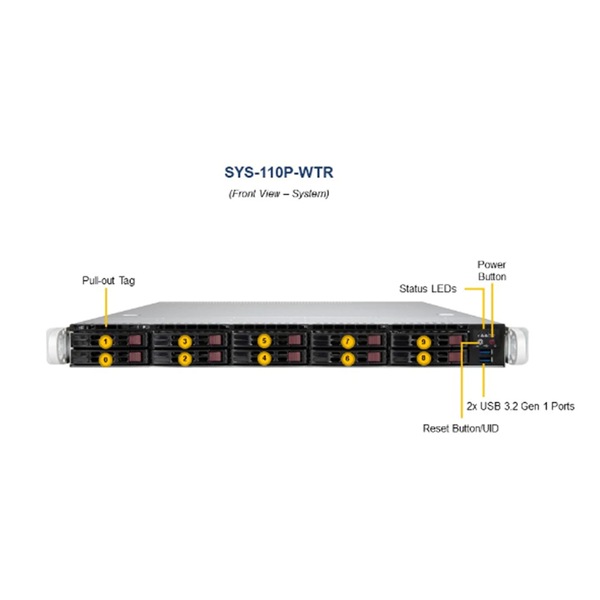

Front Panel
Buttons
Power On/Off
UID button
LEDs
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information

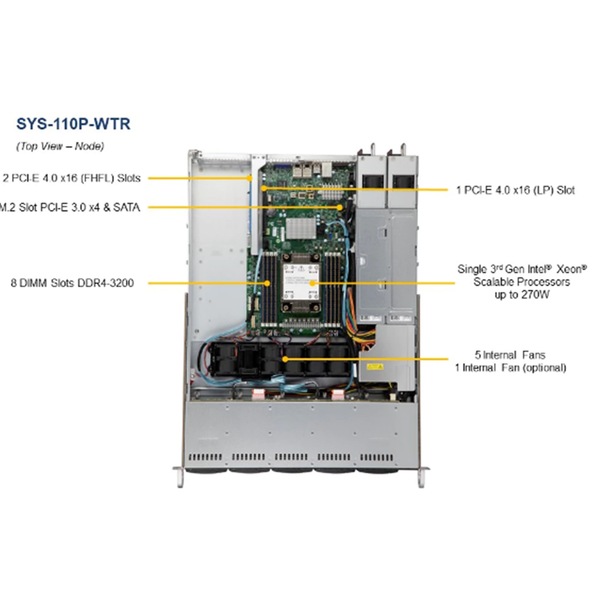

Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x16 LP

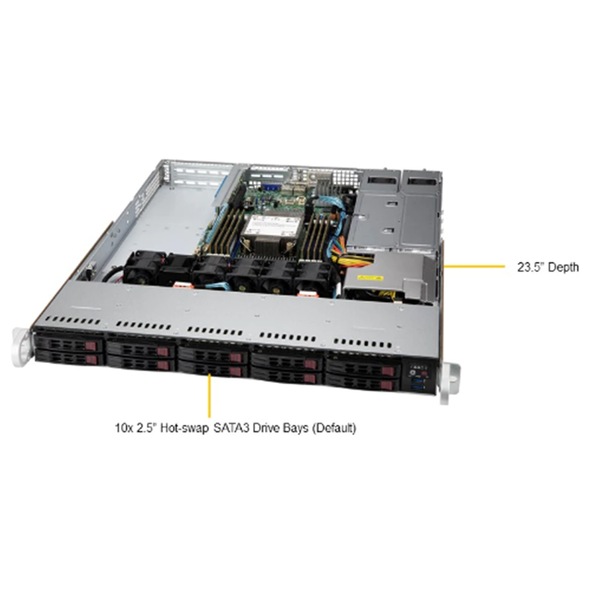

Drive Bays / Storage
Drive Bays
10x 2.5" SATA drive bays (4x 2.5" NVMe hybrid)
M.2
1x PCI-E 3.0 x 4 and SATA
M-key, 2280, 22110

System Cooling
Fans
1 AOC cooling Fan(s) (optional)
5 counter-rotation PWM 40x40x56mm Fan(s)

Power Supply
1U 750W redundant power width 54.5mm
Total Output Power
750W
Dimension
(W x H x L)
54.5 x 40.25 x 320 mm
AC Input
750W: 100-240Vac / 3.8A-8A / 50-60Hz
+12V
Max: 62A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Output Type
Gold Finger Connector
CertificationPlatinum Level Certified94%+ Platinum Level

[ Test Report ]

Operating Environment
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)



- MPN: SYS-110P-WTR
GTIN: 672042424030
