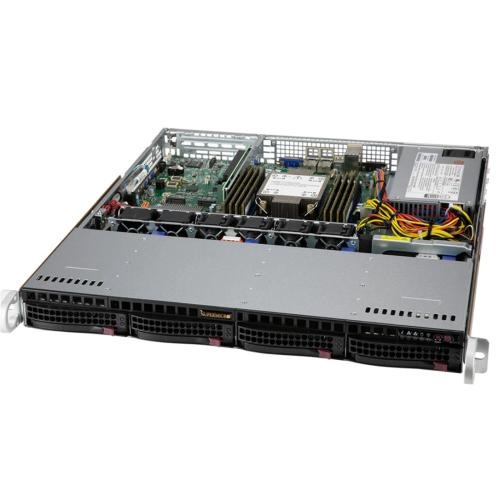

Supermicro 510P-M Barebone, 1U, 1x LGA4189, 8 DIMM, 4x 3.5" Hot-Swap, 2x GbE, 1x PCIe 4.0 x16 FHHL, 2x PCIe 3.0 M.2 2280/22110, 1x 500W Power Supply [SYS-510P-M]

Supermicro 510P-M Barebone, 1U, 1x LGA4189, 8 DIMM, 4x 3.5" Hot-Swap, 2x GbE, 1x PCIe 4.0 x16 FHHL, 2x PCIe 3.0 M.2 2280/22110, 1x 500W Power Supply [SYS-510P-M]


Supermicro 510P-M Barebone, 1U, 1x LGA4189, 8 DIMM, 4x 3.5" Hot-Swap, 2x GbE, 1x PCIe 4.0 x16 FHHL, 2x PCIe 3.0 M.2 2280/22110, 1x 500W Power Supply

Key Features
Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
1 PCI-E 4.0 x16 (FHHL) slot
Intel® Ethernet Controller i350 2x 1GbE RJ45
4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
Single Platinum 500W Power Supply


Product SKUs

SYS-510P-M
SuperServer SYS-510P-M (Black)

Motherboard

Super X12SPO-F

Processor

CPU

Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 220W

Cores
Up to 36C/72T; Up to 60MB Cache


System Memory

Memory

Memory Capacity: 8 DIMM slots
Up to 2TB: 8x 256 GB DRAM
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
Intel® Optane™ persistent memory 200 series

Memory Voltage

1.25 V

Error Detection

Yes

On-Board Devices

SATA

SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1/5/10 support

Chipset

Intel® C621A

Network Connectivity

2x 1GbE BaseT with Intel® i350

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

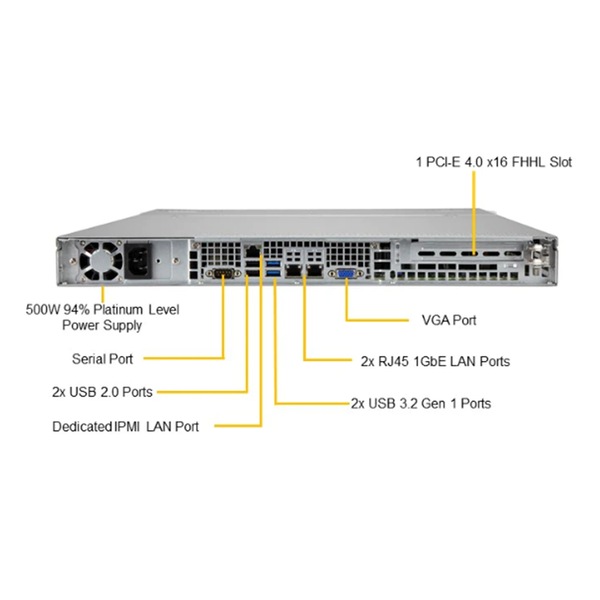

Input / Output

SATA

10 SATA (6Gbps) port(s)

LAN

1 RJ45 Dedicated IPMI LAN port
2 RJ45 1GbE LAN ports

USB

5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
6 USB 2.0 port(s) (4 headers; 2 rear)

Video

1 VGA port(s)

Serial Port

2 COM Port(s) (1 header; 1 rear)

DOM

2 SuperDOM (Disk on Module) port with built-in power


System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

IPMI2.0
Redfish API
SSM
SPM
KVM with dedicated LAN
SUM
NMI

Power Configurations

ACPI/APM Power Management



PC Health Monitoring

CPU

7+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control

Temperature

Monitoring for CPU and chassis environment
Thermal Control for fan connectors

chassis

Form Factor

1U Rackmount

Model

CSE-813MF2TS-505CBP

Dimensions and Weight

Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
19.98" (507mm)
Package
8.5" (H) x 24" (W) x 29.5" (D)

Weight

Net Weight: 17.6 lbs (8 kg)
Gross Weight: 30.4 lbs (13.8 kg)
Available Color
Black

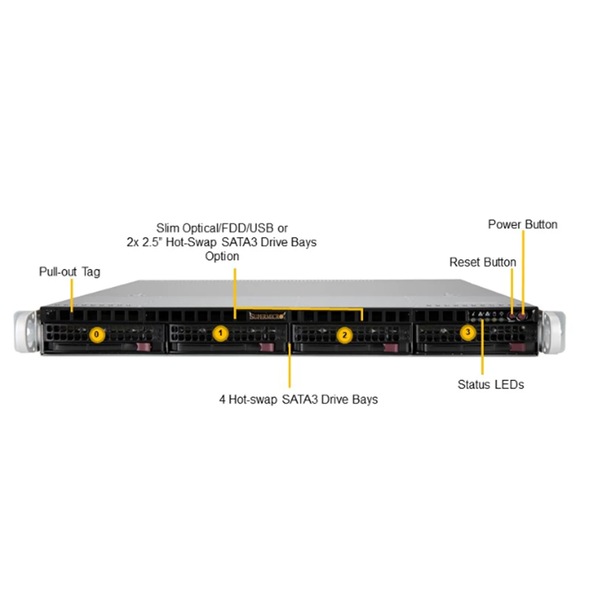

Front Panel

Buttons

Power On/Off
System Reset

LEDs

Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information

Expansion Slots

PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x16 FHHL


Drive Bays / Storage

Drive Bays

4x 3.5" NVMe/SATA drive bays (4x 3.5" NVMe hybrid)
M.2
2x PCI-E 3.0 x 4 and SATA
M-key, 2280, 22110
Peripheral Bays
2x 2.5" drive bays


System Cooling

Fans
2 AOC cooling Fan(s) (optional)
4 middle cooling PWM 40x40x28mm Fan(s)

Power Supply

1U 500W Multi-output, Platinum level with PMbus 24pin, W100xL180xH40mm,RoHS/REACH
Total Output Power
500W

Dimension

(W x H x L)
100 x 40 x 180 mm

AC Input

500W: 100-240Vac / 3.2A-6.6A / 50-60Hz
+12V
Max: 41A / Min: 0.5A
5V SB
Max: 3A / Min: 0A

Certification

Platinum Level Certified94%+ Platinum Level


Operating Environment

Environmental Spec.

Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:
8% to 90% (non-condensing)

Non-operating Relative Humidity:
5% to 95% (non-condensing)
- MPN: SYS-510P-M
GTIN: 672042421442
