Supermicro AOC-STGF-I2S, Dual SFP+ 10Gb Controller, Low-Profile PCIe, Intel X710 Controller [AOC-STGF-I2S-O]

Image 1
Image 2
Shop More Products

Popular Products

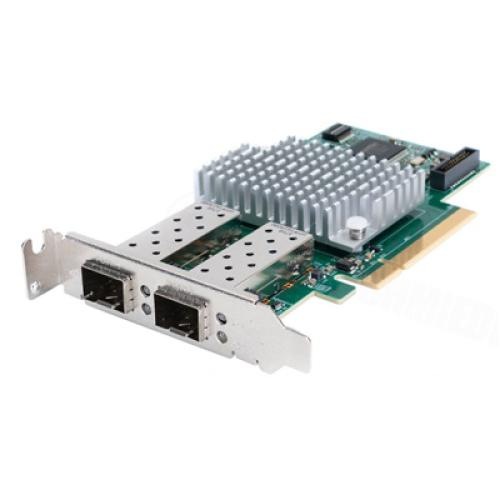

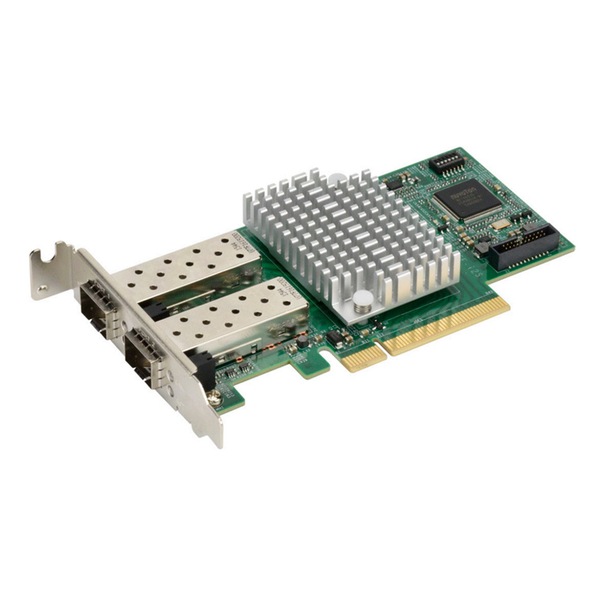

Supermicro AOC-STGF-I2S, Dual SFP+ 10Gb Controller, Low-Profile PCIe, Intel X710 Controller

The Supermicro® AOC-STGF-i2S dual-port Ethernet card delivers superior performance with an industry-leading, energy-efficient design based on Intel® X710.
This feature-rich card addresses the demands of the next-generation data center by providing unmatched functionality for both servers and network virtualization. It excels at small packet transfers, bulk transfers, and network virtualization overlay offloads including VXLAN, NVGRE, and Geneve. Moreover, its Supermicro Asset Management and thermal detection provide an extra layer of controller health management. AOC-STGF-i2S provides reliable performance that is required for today’s networking needs, and it is an excellent choice for next generation 10GbE network.

Major Components

The following major components are installed on the AOC-STGF-i2S:

1. Intel® X710 controller
2. SFP+ LAN Ports 1/2
3. SFP+ Port1 LED
4. SFP+ Port2 LED
5. NC-SI for IPMI support
6. DIP switch

Asset Management is a new feature that allows users to monitor selected Supermicro add-on cards in selected Supermicro X10 generation server systems.
Using Supermicro's proprietary management software, users will be able to monitor the following:

1. Model name
2. Revision
3. Serial number
4. Temperature

Power Consumption

5.63W

Supported Platforms

Supermicro® motherboards with minimum PCI-E x8 expansion slot
Supermicro® server systems with low-profile or full-height PCI-E x8 expansion
slot
NC-SI feature is only supported by Supermicro motherboards with corresponding NC-SI connectors

Operating Conditions

Operating temperature

0°C to 55°C (32°F to 131°F)

Storage temperature

-40°C to 70°C (-40°F to 158°F)

Storage humidity

90% non-condensing relative humidity at 35°C

Physical Dimensions

Card PCB dimensions: 13.19cm x 6.89cm (5.19in x 2.71in)
Height of end brackets: standard – 12cm (4.725in), low-profile – 7.94cm (3.13in))

Weight

184.5g (0.4068lb)
- MPN: AOC-STGF-I2S-O

GTIN: 672042252749

Reference ID: 8369977
