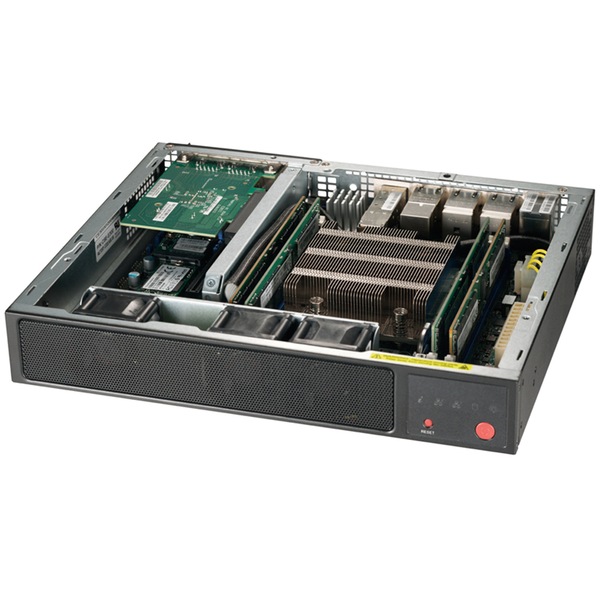

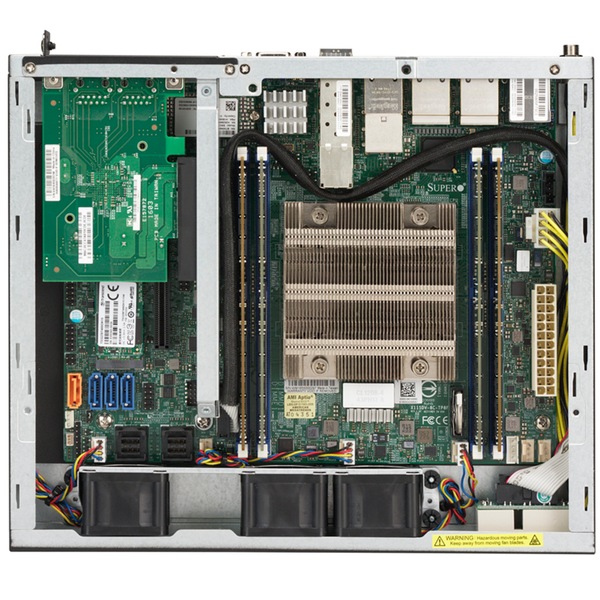

Supermicro E300-9D-8CN8TP Barebone, Xeon D-2146NT 8Core/16Thread 2.3GHz, 4 DIMM, 4x 1GbE, 2x 10G RJ-45, 2x 10G SFP+, VGA, IPMI, 150W Power Supply [SYS-E300-9D-8CN8TP]

Image 1
Image 2
Image 3
Image 4
Image 5
Shop More Products
Supermicro E300-9D-8CN8TP Barebone, Xeon D-2146NT 8Core/16Thread 2.3GHz, 4 DIMM, 4x 1GbE, 2x 10G RJ-45, 2x 10G SFP+, VGA, IPMI, 150W Power Supply

- System on Chip
- 1 x VGA, 2 USB 3.0
- Low-noise DC Power Supply
- 3 x 40x28mm 4-PIN PWM Fan
- 1 x Fixed 2.5 drive bay with bracket
- Built in Intel QAT up to 40Gbps Crypto/Compression
- Intel Xeon processor D-2146NT, 8-Core, 16 Threads, 80W
- 4 x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
- Up to 512GB ECC LRDIMM, up to 256GB ECC/non-ECC RDIMM DDR4-2666Mz; in 4 DIMM slots
- 1 x M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot

Main Specifications

Device Type
SuperServer

Built-in Devices

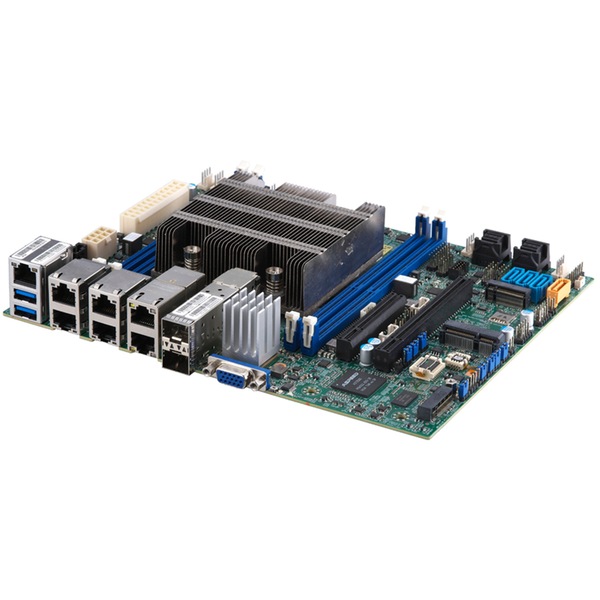

Super X11SDV-8C-TP8F

Form Factor
Compact (CSE-E300)

Dimensions (WxDxH)
Width 10" (254mm) / 15" (381mm) - pkg.
Height 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth 8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
Gross Weight: 7.5 lbs (3.4 kg)
Net Weight: 3.45 lbs (1.56 kg)

Enclosure Color
Black

Processor

Compatible processor
Intel Xeon processor D-2146NT, CPU TDP support 80W

Cache/Core
8 Cores, 16 Threads

System Memory

Memory Capacity
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC/non-ECC RDIMM
4 DIMM slots

Memory Type
2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM

Operating speed
up to 2400MHz

DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

LRDIMM:
16GB, 32GB, 64GB, 128GB

Memory Voltage
1.2 V

Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
System on Chip

SATA
SATA3 (6Gbps) ports via SoC controller

Network Controllers
Quad 1GbE with Intel I350-AM4
Dual 10GBase-T with Intel X557
Dual 10G SFP+ via SoC

IPMI
Support for Intelligent Platform
Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics
Aspeed AST2500 BMC

Input / Output

SATA
SoC controller for 4 SATA3 (6Gbps) ports, (or 2 NVMe U.2 / 8 SATA3 through two Port Eight Intel PCH SATA 3.0 Ports or Two MINI-SAS HD ports)

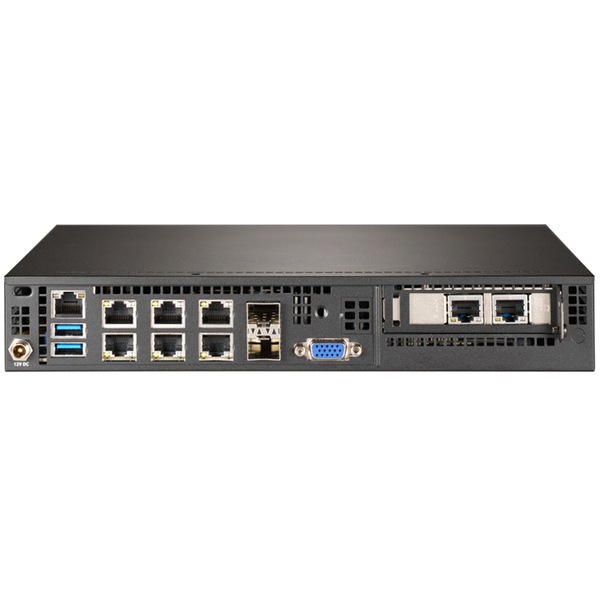

LAN
2x 10G SFP+ ports
2x 10GBase-T LAN ports
4x 1GbE LAN ports
1 Dedicated IPMI LAN port

USB
2 USB 3.0 ports (rear)

Display Port
1 VGA port

TPM
1 TPM 2.0 header

System BIOS

BIOS Features
PCI 3.0, ACPI 5.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.8, UEFI 2.4, RTC (Real Time Clock) Wakeup

BIOS Type
128Mb SPI Flash with AMI BIOS

Management

Software
Intel Node Manager, IPMI 2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor 5, Watch Dog

Power Configurations
ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

Fan
Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

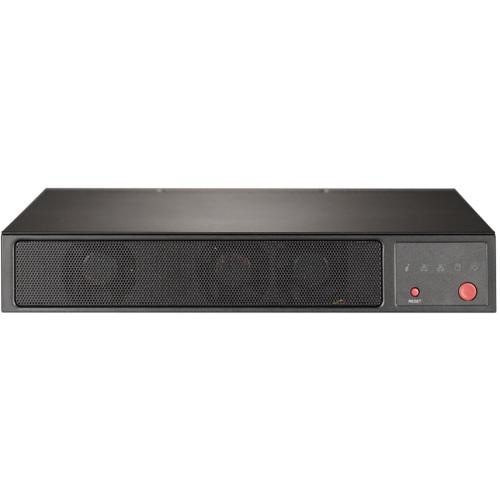

Front Panel

LEDs
Power LED (Hard drive activity LED)

Buttons
Power On/Off button

Expansion / Connectivity

Expansion Slots Total (Free)
1 PCI-E 3.0 x8 slot

Drive Bays

Internal
1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied)

System Cooling

Fans
3x 40x28mm 4-PIN PWM Fan

Power Supply

Power Supply
DC Power Adapter with PFC

Operating Environment / Compliance

RoHS
RoHS Compliant

Operating Environment (System)

Operating Temperature Range
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List - (Items Included)

Motherboard / Chassis
1x MBD-X11SDV-8C-TP8F / 1x CSE-E300

Parts
1x Power Adapter (MCP-250-10127-0N)

Fans
2x FAN-0065L4
- MPN: SYS-E300-9D-8CN8TP

GTIN: 672042348596

Reference ID: 6470309
