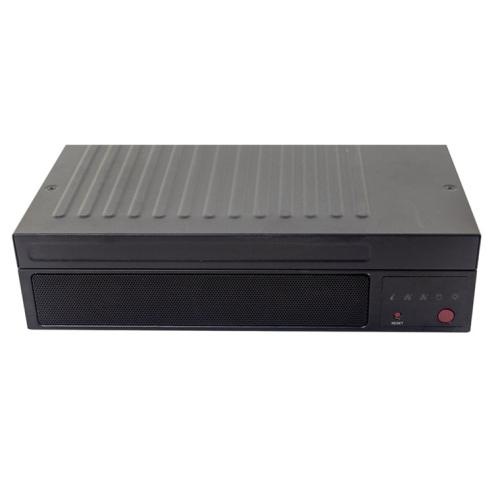

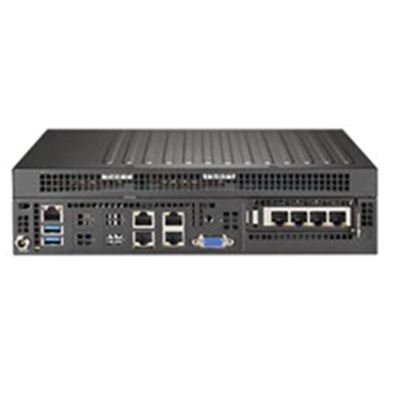

Supermicro E301-9D-8CN4 Barebone, EPYC 3251 8-Core, 4 DIMM, 2x Fixed 2.5" Bay, 4x GbE, 1x 150W Lockable DC Power Adapter [AS -E301-9D-8CN4]

Supermicro E301-9D-8CN4 Barebone, EPYC 3251 8-Core, 4 DIMM, 2x Fixed 2.5" Bay, 4x GbE, 1x 150W Lockable DC Power Adapter [AS -E301-9D-8CN4]


Supermicro E301-9D-8CN4 Barebone, EPYC 3251 8-Core, 4 DIMM, 2x Fixed 2.5" Bay, 4x GbE, 1x 150W Lockable DC Power Adapter

- Embedded IoT Computing
- SD-WAN and vCPE/uCPE
- Hyper-Converged Appliance
- Entry-level Network Appliance

Motherboard
Super M11SDV-8C-LN4F
Processor/Cache
CPU
Single AMD EPYC™ 3251 SoC Processor
Cores
8 Core/16 Thread
System Memory
Memory Capacity
4 DIMM slots
Supports up to 512GB Registered RCC DDR4 2666MHz SDRAM in 4 DIMMs
4-channel memory bus
Memory Type
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SATA3 (6Gbps) ports via SoC controller
Network Controllers
Quad 1GbE with Intel I350-AM4
IPMI
Support for Intelligent Platform
Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
Aspeed AST2500 BMC
Input / Output
SATA
SoC controller for 4 SATA3 (6Gbps) ports
LAN
4x 1GbE LAN ports
1 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
Display
1 VGA port
TPM
1 TPM 2.0 header
Chassis
Form Factor
1.5U Compact Box
Model
CSE-E301
Dimensions
Width
10" (254mm) / 15" (381mm) - pkg.
Height
2.6" (66mm) / 10.87" (276mm) - pkg.
Depth
8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
Gross Weight: 6.8 lbs (3.08 kg)
Net Weight: 4.93 lbs (2.24 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
LEDs
Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express
1 PCI-E 3.0 x16 AOC slot (LP)
1 M.2 PCI-E 3.0 x4, 2280, M Key
Drive Bays
Internal
2 Fixed 2.5" drive bay bracket, supporting 15mm 2.5" Enterprise drive
System Cooling
Fans
2x 40x28mm 4-PIN PWM Fans
(FAN-0065L4, 13K RPM)
Power Supply
Lockable 12V DC 150W power adapter
System BIOS
BIOS Type
AMI 64Mb Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
0°C to 40°C (32°F to 104°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
- MPN: AS -E301-9D-8CN4
GTIN: 672042366699
