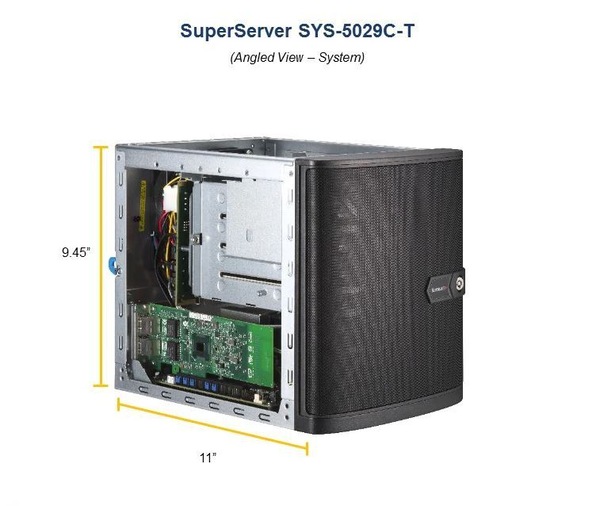

Supermicro Mini Tower SuperServer, 5029C-T Barebone, Single E-2100 Socket, 4 x3.5' HDD HS, 2 x DIMM C242, M.2, Dual Gbe,, 250w PSU

Supermicro Mini Tower SuperServer, 5029C-T Barebone, Single E-2100 Socket, 4 x3.5' HDD HS, 2 x DIMM C242, M.2, Dual Gbe,, 250w PSU

Be the first to review this product

Hurry! 2 items left!

Price	$1671.88
	Earn 3x points and collect 5013 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Product SKUs
SYS-5029C-T
SuperServer 5029C-T (Black)

Motherboard
Super X11SCL-iF

Processor
CPU
Single Socket H4 (LGA 1151),
CPU TDP support up to 80W
Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores
6 cores, 12 threads

System Memory
Memory Capacity
2 DIMM slots
Up to 64GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Note
Future support for 64GB via BIOS update expected in early 2019

On-Board Devices
Chipset
Intel® C242 chipset
SATA
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel® I210-AT
Video
ASPEED AST2500 BMC

Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.1 Gen1 (front)
2 USB 3.1 Gen1 (rear)
2 USB 2.0 (rear)
Video
1 VGA port
Serial Port / Header
1 COM port
DOM
SATA DOM (Disk on Module) power connector support
TPM
1 TPM 2.0 Header

Management
Software
SuperDoctor® 5
Watch Dog
Non-maskable Interrupt (NMI)
Chassis intrusion detection
Chassis
Form Factor
Mini Tower
Model
CSE-721TQ-250B2

Dimensions and Weight
Height
9.45' (240mm)
Width
8.27' (210mm)
Depth
11' (279mm)
Weight
Gross Weight: 15 lbs (6.8 kg)
Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Ports
2 USB 3.1 Gen1 ports

Expansion Slots
PCI-E
1 PCI-E 3.0 x16 slot, for low-profile AOC

Drive Bays
HDD
4 Hot-swap 3.5' drive bays with BPN
2 internal 2.5' drive bays
Peripheral
1 optional slim DVD-ROM bay

Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:14 Amp; Min:0.5 Amp
+12V
Max:18 Amp; Min:1 Amp @100V-240V
-12

Specifications:

GTIN: 672042356652
