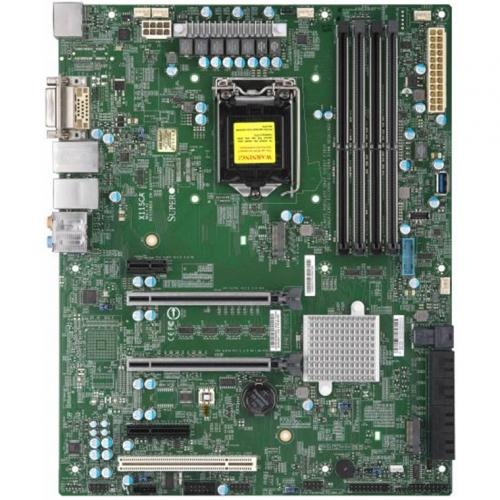

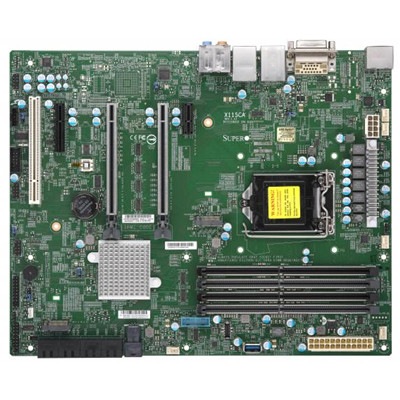

Supermicro X11SCA Workstation Board, ATX, LGA1151, C246, 4 DIMM, 2x GbE, 8x SATA3, 4x USB3.1, 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, 1x PCI-E 3.0 x1, 1x DP, 1x HDMI, 2x M.2

Supermicro X11SCA Workstation Board, ATX, LGA1151, C246, 4 DIMM, 2x GbE, 8x SATA3, 4x USB3.1, 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, 1x PCI-E 3.0 x1, 1x DP, 1x HDMI, 2x M.2


Supermicro X11SCA Workstation Board, ATX, LGA1151, C246, 4 DIMM, 2x GbE, 8x SATA3, 4x USB3.1, 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, 1x PCI-E 3.0 x1, 1x DP, 1x HDMI, 2x M.2

- Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
- Intel® C246
- Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
- 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8
-1 - 5V PCI 32bit
-M.2 Interface: 2 PCI-E 3.0 x4
-M.2 Form Factor: 2242/2260/2280/22110
-M.2 Key: M-Key
-M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
-U.2 Interface: 1 PCI-E 3.0 x4
- 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
- Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Single LAN with Intel® Ethernet Controller I210-AT
-Single LAN with Intel® PHY I219LM LAN controller
-Support vPro

Physical Stats
Form Factor
ATX
Dimensions
12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU
- Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation.
- Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes
1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage
1.2V
Note:
*Future support for 128GB via a BIOS update
On-Board Devices
Chipset
Intel® C246
SATA
Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Support vPro
Audio
ALC 888S HD Audio
Graphics
Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
Input / Output
LAN
2 1GbE LAN ports
USB
- 2 USB 2.0 ports (2 headers, Type A))
- 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers)
- 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 header, 1 Type A)
Video Output
- 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
- Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
- 1 PCI-E 3.0 x4,
- 1 PCI-E 3.0 x1,
- 2 PCI-Ex16 slots are running at NA/16, or 8/8
- 1 - 5V PCI 32bit
M.2
- M.2 Interface: 2 PCI-E 3.0 x4
- Form Factor: 2242/2260/2280/22110
- Key: M-Key
- M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
System BIOS
BIOS Type
UEFI 128Mb
Management
Software
AMT, SuperDoctor® 5, vPro, Watchdog
System Mangement Software
- SuperDoctor 5
- version. 5
Power Configurations
- ACPI Power Management
- ATX Power connector
- Power-on mode for AC power recovery
- Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, VBAT
FAN
5 fans with tachometer status monitoring
Temperature
N/A
LED
Standby alert LED
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, RoHS, WOL
Operating Environment
Operating Temperature Range
0°C ~ 50°C (32°F ~ 122°F)
GTIN: 672042323975
