Superseal connectors were delevoped to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field.

These connectors fulfill all the requirements prescribed by the various automotive and industrial standards.

Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.

Features and Benefits

Sturdy and reliable contacts
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals

Superseal connectors were delevoped to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field.

These connectors fulfill all the requirements prescribed by the various automotive and industrial standards.

Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.

Features and Benefits

Sturdy and reliable contacts
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals

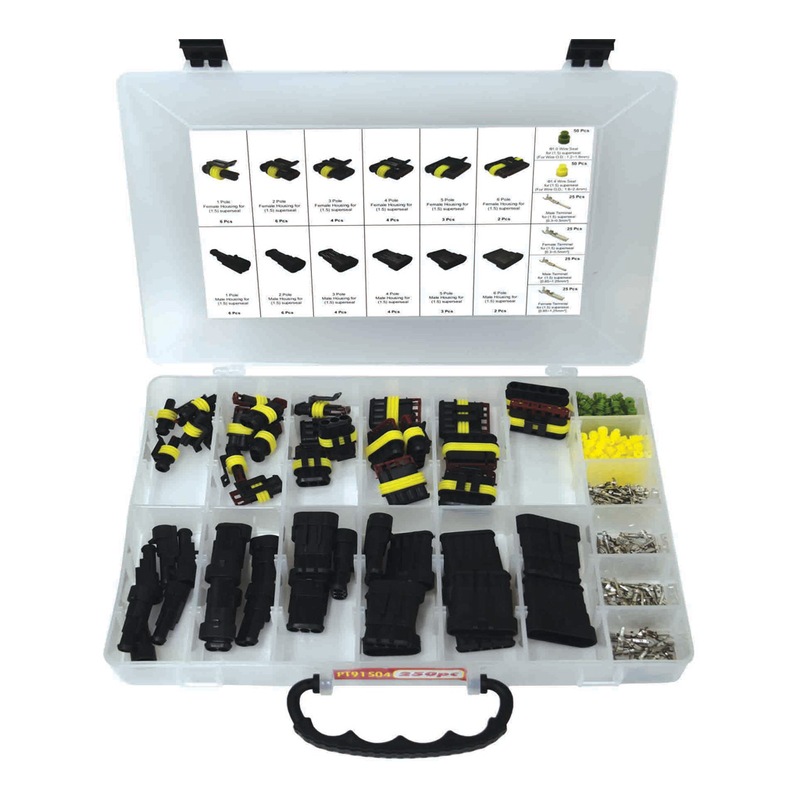

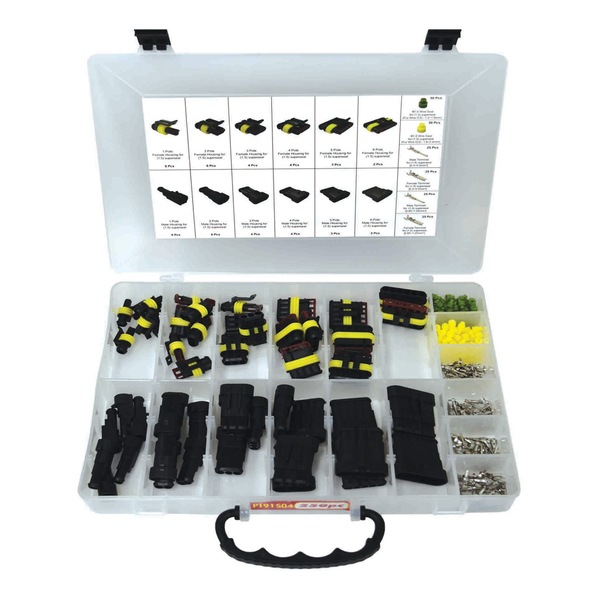

Contents:
Male Type Housing
6pc 1 Pole Housing 1.5
6pc 2 Pole Housing 1.5
4pc 3 Pole Housing 1.5
4pc 4 Pole Housing 1.5
3pc 5 Pole Housing 1.5
2pc 6 Pole Housing 1.5

Female Type Housing
6pc 1 Pole Housing 1.5
6pc 2 Pole Housing 1.5
4pc 3 Pole Housing 1.5
4pc 4 Pole Housing 1.5
3pc 5 Pole Housing 1.5
2pc 6 Pole Housing 1.5

Male Terminal
25pc (1.5) 0.3-0.5mm
25pc (1.5) 0.85-1.25mm

Female Terminal
25pc (1.5) 0.3-0.5mm
25pc (1.5) 0.85-1.25mm

Wire Seals
50pc 1.0 (1.5) (Wire O.D.: 1.2-1.8mm)
50pc 1.4 (1.5) (Wire O.D.: 1.6-2.4mm)
