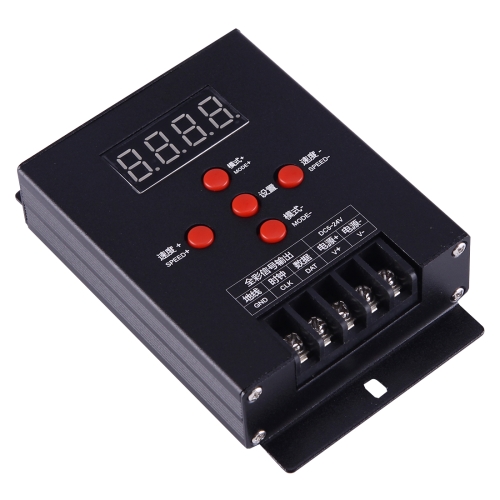

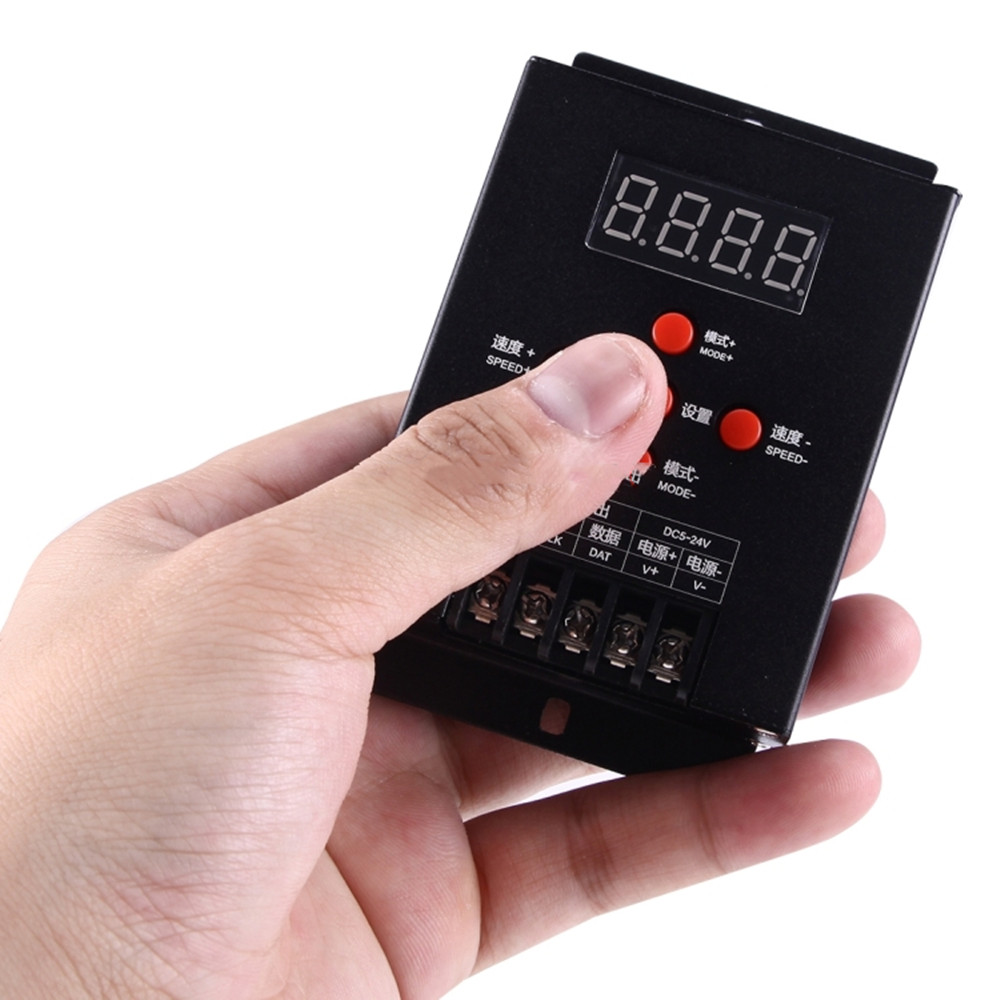

T-500 Mini Intelligent Full Ic 512 Points Control Digital Led Controller Dc 5-24V(Black)

1. Brand new and high quality
2. Digital LED controller adopts the advanced micro control unit, it is used for controlling a variety of IC LED strip and led pixel string, you could adjust brightness, static color choices and various dynamic changes in lighting effects though this controller
3. Mini IC LED controller, easy to install and use
4. Output voltage: DC5-24V
5. Static power consumption:<1W
6. Output type: TTL/SPI
7. IC control quantity: 512pcs
8. Working temperature: -20 to +60 Degree Celsius
9. For IC LED module string / IC LED strip etc.

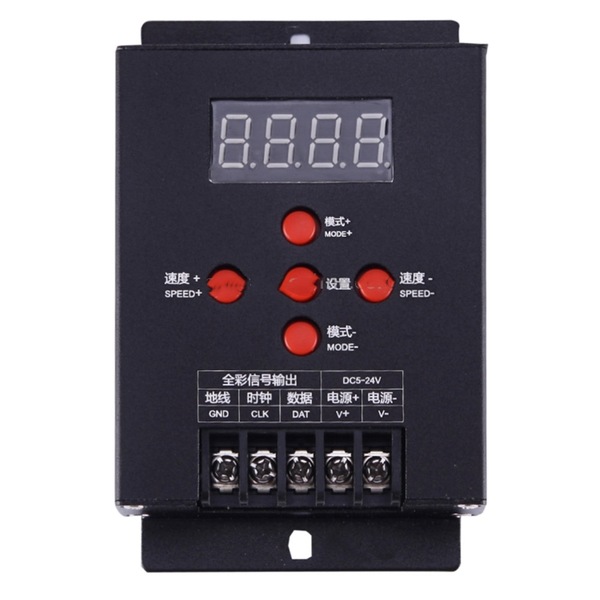

Connection Instructions:
1. Connect LED light signal wire first, generally single wire IC(TM1803/TM1804/TM1809)just connect DAT and GND, double wire IC(LPD6803,SM16716)connect DAT, CLK and GND
2. "Power+" switching power supply DC12V positive, "Power+" switching power supply DC12V negative
3. Display when power supply: P-001 P: represent Mode 001: represent mode value, total 36 modes
Setting Instructions:
1. Press the setting into "IC mode choose" state: press "mode+" or "mode-"can select different IC which IC model digital tube can show, able been controlled IC model, LPD6803 LPD1109 LPD1882 LPD1886 P9813 SM16716 TM1803 TM1903 TM1829 WS2811 WS2801
2. Then press the setting again, set IC quantity: press"mode+" or "mode-" add or reduce IC quantity, digital tube show:L-001, max IC quantity: 512pcs
3. Press the setting once more to save settings information, the interface back to mode selection: P-0xx
4. Change mode: directly press "mode+" or "mode-", interface show: P-0XX corresponding value will increase or decrease
5. Adjust the speed of change: directly press "mode+" or "mode-", interface show:SP-XXX
corresponding value will increase or decrease
