• OEM specs coincidence to ensure the perfect fitment to the related parts
• Material qualification for durable and reliable use
• Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit
• Accuracy producing on all procedures to reduce possible metallic contacts under different condition
• Large range of turbochargers for easily locate the turbo with the target horse power and size you need from us
• Quality fully guaranteed and professional installation highly recommended

• Pick up service is not available.
• This turbo is a universal application turbo, some modification may be required based on individual vehicle.
• The dimension picture is available, please contact us if needed.
• Please check the details carefully before purchasing.
• Please confirm that there is enough space in your car to install this turbo before purchasing.

• Compatible for 1.5L to 2.5L any 4/6 cylinder engine
• Horse Power: Capable of Boosting Horse Power up to 420HP
• Cooling Type: Oil Cooled
• Oil Inlet: M12*1.25 & 2*M8*1.25
• Oil Outlet: 2*M8*1.25
• Wastegate: With Wastegate
• Thrust Bearings: 270 Degrees
• Turbo Type: Individual
• Condition: Brand New

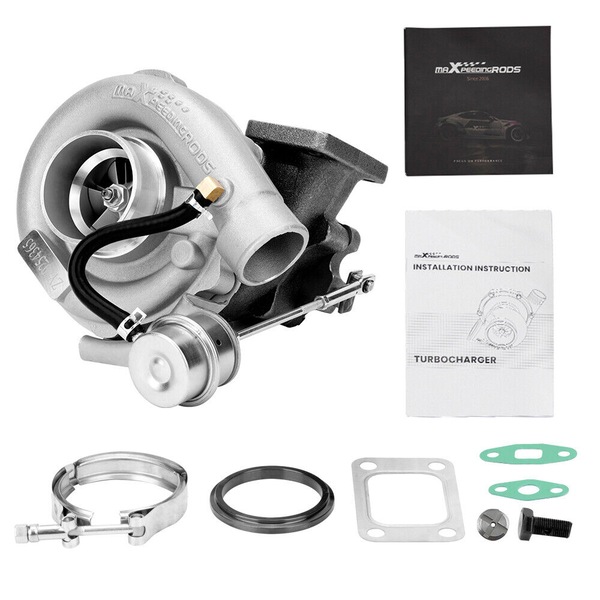

• Accessories: You will get exactly as shown as picture above
• Package Size: 30x 28x 24 cm
• Package Weight: 9180g

• Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
• Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
• Turbine Trim: 74.2
• Turbine Inducer Diameter: 64.8 mm
• Turbine Exducer Diameter: 55.8mm
• Turbine A/R: 0.63
• Turbine exhaust outlet: 79mm
• Turbine exhaust inlet: 44.7mm (length)/85.8mm (width)
• Compressor outlet: 78 mm
• Compressor inlet: 51.5 mm
• Compressor Trim: 48.1
• Compressor Inducer Diameter: 52.7mm
• Compressor Exducer Diameter: 76 mm
• Compressor A/R: 0.5
• Bearing: Journal Bearing
• Warranty: 2 Year

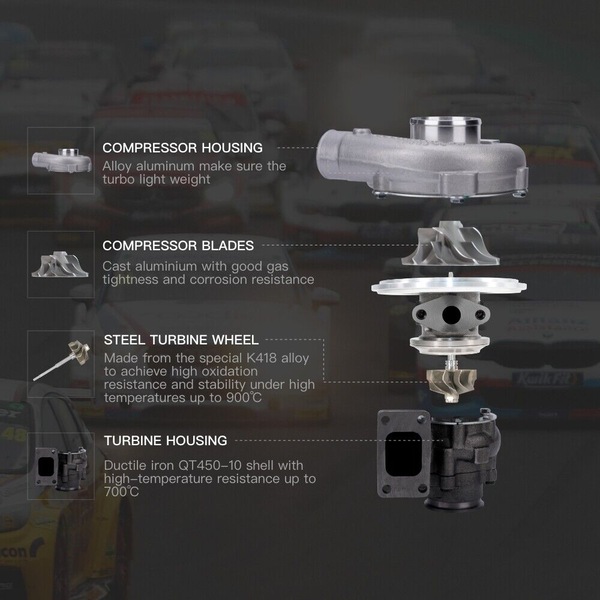

Product Material

• Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
• Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
• Compressor housing: ZL104 aluminum with lightweight
• Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

Product Features

• Cost-effective turbo increase 20-40% power for your car
• Rich experience in turbo production and own factory
• High-Speed oil seal ring and Precision clearance
• Built for durability and strength

Technology Advantage

• 100% balancing Test by TURBOTECHNICS VSR3
• G3-min-Flow VNT Turbo testing
• Advanced Actuator Tester/Programmer

• This turbocharger is only for 1.5L -2.5L engine.
• Air filter is Necessary to complete the turbocharger. We will not be responsible for any damage which caused by disobey the 2 rules.
• This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. If you are not sure about these information, please feel free to contact us.
• Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• The degree of modification of the universal turbo depends on your individual vehicle. Professional installation is highly recommended. (No Instruction Included)
• Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
• Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• Make sure the oil drain line is lower than the turbo itself.
• Gasoline car must install a water cooling device to avoid overheating.
• Ensure exhaust outlet are well sealed by welding.
