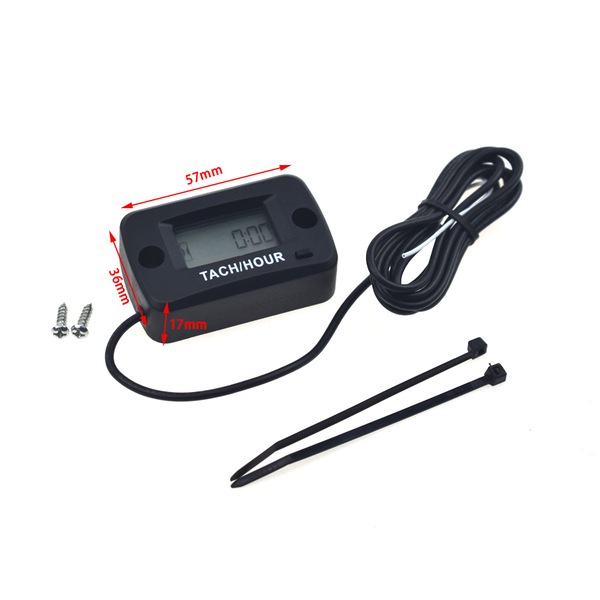

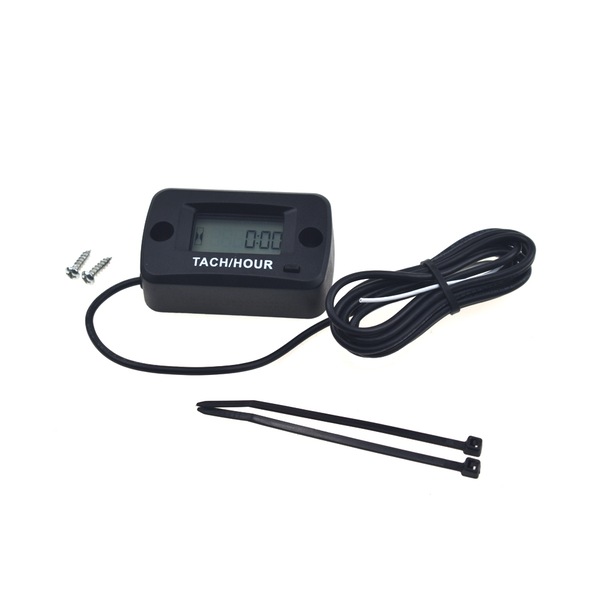

Tacho Tach Hour Meter Motorcycle Boat Mower Generator Engine For 2/4 Strokes Black

Image 1
Image 2
Hurry! 5 items left!
$24.99

Collect 24 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Above Toys
Secure ways to pay at checkout
Pay in 4 interest-free payments of $6.25 with Learn More

Settable Waterproof Inductive Tachometer Hour Meter For Motorcycle,ATV,Jet Ski,Snowmobile,Mower



Description:

  • 100% Brand new and high quality.
  • The induction wire is in full contact with the spark plug.
  • The maximum speed is 30000.
  • The maximum timing time is 999999.
  • Automatic recording of maximum speed.
  • The default time of cleaning air filter is 20 hours, and it is 20 hours after reset .
  • The default time for cleaning the oil filter is 30 hours, and it is 30 hours after reset.
  • The setting range of maintenance time is 0-1000 hours.
  • Use for:Motorcycle,ATV,Marine or any gasoline 2/4 stroke.
  • Speed type:1P1R=1 spark per revolution;2P1R=2 spark per revolution;3P1R=3 spark per revolution;4P1R=4 spark per revolution;6P1R=6 spark per revolution;8P1R=8 spark per revolution;3P2R=3 spark per 2 revolution;5P2R=5 spark per 2 revolution;1P2R=1 spark per 2 revolution.
  • Maintain Reminder function: the user can press the key to enter the setting mode under the maintenance reminder interface, and then the product can be operated.
  • When the cumulative working time reaches the user-defined setting time,The product will prompt the maintenance reminder.
  • The timing mode with reminder is countdown.
  • The product has the function of total timing, the total timing time cannot be cleared.
  • The product has the functions of single time cumulative timing 1 and single time cumulative timing 2. Long press the key in these two interfaces 2 seconds can clear the current timing time.

Features:

  • No power required-included CR2430 battery sealed inside.
  • Works on any gas engine.
  • Indicates operation in PRMs and Hours.
  • Resettable for current JOB time;total time not resettable.
  • 9 programmable firing patterns.
  • Record max RPM of engine.
  • programmable maintenance interval timer (SVC).
  • programmable Clean air filter timer.
  • programmable CHG oil timer.
  • Easy installation-includes double sided tape,screws,and fasteners.
  • Waterproof-IP68 Rating.

Hour meter installation method:

  • Select a contact point from the inductive pick-up line to the spark plug.The motorcycle is installed in the frame node on both sides of the steering column belt or screw on both sides.Note: do not install the product in an environment above 125 degrees
  • Mounting holes drill 1.750 inch apart center to center ,Drill two holes 7/64 inch. Don't use the oil pressure Drill holes in the crankcase of recoil cylinder, oil tank and engine
  • Wrap the other end of the signal wire around the spark plug wire for 3-5 turns and use a cable tie the end. If installed correctly, the hourglass on the LCD will flash and start timing automatically.

SKU: TL0116.black

Estimated Delivery Time Frame:1 - 7 business days
