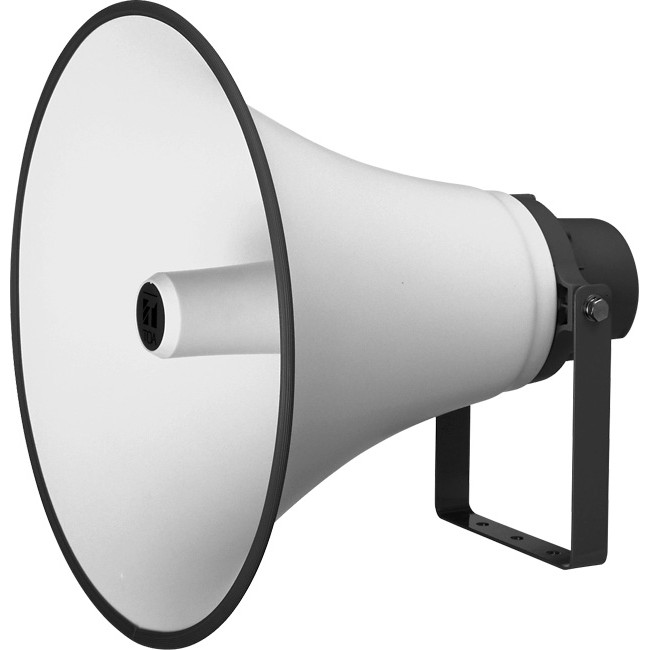

TOA TC631M 30Watt Reflex Horn Speaker 500Mm O/D 100V Indoor/ Outdoor

TOA TC631M 30Watt Reflex Horn Speaker 500Mm O/D 100V Indoor/ Outdoor

Hurry! 2 items left!

$296

Collect 296 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

TC SERIES TOA HORN SPEAKERS

TOA's TC Series reflex horn speakers are designed for both indoor andoutdoor paging applications as well as for background music reproduction.

The TC series is available in 15W and 30W models with high or low impedance connections.

TOA's TC Series Reflex Horn Speakers are designed for both indoor and outdoor paging applications, as well as for background music reproduction. The lineup includes four models rated at 15W (TC-615 and TC-615M) and 30W (TC-630 and TC-630M). The "M"-type models are designed for use in high-impedance (70V/100V lines) systems and standard models for low-impedance (TC-615/8, TC- 630/16) systems. This wide product lineup permitsselection of the ideal speaker for most applications.
TC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.
All speakers are designed to ensure high speech clarity and sound quality suitable for music reproduction.
All external hardware (screws, bolts, nuts) are made of stainless steel, and the mounting bracket and the horn itself are treated with 50-micron thick powder paint coating which is about three times thicker than that of the conventional horns. All of these factors combine to ensure the speaker's excellent weatherproofing and corrosion resistance. In addition, the external horn flare is made of aluminum that is more shockresistant than resin.
High-impedance models are equipped with an input impedance selector switch (4 steps for 100V line, and 5 steps for 70V line) which facilitates the ease of impedance settings without requiring disassembly. The switch is also equipped with an OFF position to prevent speaker damage resulting from incorrect impedance setting.

FEATURES:

Both high-impedance (70V/100V lines) models and low impedance (8/15W model, 16/30W model) models available.
Two power ratings: 15W and 30W.
Stainless steel hardware(screws, bolts, nuts), andpowdercoated horn and bracket ensure superb weatherproofing and corrosion-resistance.
Shock-resistant aluminum round horn.
Panel-mounted input impedance selector on highimpedance models facilitates the ease of input impedance matching.
Unobtrusive two-tone colors (off-white horn corresponding to RAL 9010 and gray driver unit corresponding to RAL7042) helps speakers blend into surroundings.
Compliance with IP65.

SPECIFICATIONS:

_	TC-615	TC-615M
Rated Input	15 W	15 W
Line Voltage	N/A	100 V line or 70 V line
Rated Impedance	8	100V line: 670 (15 W), 1 k (10 W), 2 k (5 W), 3.3 k (3 W) 70 V line: 330 (15 W), 670 (7.5 W), 1 k (5 W), 2 k (2.5 W), 3.3 k (1.5 W)
Sound Pressure Level	108 dB (1 W, 1m)
Frequency Response	250 - 7,000 Hz
IP Code	IP 65
Polarity	Hot: Black, Com: White
Operating Temperature	-20°C to +55°C (must be free from dew condensation)
Finish	Horn flare: Aluminum, off-white, powder coating__
Reflector horn and rear cover: ABS resin, off-white_
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating_
Rear cover: ABS resin, gray_
Screws and bolts: Stainless steel_
Speaker cable: Polyvinyl chloride insulated cabtyre cable_
(6 mm in diameter, 600 mm inlength)
Dimensions	ø400 (W) x 376 (D) mm
Weight	3 kg	3.2 kg

_	TC-630	TC-630M
Rated Input	30 W	30 W
Line Voltage	N/A	100 V line or 70 V line
Rated Impedance	8	100V line: 330 (30 W), 670 (15 W), 1 k (10 W), 2 k (5 W) 70 V line: 170 (30 W), 330 (15 W), 670 (7.5 W), 1 k (5 W), 2 k (2.5 W)
Sound Pressure Level	110 dB (1 W, 1m)
Frequency Response	200 - 6,000 Hz
IP Code	IP 65
Polarity	Hot: Black, Com: White
Operating Temperature	-20°C to +55°C (must be free from dew condensation)
Finish	Horn flare: Aluminum, off-white, powder coating__
Reflector horn and rear cover: ABS resin, off-white_
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating_
Rear cover: ABS resin, gray_
Screws and bolts: Stainless steel_
Speaker cable: Polyvinyl chloride insulated cabtyre cable_
(6 mm in diameter, 600 mm inlength)
Dimensions	ø500 (W) x 463 (D) mm
Weight	4.1 kg	4.5 kg
