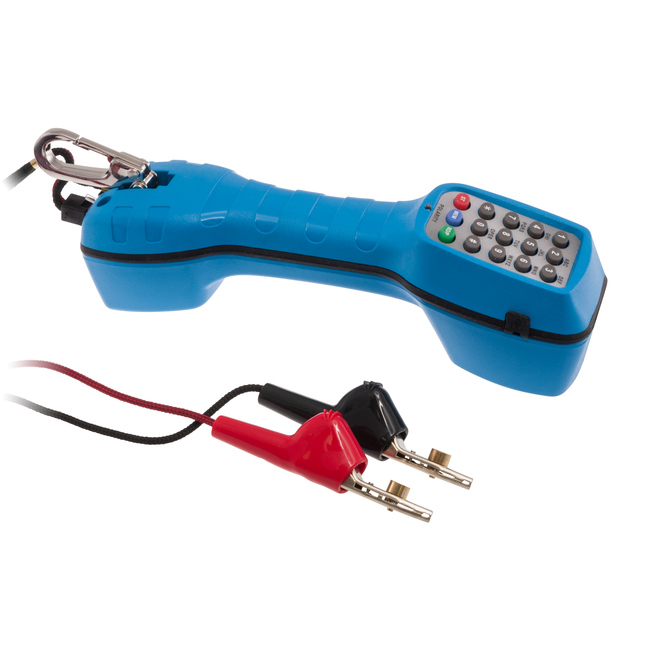

TCT1900BL Lineman Test Set Blue Colour Telephone Butt Phone Line-Powered Operation: No Extended

TCT1900BL Lineman Test Set Blue Colour Telephone Butt Phone Line-Powered Operation: No Extended

Hurry! 17 items left!

$176

Collect 176 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

This Lineman's Test Set is a new design to provide both DTMF and dial pulse output. The Lineman's Test Set features line-powered operation, so no extended power is required unless operating on low voltage or dry circuits. It is used by installers, repair technicians and other authorized personnel for line testing and temporary communications. Thepolarity LED provides immediate visual indication for Tip (+) and Ring (-) polarity.

Features

Three test modes
- Talk / Ring / Monitor
Switchable tone or pulse dialling
High impedance monitor will not interrupt data, conversation or signalling
LED indicator for reversed polarity
Memory for 10 numbers to be stored
Last number redial
- 31 digits maximum
Protection against over voltage
Transients ringer signals
Direct connection to most batteries and power supplies
Volume control
- 3-postition control for up to 12dBof gain
Spring loaded belt clip for easy carrying
Durable cloth covered cord equipped with securely anchored strain relief, modular RJ11X plug, and two five waytest clips
Water-resistant; extra protection against severe weather conditions
Space connector cord included

Specifications

Loop Limit	5k max at 48VDC (5k meter - 26Ga non loaded) nominal 15mA minimum loop current
DC Resistance	150 Typical at 80mA current
Monitor Impedence	Low impedance(Ring mode)	600 typical at 1kHz
High impedance (Monitor mode)	100k typcial at 1kHz
Rotary Dial Output	Pulsing Rate _	10 ± 0.5 pulses a second
Percent Break _	60% ± 2%
Interdigital Pause _	8.5ms Typical
Leakage During Break	>50k
DTMF Output	Tone Frequency Error	± 1.5%
Level Of Tone Pair	+2dBm max -8dBm min
Low vs High Tone Difference	-4dBm max
Physical	Dimensions (LxWxH)	22.4x7.12x7.0 cm
Weight	380g

*Specifications subject to change without notice
