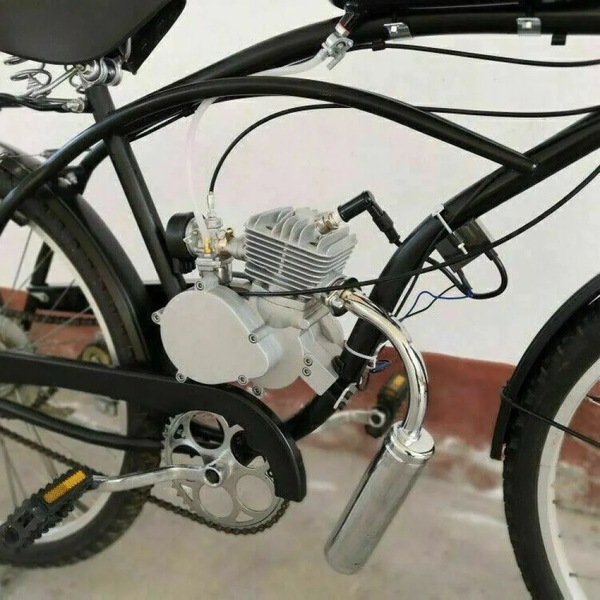

This single cylinder air cooled 2 stroke 100CC engine is made of aluminium which guarantees its high quality. Capacitive Discharge Ignition (CDI) assembly provides easy start and powerful performance at low fuel cost. There is no need for rope pulling, the motor will simply start and become powerful. The latest high compression slant head spark plug is for extra boost and throttle response. With 2L fuel tank, you can ride longer distance at a time of fuel-filling. Our carburetor has an air-tight design to avoid upsetting the fuel air ratio which can cause engine to overheat, poor performance, or excess vibration. There also comes with fuel filter to provide clean fuel, and chrome plated exhaust muffler to expel exhaust. Also zinc plated sprocket, heavy duty 415 chain, and chain idler pulley included in this kit guarantee smooth rotation. While the clutch and twist-grip throttle with kill switch provide easy start and stop of engine, changeable speed as well as safe operation.
There also comes with all necessary mounting brackets, gaskets and hardware for easy installation. Although a degree of mechanical knowledge and a few hours may be needed to install this bicycle engine kit, you will gain great satisfaction and pleasure out of building your own fun machine! If you are not mechanically inclined to install by yourself, you still can enjoy fun riding by asking your local bike shop to perform the installation!
Besides high quality, compact size, powerful performance, low consumption; this engine kit will take thousands of cars off our overcrowded roads and save thousands of liters of precious fossil fuel not to mention the lower gas emissions of mopeds. With it, you will enjoy many thousand kilometres of reliable, economical and quiet riding. Hurry up, don't miss this smart purchasing.
Product Specification
Engine Type: 2 stroke Single Cylinder Air-Cooled
Bore & Stroke: 50mm x 40mm
Max Power: 6 - 6.5 Horsepower, 5000R/MIN
Compression Ratio: 7:1
Ignition: CDI
Start: Kick Start
Tank Size: 2 Litres
Fuel Consumption: 2.5-3.5L/100Km
Speed: up to 50KM/Hr. Depending On bike size, weight & road Conditions
Type Of Clutch: Rub Bloc Drying
Fuel: Unleaded 91 PETROL Mixed with 2 stroke oil
Start : Kick Start
Tank Capacity: 2L
Lubrication Oil: Two Stroke Oil
Max Speed: 45km/h - 55 km/h
Mixing Ratio of Fuel and Engine oil: 20:1 for new set, 25:1 after 500km

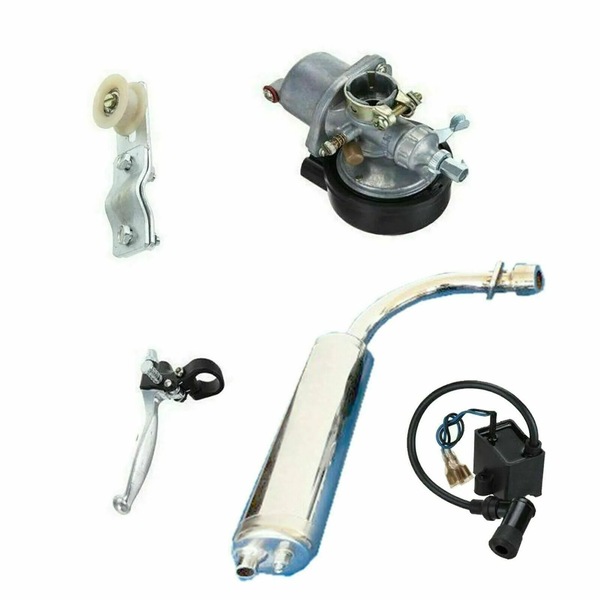

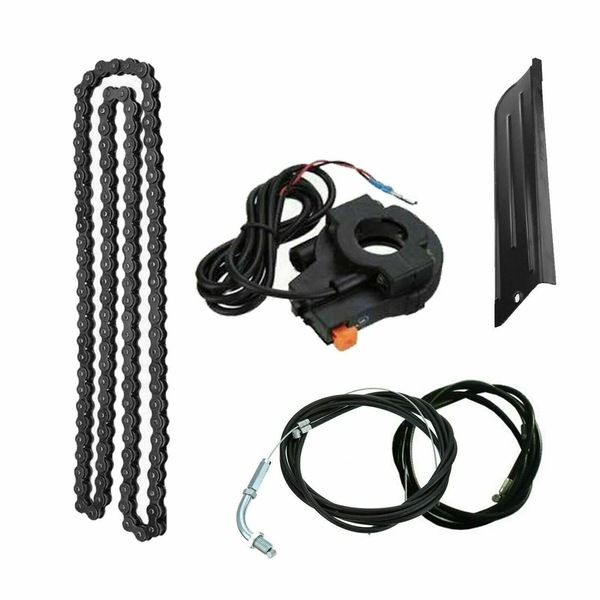

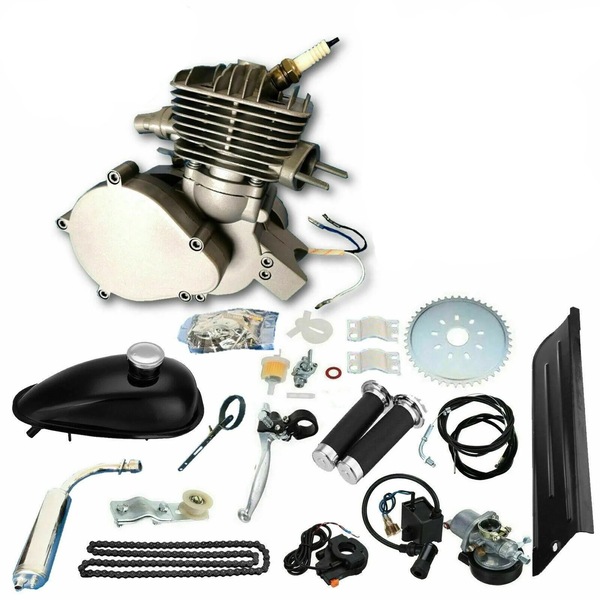

Package included as below:
1 × Spark Plug
1 × Chain Guard
1 × Chrome Muffler
1 × Drive Chain Idler
1 × Push Clutch Lever
1 × Standard Bike Chain

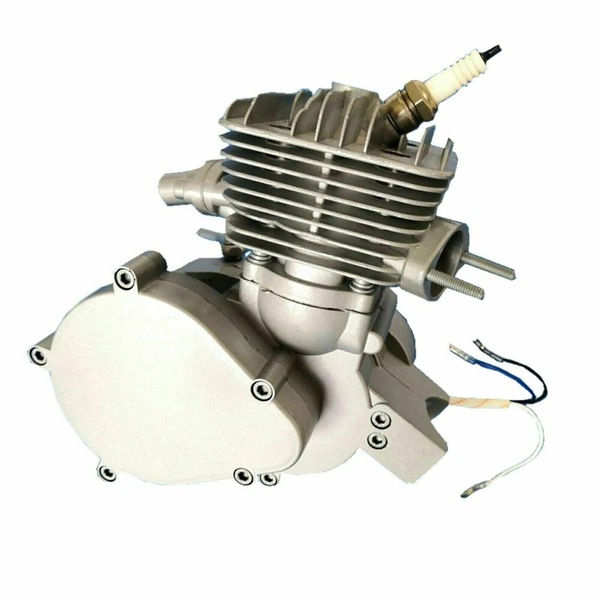

1 × 100CC 2-Stroke Engine
1 × CD Ignition Assembly
1 × High Quality Main Bearings
1 × Black Teardrop Gas Tank (2L)
1 × Carburetor

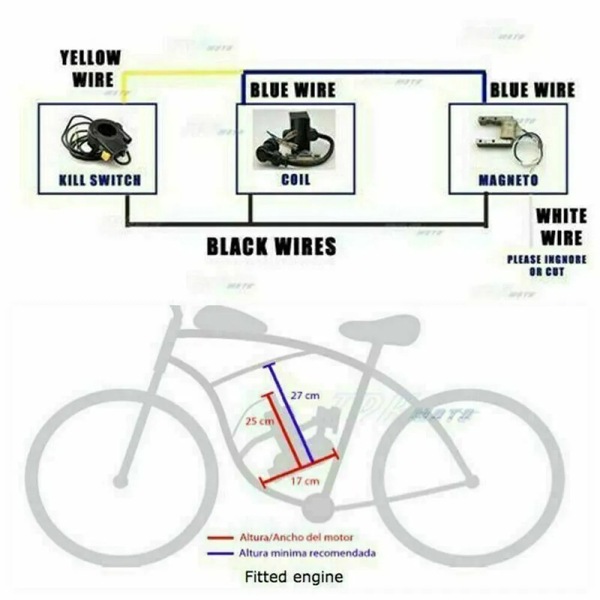

1 × Magneto With Kill Switch (on throttle)
1 × Sprocket
1 × Twist Throttle And Cable With Matching Grip
Notes:
Speed limit & KM Range depend on weight, road and weather conditions
This kit only for standard bike and not suitable for front frame which wider than 50mm
All the products were taken in-kind, due to camera, light, display parameters and other factors, there may have colour aberration.
Professional installation recommended
Recommend for OFF ROAD USE, BIKE NOT INCLUDED, THIS LISTING ONLY FOR ENGINE KIT

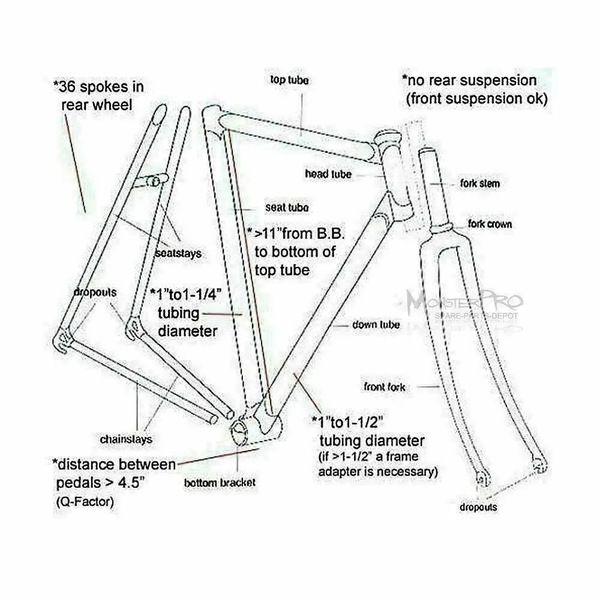

Please check the frame sizes before purchase
Please note that this engine is the new generation, there are a small screw in the package which can be screwed straight on the arm of lock, no longer brass bit needed.
Shipping Surcharge may apply to some regional areas, please kindly contact us for confirmation. Otherwise, shipping invoice will be sent after purchased.
20% restocking fee will be applied for returning, please kindly check before purchase to avoid any inconvenience.
U Bracket is not included, you may need to buy it separately if your bike needed.
IMPORTANT FOR ALL NEW MOTORS :
For the first 2 to 4 tanks of fuel, avoid using more than 3/4 throttle .
Always avert high engine speeds .
2 stroke mixing oil is very important and must be done right to the right ratio . we recommend 15:1 for the first 3 tanks ,25:1 after that .
Stop half hour riding to cool down the engine .
Poorly broken in motor will see mediocre gas mileage and lower performance, or even making piston seized, Please make sure you break in correctly.
Shipping Details
98% of products are dispatched within 1-2 business days. Ensure your address is correct during checkout. To aid in the speed of delivery, our system cannot accept order cancellations following payment. Allow 4 - 20 business days for Australian wide delivery.
Residential address will be required.
We will use Australia Post, Fastway and other courier services. If the buyer has a preferred service, please contact us after you have placed your order. If no message received, freight carriers will be selected according to buyer's location.
If buyer is unavailable at the time of delivery, a calling card will be left. Please reply to the calling card in time to avoid returns. Re-delivery fee will be charged for items that need re-delivery.
All returns must be accompanied with the buyer’s name and return reasons. Items returned without detailed information will be delayed in processing or be ignored.
If the buyer had a wrong purchase or changed their mind please contact us within 30 days after the original transaction date. Products must be returned at the buyer's cost in 100% complete condition, including all components, original boxes, manuals, and other accessories provided by the manufacturer.
Original Freight costs are not refundable under any circumstances. For free shipping items, the original shipping cost will also be deducted from the purchase amount.
We are not responsible for the return shipping cost of items. Buyers are responsible for paying the return shipping.
If the item was received defective or was sent wrong, please contact us with photo evidence within 14 days of item received. The defective/wrong item may need to be returned to us and the replacement will be sent at our cost.
Please choose carefully as we don't honor change of mind. We will review this on a case-by-case basis and we hold the right to refuse a return if we deem to be unsatisfactory.
