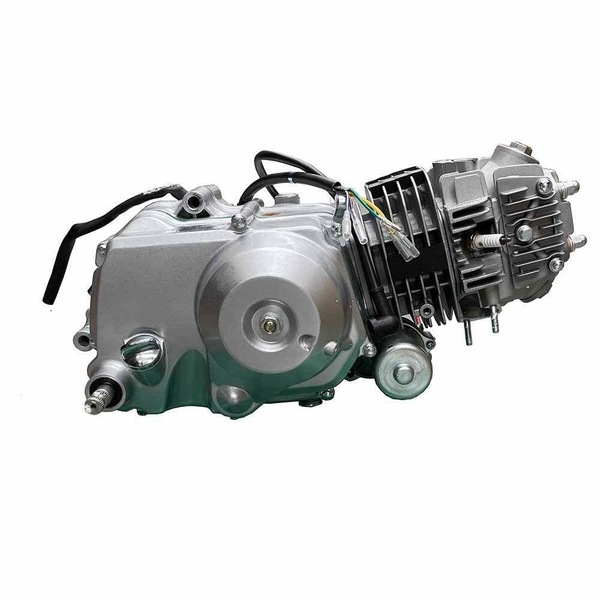

Brand New 125cc Semi Auto Engine -- Kick and Electric Start
Will be a straight bolt on for most postie bikes, however, for certain year model a rear bracket may need to be made to make it fit.
Please check the measurement provided below to make sure before purchase.
If your postie bike needs a bracket, it is available in our store.

Engine Specs:

Single cylinder, 4-stroke, 2 valves, air cooled, 125cc
Bore x Stroke: 52.4mm x 55.5mm.
Displacement: 123.7cc
Compression Ratio: 9.0:1
Ignition: CDI, 12-volt, permanent magnetic stator
Maximum Power: 8.5 Kw DIN @ 9,500 rpm
Rated Power: 6.5 Kw @ 7,500 rpm
Torque: at least 8.8 Nm @ 5,500 rpm
Gears: 4-speed, semi auto clutch, 4 UP Pattern.
Final Drive: 15 tooth #428 front sprocket (also have another sized sprocket which can be replaced upon request)
Lubrication: 900ml, 20W/50 4-stroke motorcycle oil, pressure and splash
Fuel: Unleaded
Engine Mounts: 8mm

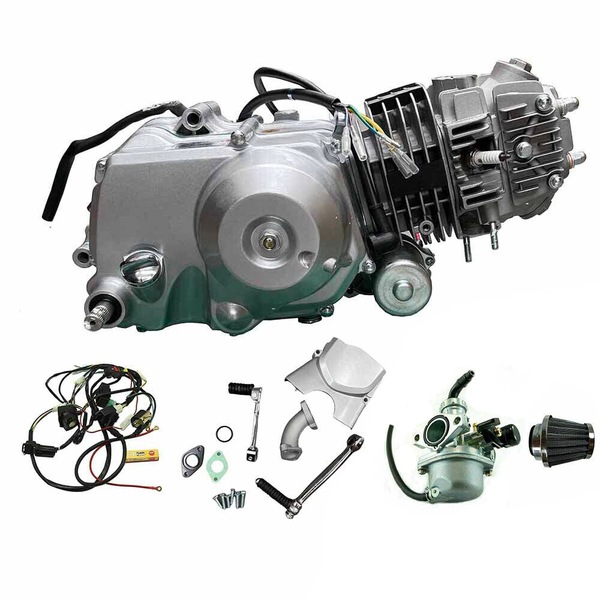

Package including:

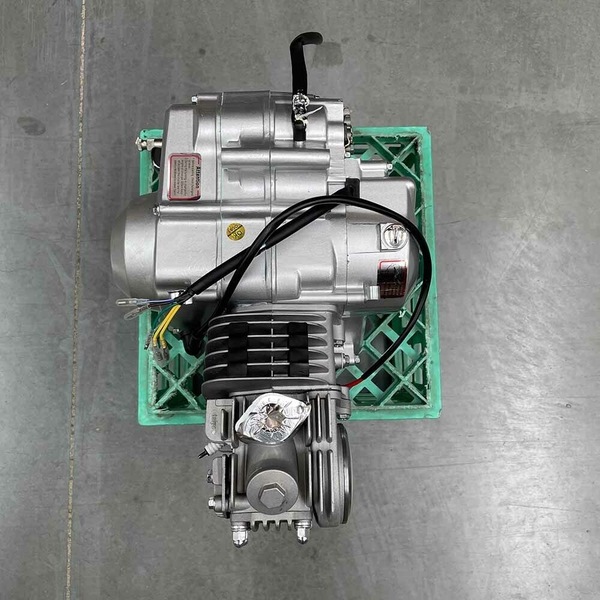

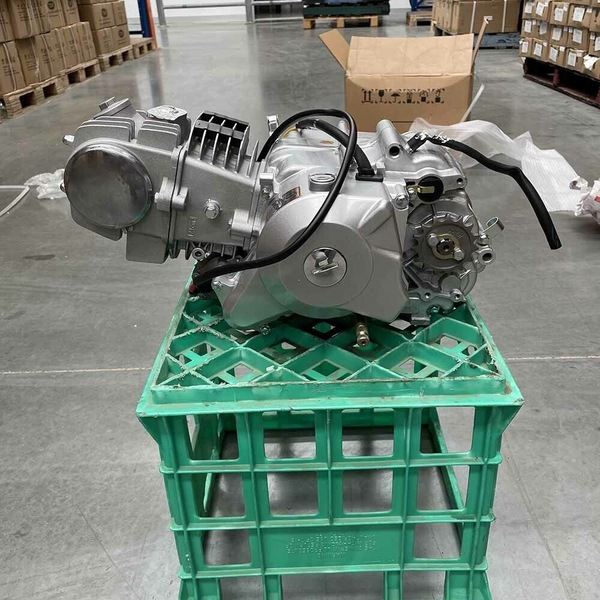

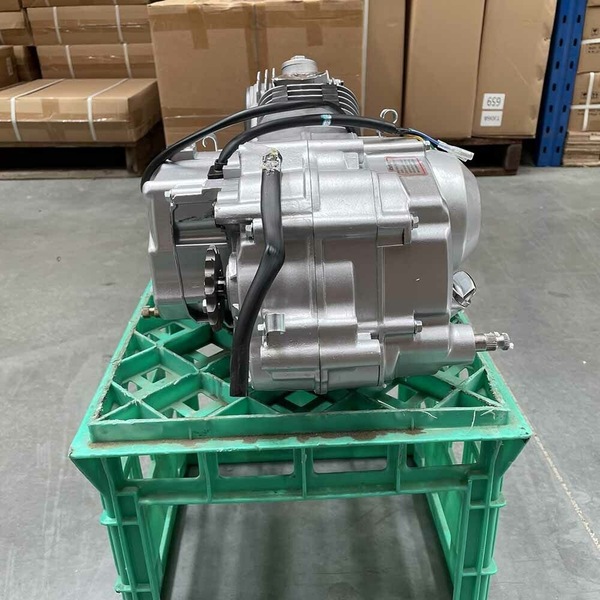

1 x 125CC semi auto ENGINE with starter motor at the bottom

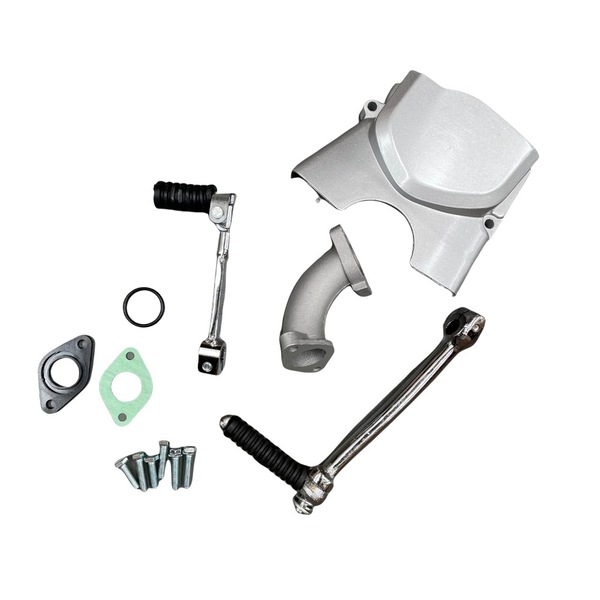

1 x Kick Starter Lever
1 x Gear Shift Lever
1 x Manifold set Package
1 x 22mm PZ22 Carby

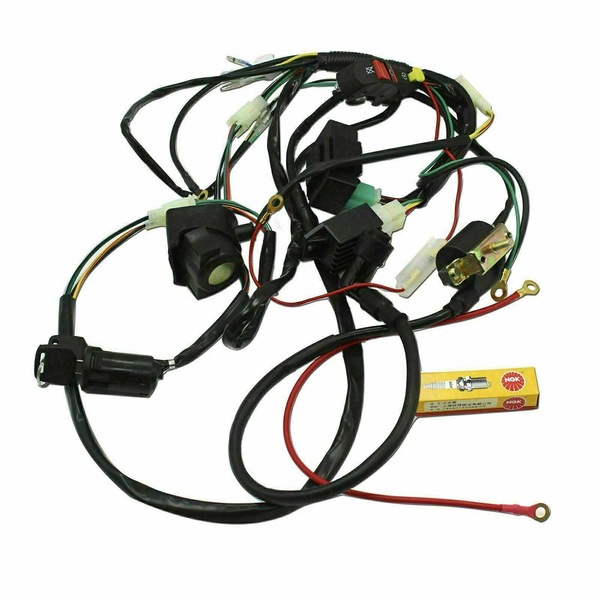

1 set of wiring harness, kill switch, cdi, coil
1 x 38mm pod filter in black or red according to stock availability

Measurement:

Dimension: 470 x 275 x 280mm
Weight: 20.72kg

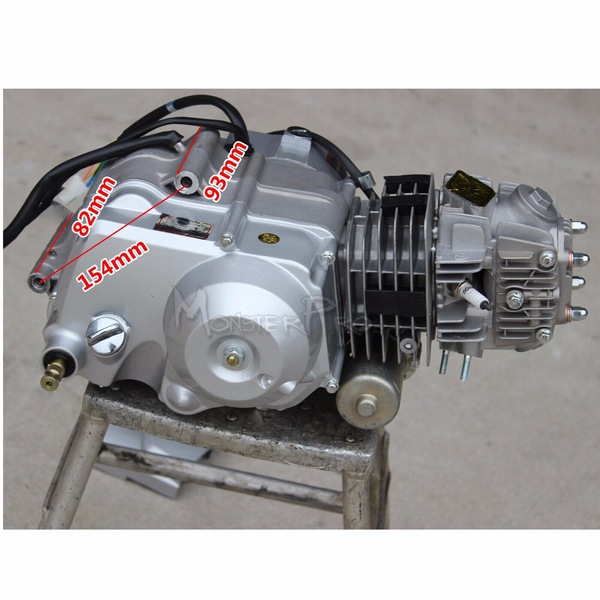

Measurement of mounting as shown on gallery picture
Engine mounts: 8mm

GTIN: 9356695088450

Estimated Delivery Time Frame:5
