TDR 1500W Electric Bike Conversion Kit Fit 26x4.00 Fat Snow Bike, Rear Wheel Motor Kit, 48V Brushless Hub, 60km/h Speed, Pedal Assist, Twist Throttle, Disc Brake, 170mm Fork Width, 6-7 Speed Freewheel

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Hurry! 3 items left!
$569.95

Collect 569 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Electric bike conversion kit equipped with a 1500W Brushless Motor that reaches speeds up to 60km per hour. Our electric bike conversion kit and electric bicycle kit contain a twist throttle and 12 magnets Pedal Assistant System. They are very helpful, even if on steep hills place. You can ride it very comfortably.

Specifications:
For Fat Bike with 26-inch x 4-inch Wheel

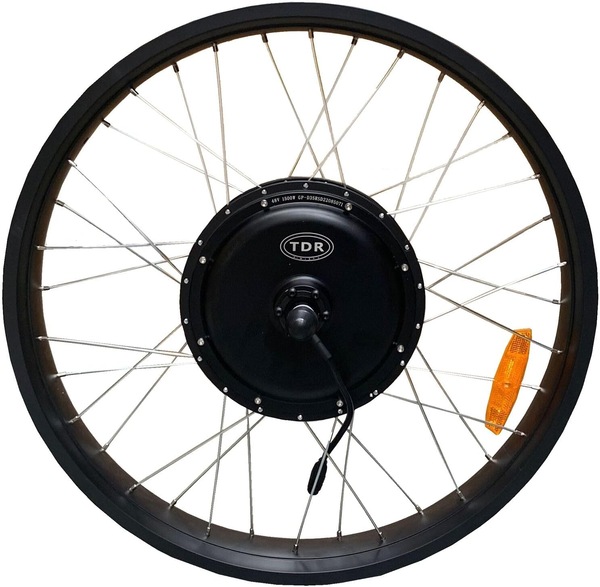

Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
Torque: 65 N.M

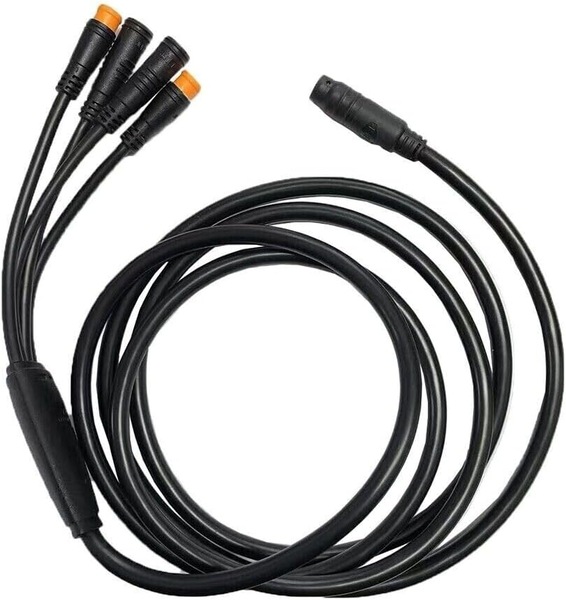

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 60 km/h

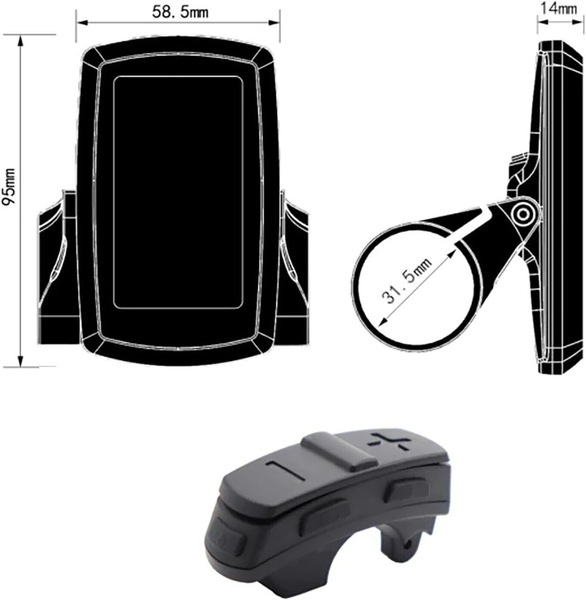

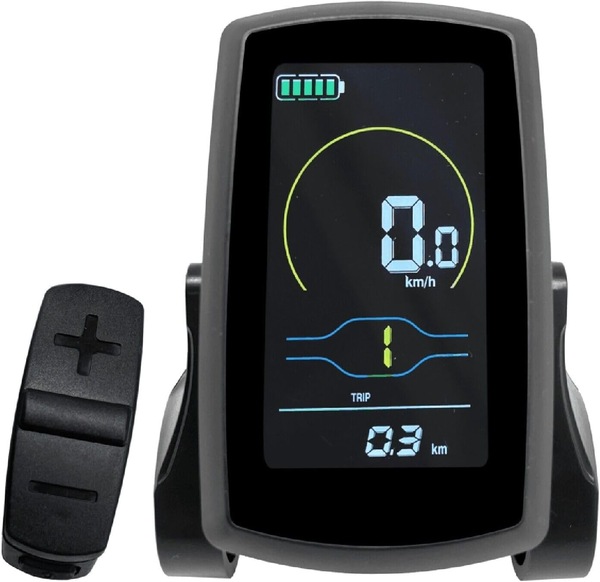

Display: Intelligent Colorful LCD Panel Display
Controller: Intelligent Motor Controller, the Current is 35±1A
Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
Rear Fork Width Requirement: 170mm
Disk Brake Only with 6 Holes to Mount the Disc Rotor

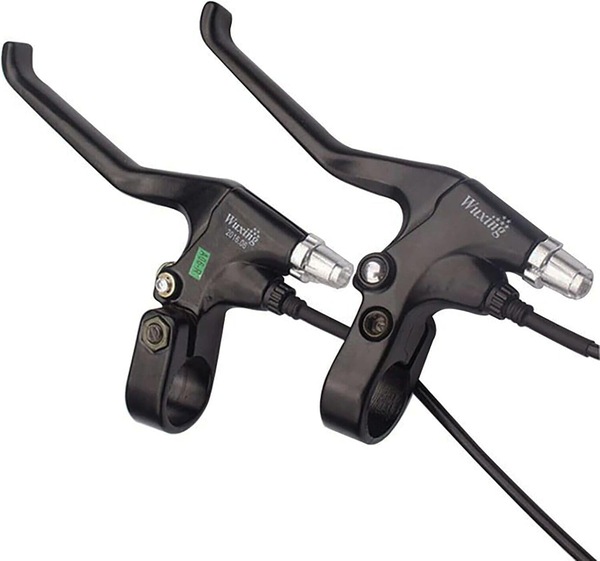

Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

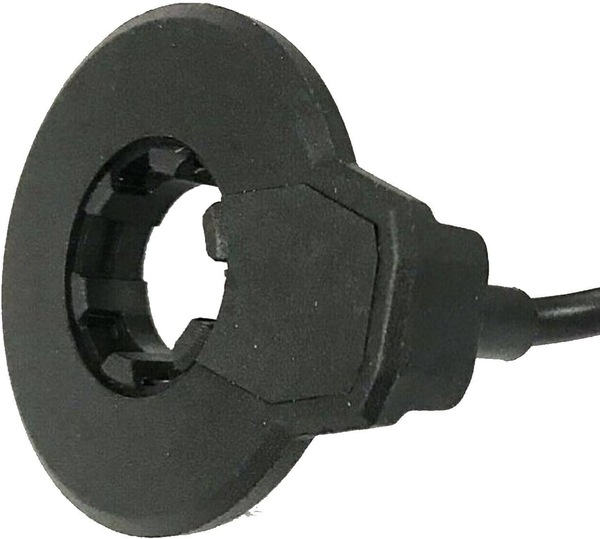

PAS Sensor: 12 Magnets Pedal Assist Sensor

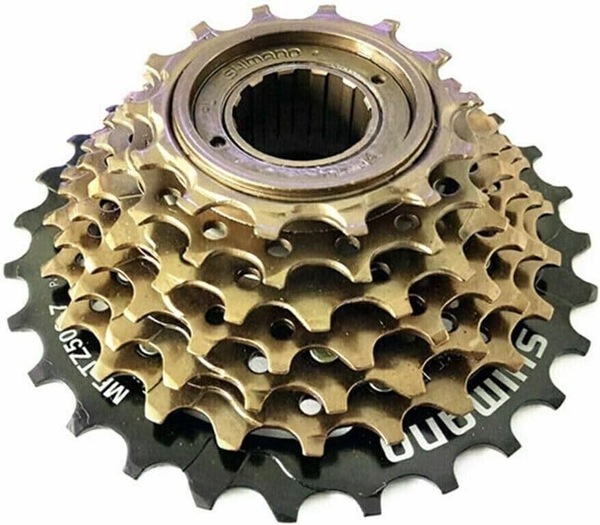

Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
12 Months Warranty on the Motor

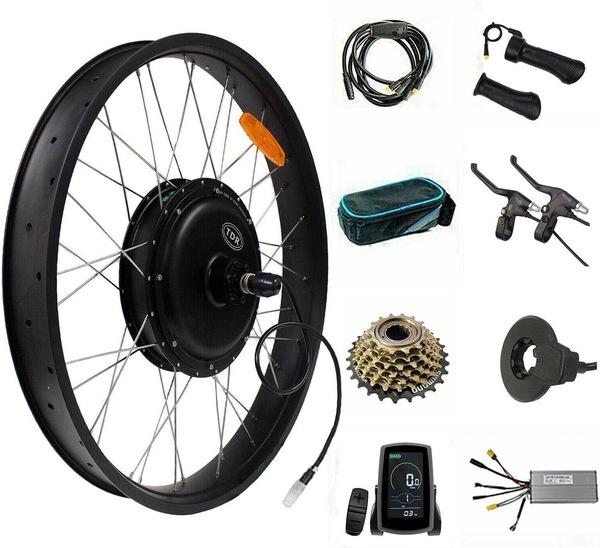

Package Include :
1x 48V 1500W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Bag
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers

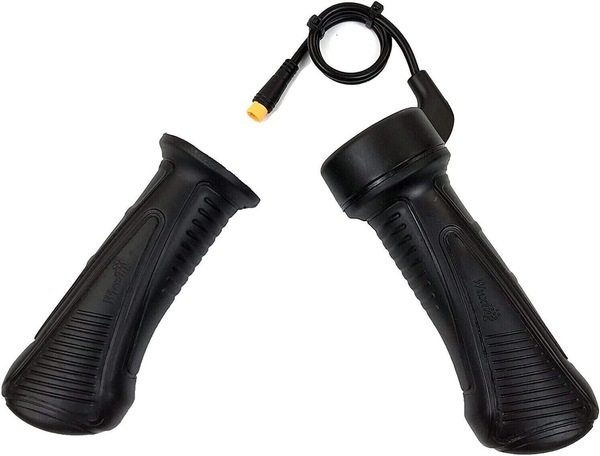

1x Twist Throttle
1x LCD Display
1x Cable Ties Set
1x Manual
1x 6 or 7 Speed Freewheel

Important Notes:
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (170mm) to make the motor hub can be fitted into it.
Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

GTIN: 9356695006522
