TDR 26 Inch 48V 500W Front Wheel Hub Motor Conversion Electric Bike Kit for 1.75 to 2.25 Inch Wide Tires

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 5 items left!
$439.95

Collect 439 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 30/08/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Specifications
For Front 26 Inch wheel with a width between 1.75 to 2.25 Inch
Rim Motor: Front 48V 500W Brushless Gear Hub Motor
Wiring Method: Waterproof Wire Connection System
Maximum Speed: 40 km/h
Torque: 55 N.M
Display: Intelligent Colourful LCD Panel Display
Controller: Intelligent Motor Controller, the Current is 22±1A
Riding mode: Thumb Throttle Electric Assist Mode, Pedal Assist Mode
Front Fork Width Requirement: 98mm - 102mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
Brake levers: Aluminium Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

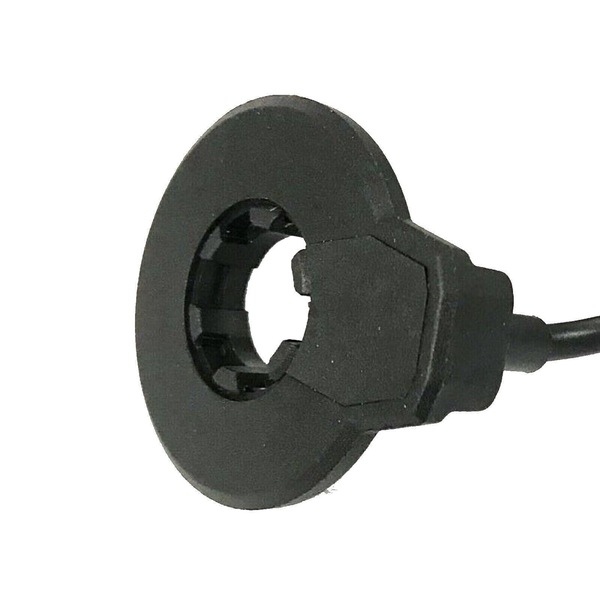

PAS Sensor: 12 Magnets Pedal Assist Sensor
12 Months Warranty on the Motor

Package Include:
1x 48V 500W Front Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Thumb Throttle
1x LCD Display
1x Cable Ties Set
1x Manual

Important Notes:
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your Front fork width (98 - 102mm) to make the motor hub can be fitted into it.
Battery and charger are not included in this listing. Our 500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 22A and a nominal capacity of not less than 15Ah.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road legal. 500W Motor is not path-legal, this product is recommended for off-road or private property use only.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

GTIN: 9356695096363

Estimated Delivery Time Frame:5

Ask a Question About This Product

Reference ID: 13681693
