TDR 2pcs 16100-2RS Deep Groove Ball Bearing 10mm x 28mm x 8mm Double Sealed Chrome Steel for Industrial Equipment

Image 1
Image 2
Image 3
Image 4
Hurry! 14 items left!
$16.95

Collect 16 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 30/08/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Description:

  • Single-row, pre-lubricated, normal accuracy.

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.

  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.

  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.

  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.


Selecting Guide:

  • Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

  • Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.


Specification:

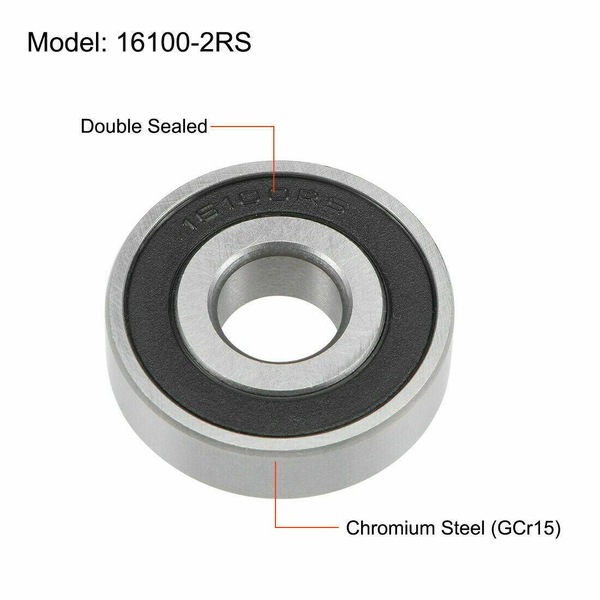

  • Model: 16100-2RS

  • Seal Type: Double Sealed

  • Inner Race/Outer Race Material: Chrome Steel (GCr15)

  • Cage Material: Stamping Steel

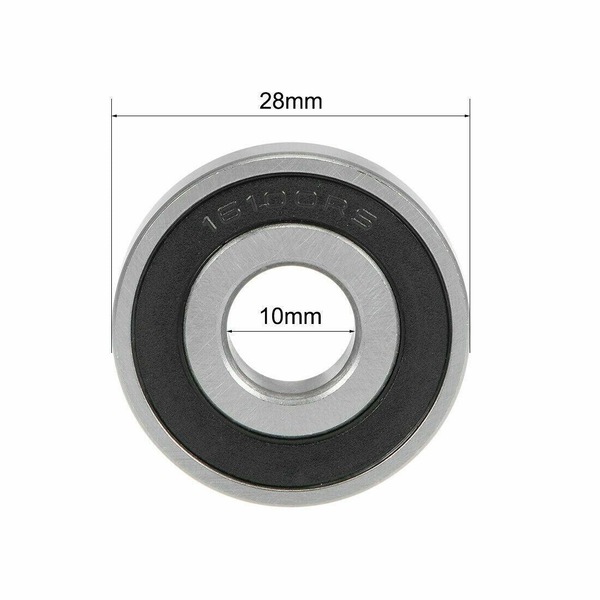

  • Inner Diameter (d): 10mm

  • Outer Diameter (D): 28mm

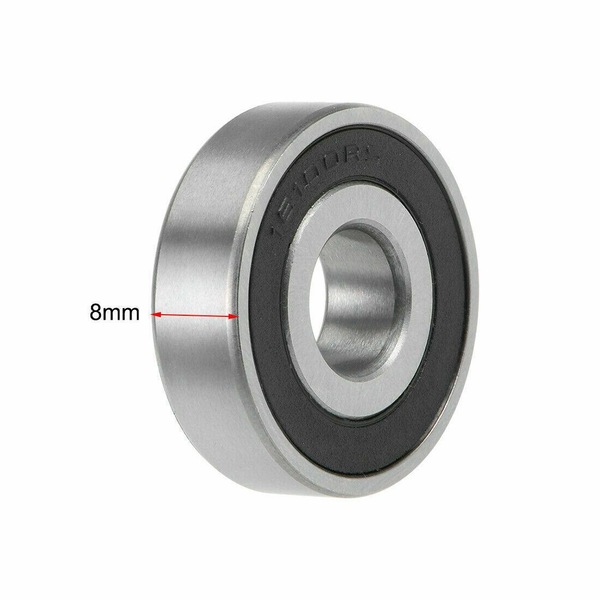

  • Thickness: 8mm

  • Dynamic Load Rating (Cr): 5.07kN

  • Static Load Rating (Cor): 2.36kN

  • Accuracy Class: P0 (ABEC-1)

  • Noise Level: Z1

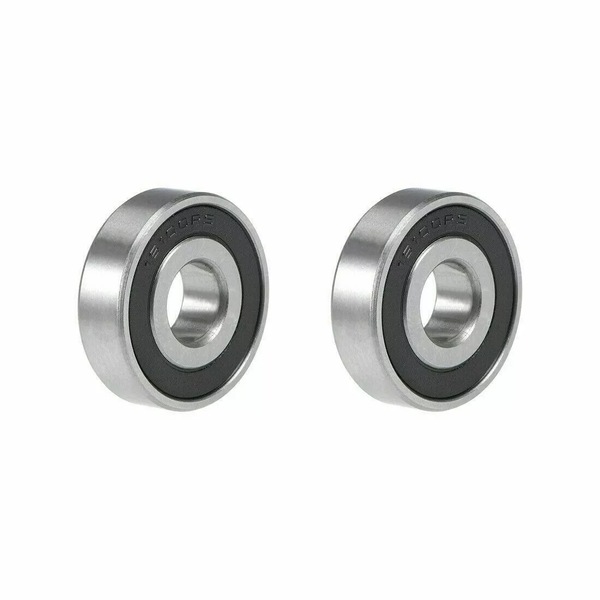

  • Number of Pack: 2 pc


Important note:

  • Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing).

  • Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

GTIN: 9356695088917
