TDR 36V 250W Electric Bike Conversion Kit, Road Legal 28" / 29" / 700C Front Hub Motor with 13Ah Downtube Battery, Waterproof Wiring, Pedal Assist, Disc V Brake Compatible

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Hurry! 3 items left!
$689.95

Collect 689 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Description:

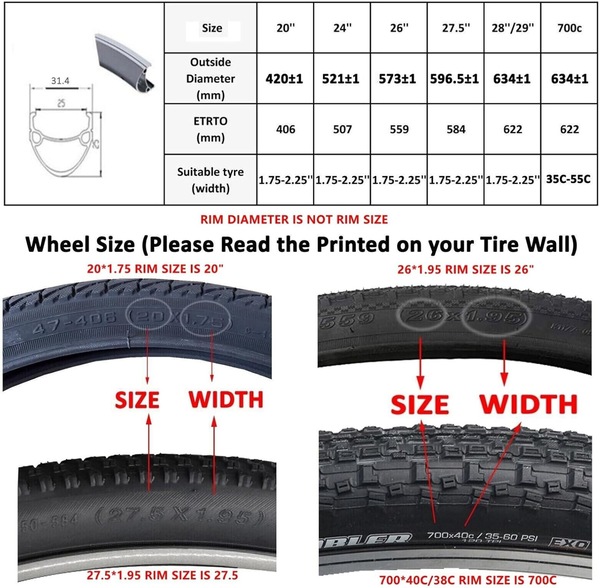

  • Wheel Size: 28"/29"/700C Front wheel (Suitable for tyre width size 1.50 to 2.25)

  • Motor: 36V 250W Brushless gear hub motor in black colour

  • Wiring method: waterproof wire connection system

  • Battery range: +/-50km per power in pedal assist mode

  • Speed: Up to 25 km/h

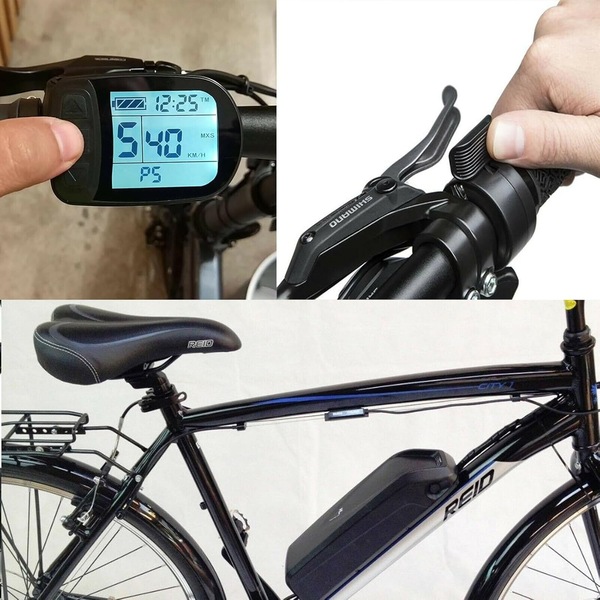

  • Display: KT LCD5

  • Controller: KT Brand Controller

  • Riding mode: Thumb throttle electric assist mode /Pedal Assist mode

  • Front fork width requirement: 98-102mm

  • Suitable for Disk Brake and V brake to use


Specifications:

  • Motor: 36V 250W Front hub brushless gear motor, bending magnet and more efficient

  • Brake levers: aluminium alloy, Wuxing E-brake lever

  • Rim and spokes: P25DE Alloy double wall rim CNC sidewalls, with 12g steel spokes

  • Controller: KT Brand 36V controller in controller box, maximum current rate: 14±1A

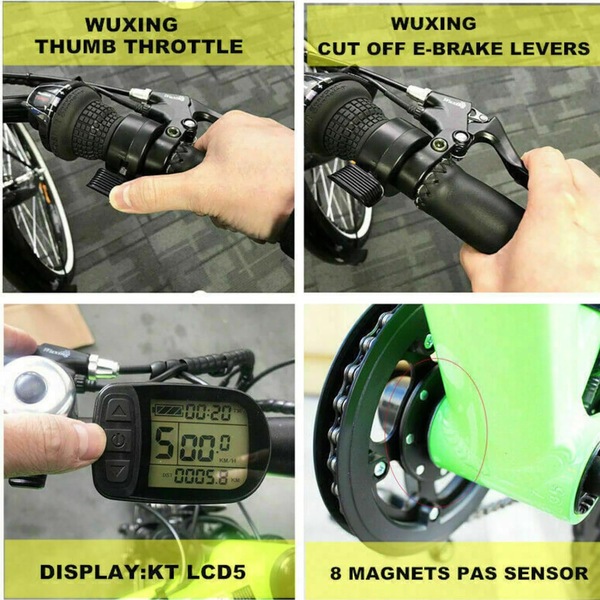

  • Throttle: Thumb (Finger) Throttle, Wuxing brand

  • PAS Sensor: 8 Magnet

  • Display: KT LCD5, Show all basic information and DIY setting

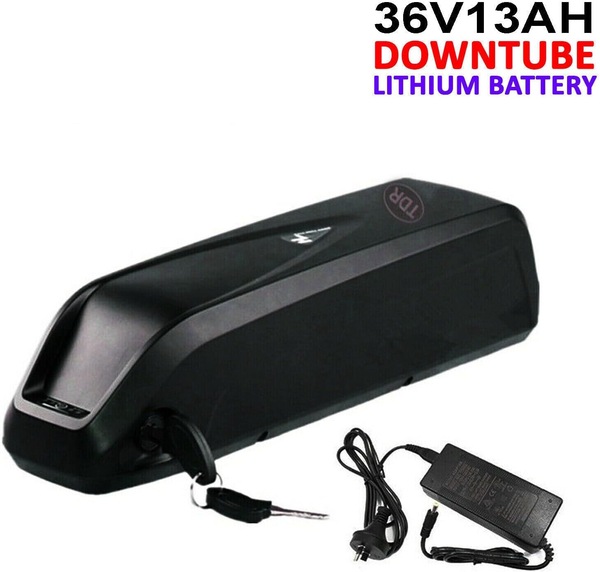

  • Battery: 36V Lithium-ion Battery, light weight and reliable

  • Riding Range: Max 40km(10AH)/ 50km(13AH) / 60km(15Ah) / 72 km(18Ah) when using Pedal Assist Mode on ou

  • Charger: More than 1000 times cycle-life and Australia safety standard


Key feature:

  • Built to the highest international standards, CE

  • Powerful 250W36V brushless hub motor

  • Alloy rim & steel spoke & aluminium alloy powerful controller

  • Aluminium alloy powerful controller guarantees big current supply

  • Thumb Throttle with waterproof cables has battery level and power-cut off

  • Brake Levers cut off the power supply to the motor safely

  • Downtube battery 36V gives more power and runs more distance w' reliable quality

  • Charger with more than 1000 times cycle-life. Australia Safety standard.


KT brand controller features:

  • Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural

  • Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost

  • With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic

  • KT LCD5 Display functions: battery level indicator (4 bars), 3 speed display modes (current, maximum, average), traction help up to 6km / h, odometer, trip duration display

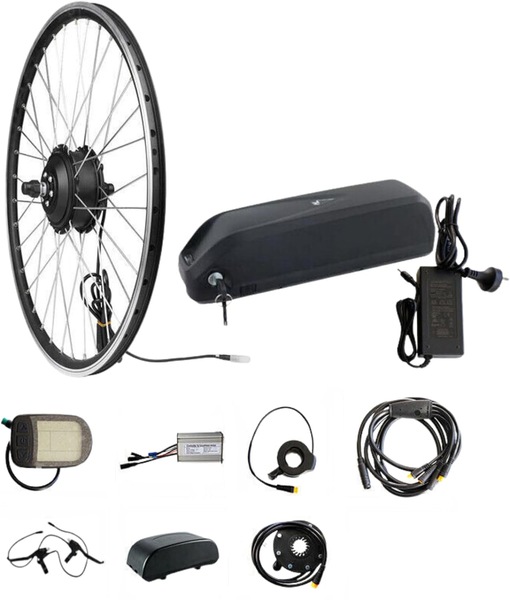

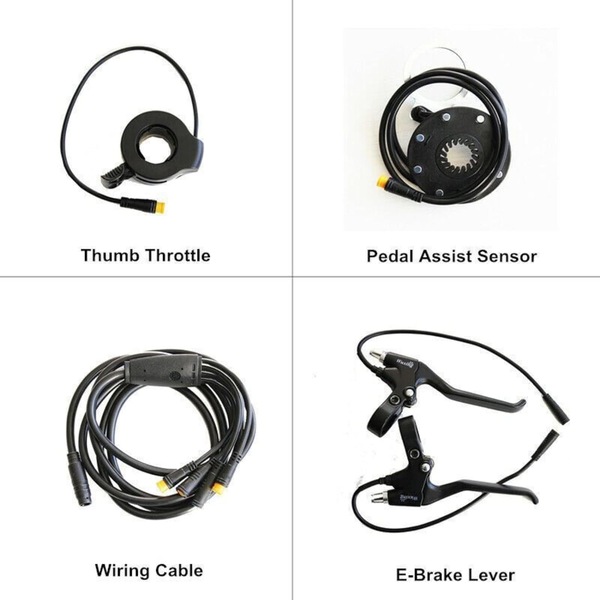

Package Includes:

  • 1 x 26" front rim (36V 250W motor)

  • 1 x Controller

  • 1 x LCD display

  • 1 x Pair e-brake levers

  • 1 x Thumb throttle

  • 1 x PAS sensor set

  • 1 x Wiring cable

  • 1 x Controller box

  • 1 x Installation manual

  • 1 x 13AH Downtube Battery & charger


Important notes:

  • Professional installation is highly recommended, some basic tools will be required to install this DIY kit

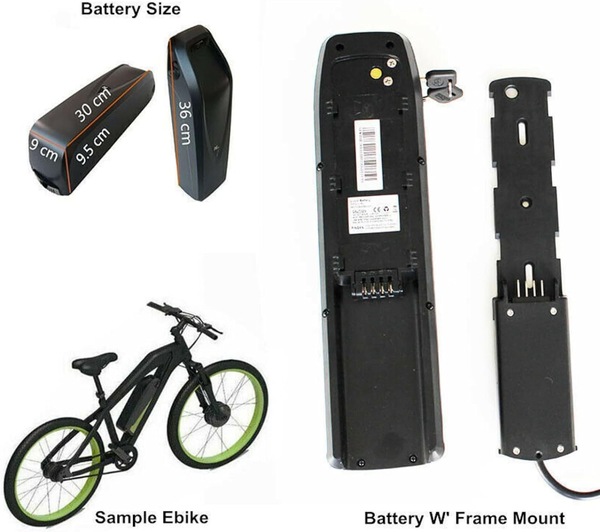

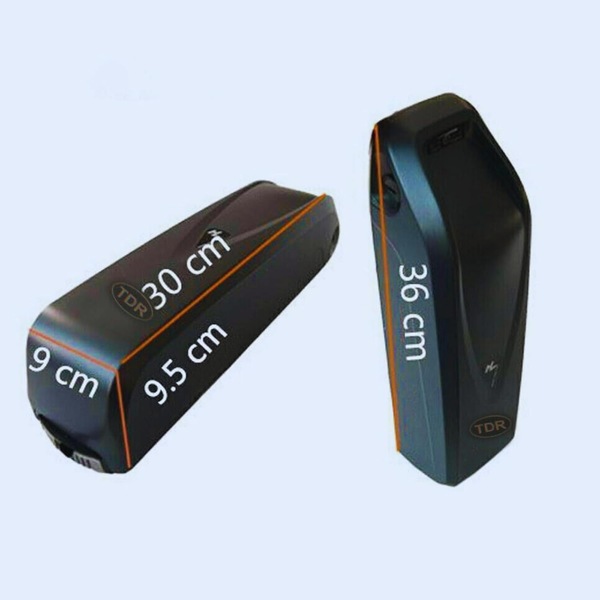

  • Please check the battery sizes and make sure it can fit your bike triangle frame
