TDR 48V 1500W 26 Inch Rear Hub Electric Bike Conversion Kit DIY E-Bicycle, Intelligent LCD Display Twist Throttle Pedal Assist System

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 10 items left!
$499.95

Collect 499 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

For 26 Inch wheel with a width between 1.75 - 2.25 Inch

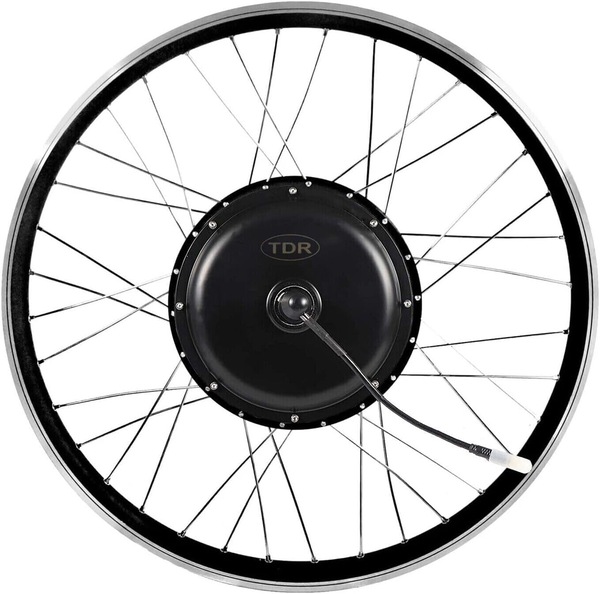

Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
Torque: 65 N.M

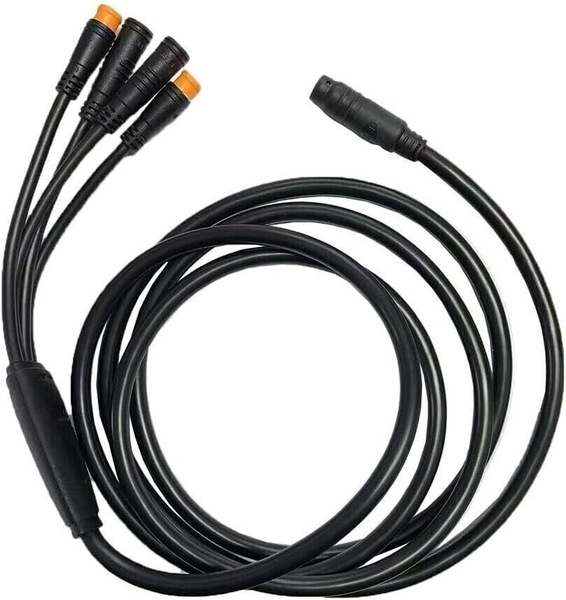

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 60 km/h
Display: Intelligent Colourful LCD Panel Display

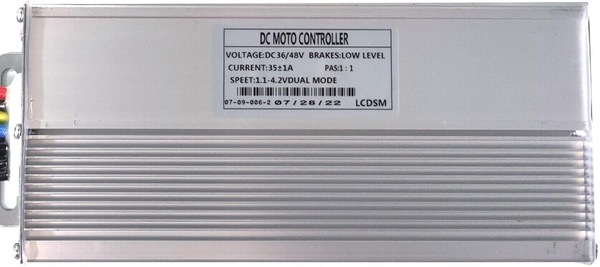

Controller: Intelligent Motor Controller, the Current is 35±1A
Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System.

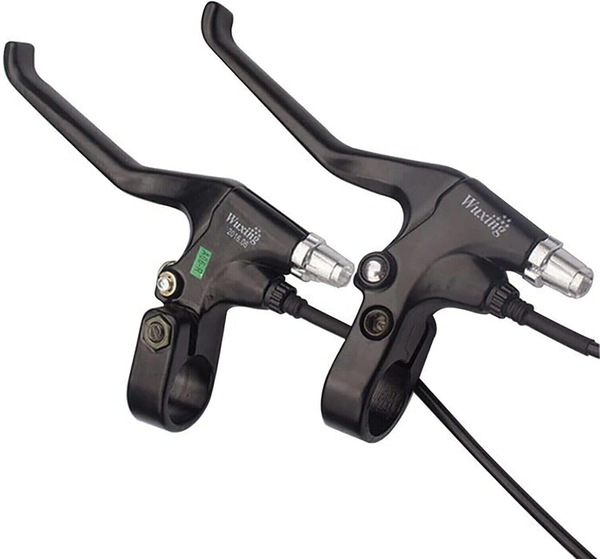

Brake levers: Aluminium Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

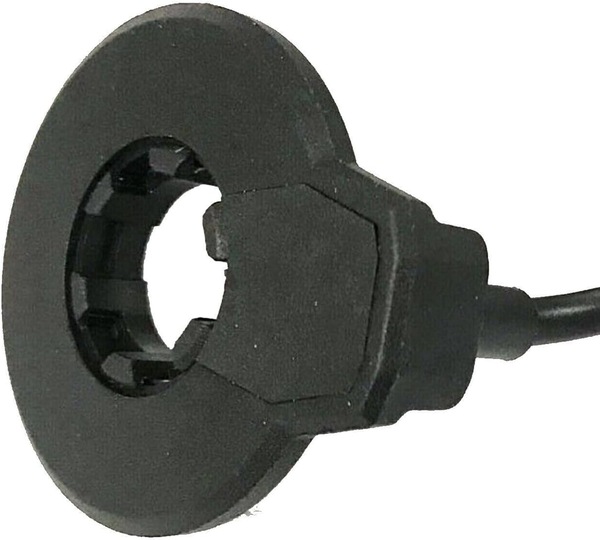

PAS Sensor: 12 Magnets Pedal Assist Sensor
Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel
12 Months Warranty on the Motor

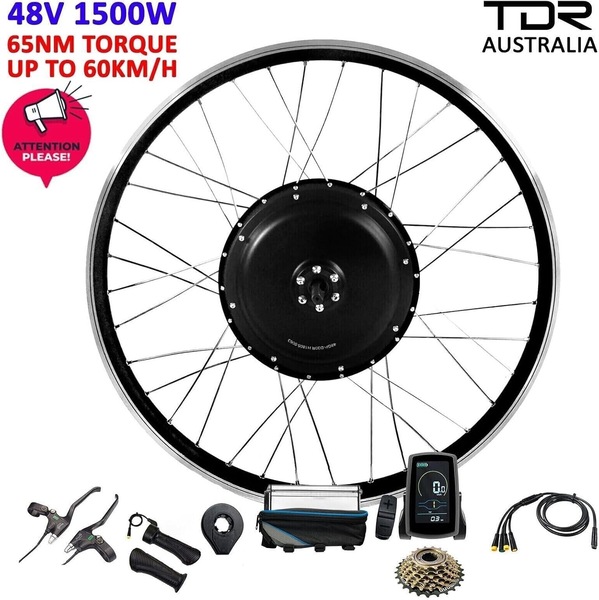

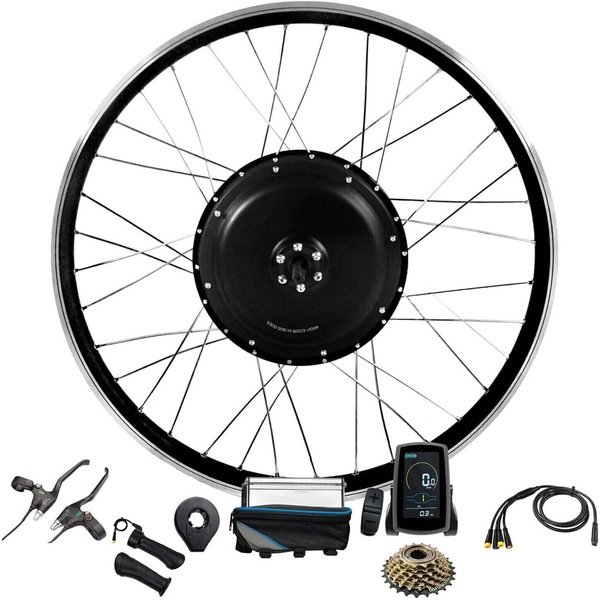

Package Include:
1x 48V 1500W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Twist Throttle
1x LCD Display
1x Cable Ties Set
1x Manual
1x 6 or 7 Speed Freewheel

Important Notes:

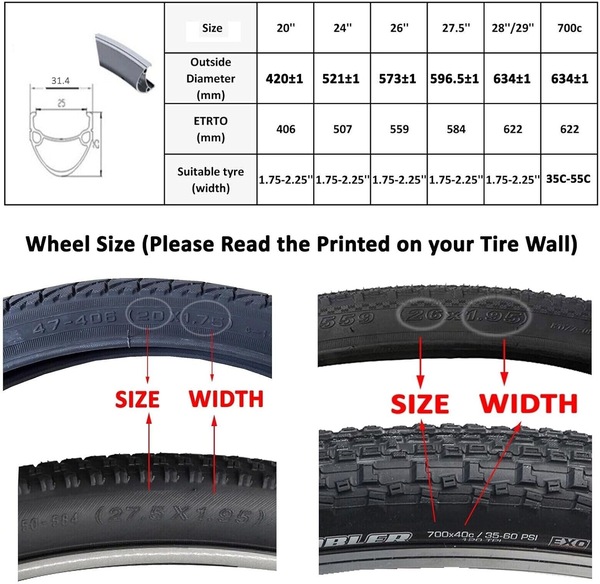

Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
Battery and charger are not included in this listing. Our 1500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 35A and a nominal capacity of not less than 15Ah.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

GTIN: 9356695012837
