TDR 48V 1500W E Bike Conversion Kit for 26 Inch Rear Wheel with 20AH Downtube Battery Intelligent LCD Display Twist Throttle Pedal Assist

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Hurry! 15 items left!
$1249.95

Collect 1249 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

For 26 Inch wheel with a width between 1.75 - 2.25 Inch

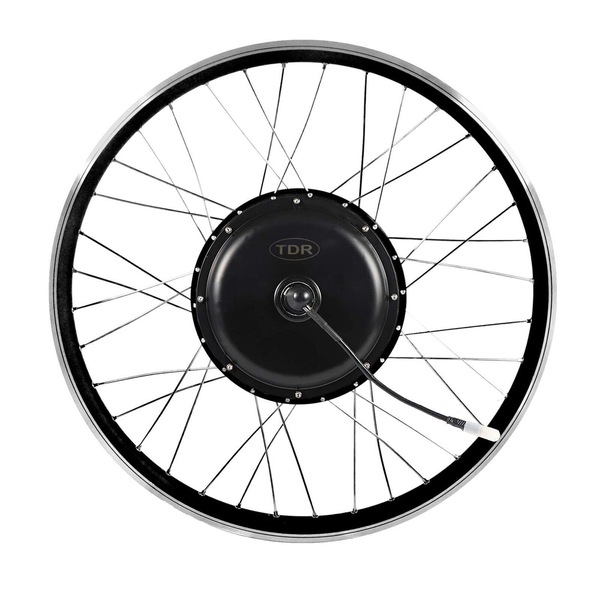

Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor
Torque: 65 N.M

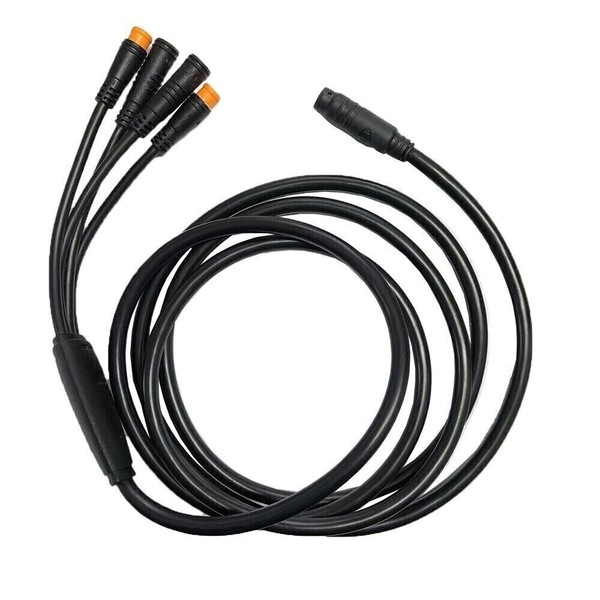

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 60 km/h

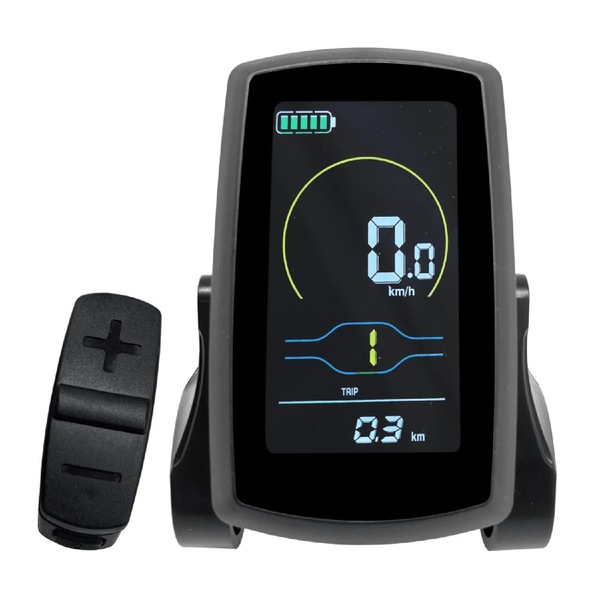

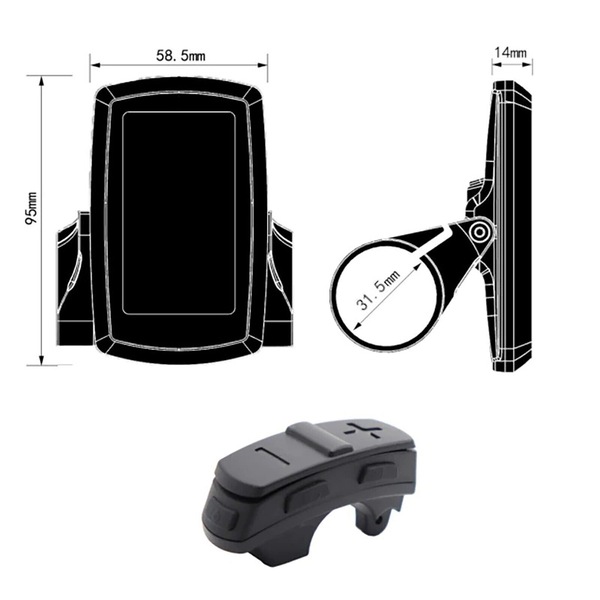

Display: Intelligent Colourful LCD Panel Display

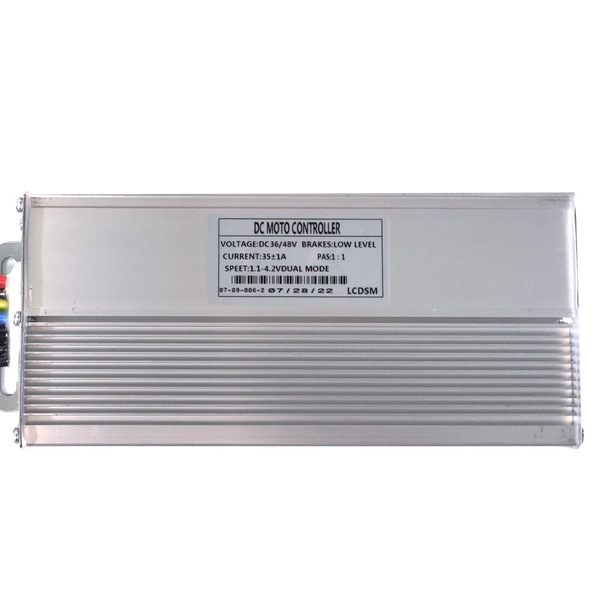

Controller: Intelligent Motor Controller, the Current is 35±1A
Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

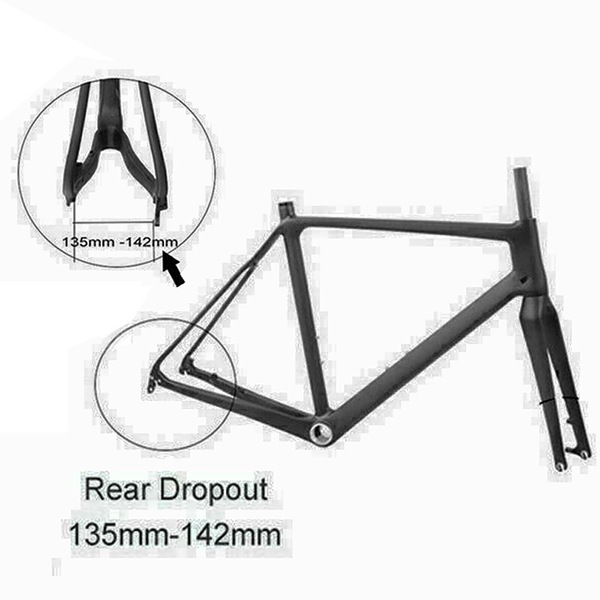

Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

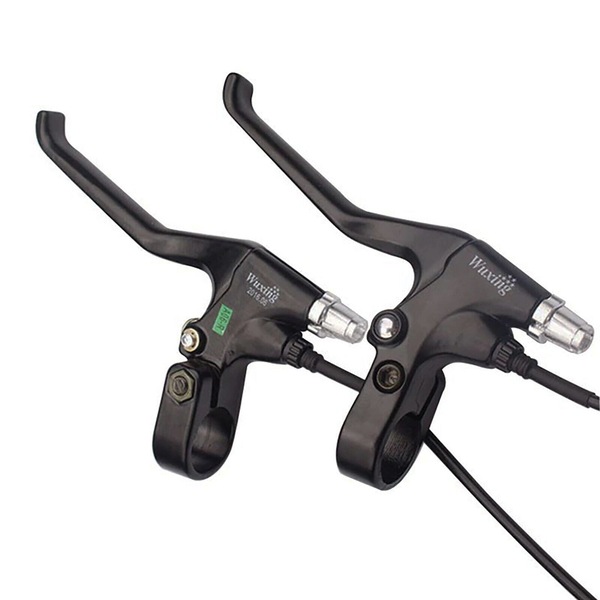

Brake levers: Aluminium Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

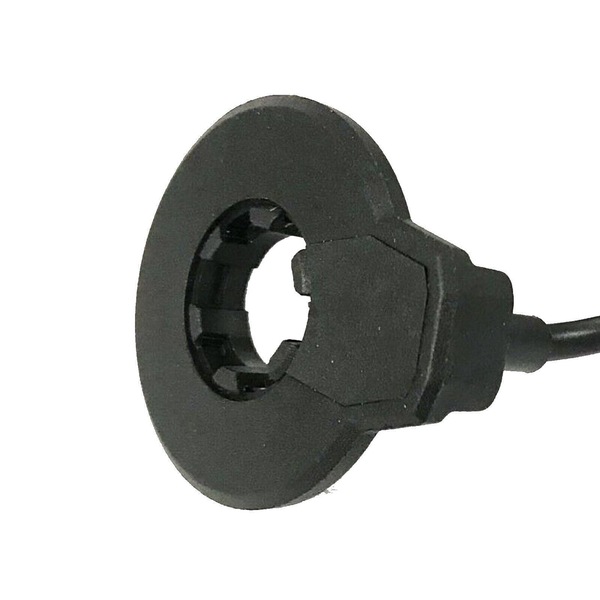

PAS Sensor: 12 Magnets Pedal Assist Sensor
Freewheel: Shimano TZ500 Thread-on Freewheel
12 Months Warranty on the Motor & Battery

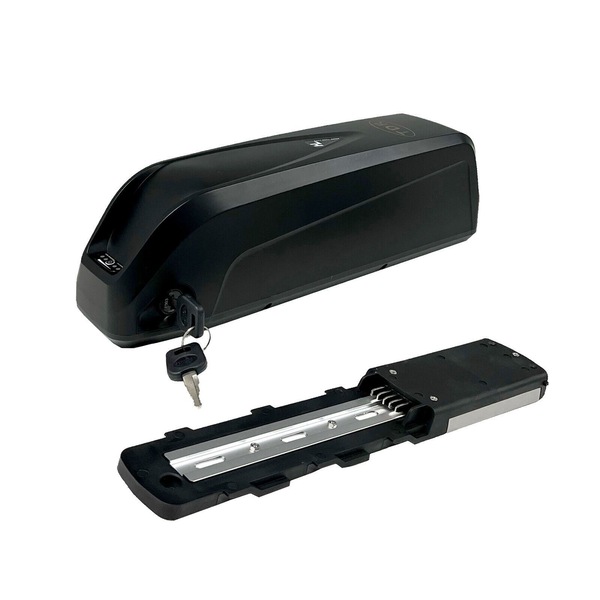

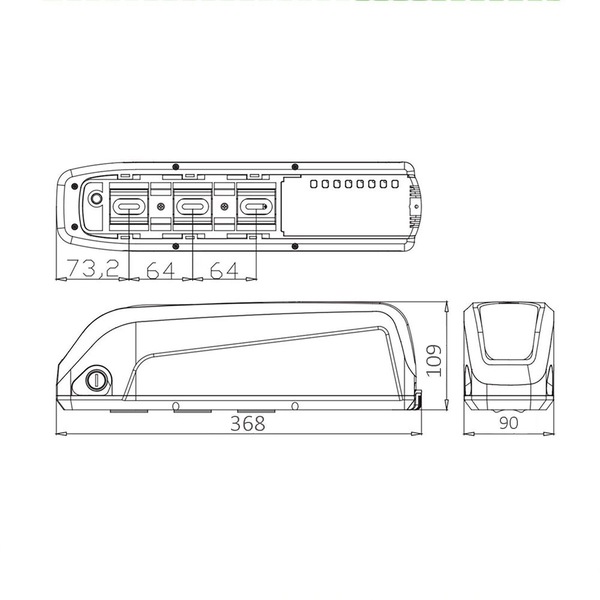

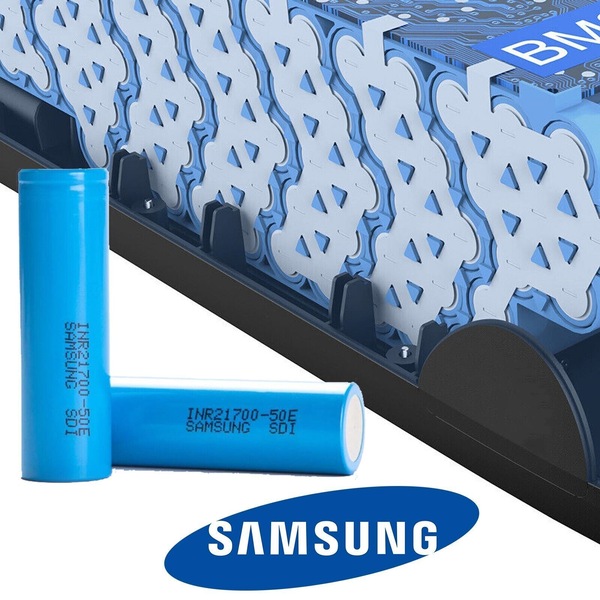

Samsung 5000mAH Downtube Battery with Bottom Mount
Riding Range: Up to 80 km range with Pedal Assist Mode

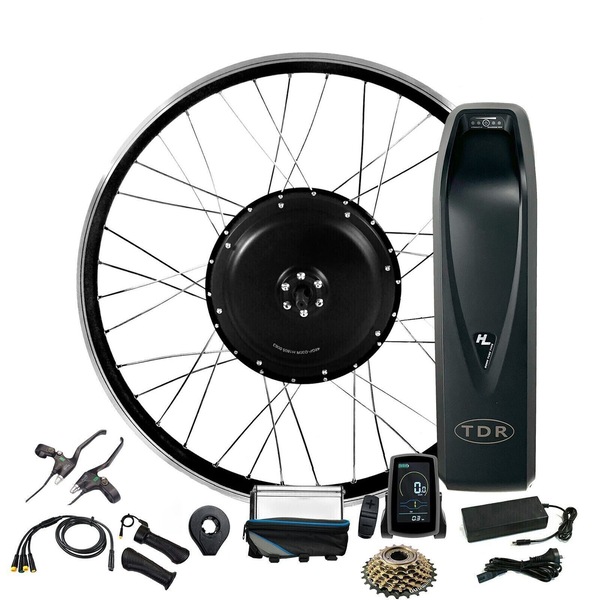

Package Include:
1x 48V 1500W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Twist Throttle
1x LCD Display
1x Cable Ties Set
1x Manual
1x (6 or 7) Speed Freewheel - depends on stock availability
1x 48V 20AH Downtube Battery & Charger Set

Important Notes
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 7 Speeds
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

GTIN: 9356695097018

Estimated Delivery Time Frame:5
