TDR 48V 1500W Electric Bike Rear Wheel Conversion Kit for 700C 28" 29" Bicycle, Includes 15AH Lithium Battery & Intelligent LCD Display

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 3 items left!
$1039.95

Collect 1039 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Description:

  • For 700C wheel with a width between 700*35C to 700*55C, 28 Inch wheel with a width between 1.75 to 2.25 Inch, 29 Inch wheel with a width between 1.75 to 2.25 Inch

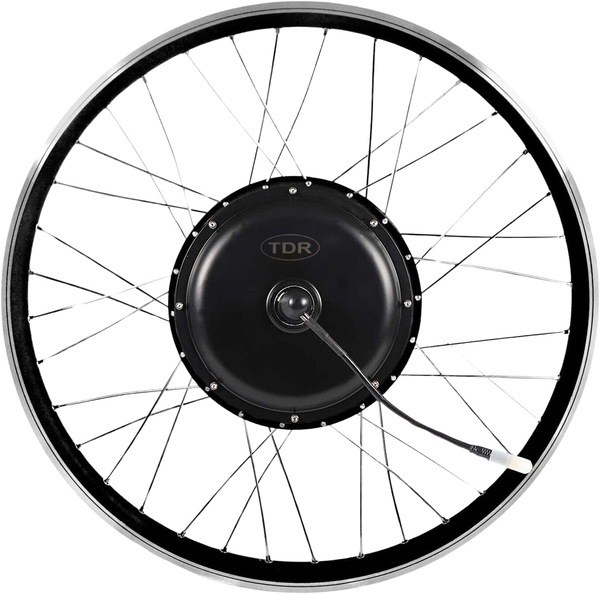

  • Rim Motor: 48V 1500W Brushless Direct-Drive Hub Motor

  • Torque: 65 N.M

  • Wiring Method: Waterproof Wire Connection System

  • Maximum Speed: 60 km/h

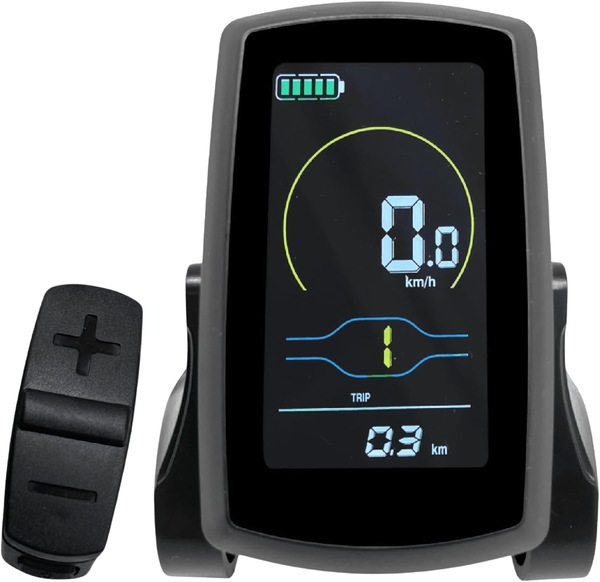

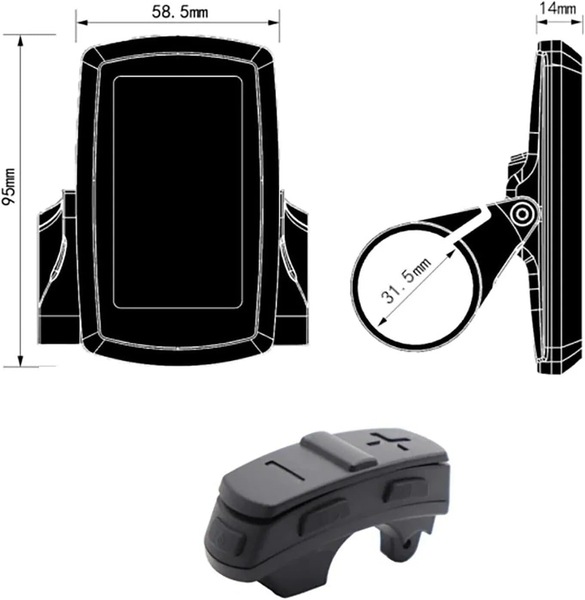

  • Display: Intelligent Colourful LCD Panel Display

  • Controller: Intelligent Motor Controller, the Current is 35±1A

  • Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

  • Rear Fork Width Requirement:135 - 142mm

  • Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

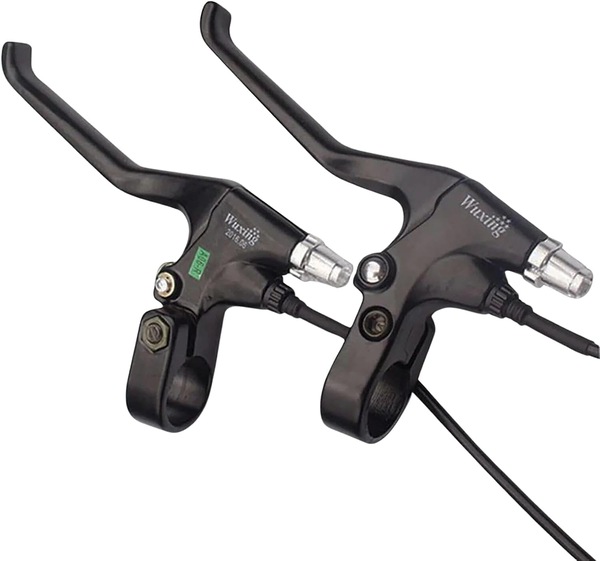

  • Brake levers: Aluminium Alloy Wuxing E-brake Lever

  • Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

  • PAS Sensor: 12 Magnets Pedal Assist Sensor

  • Freewheel: Shimano TZ500 6 or 7 Speed Thread-on Freewheel

  • 12 Months Warranty on the Motor & Battery

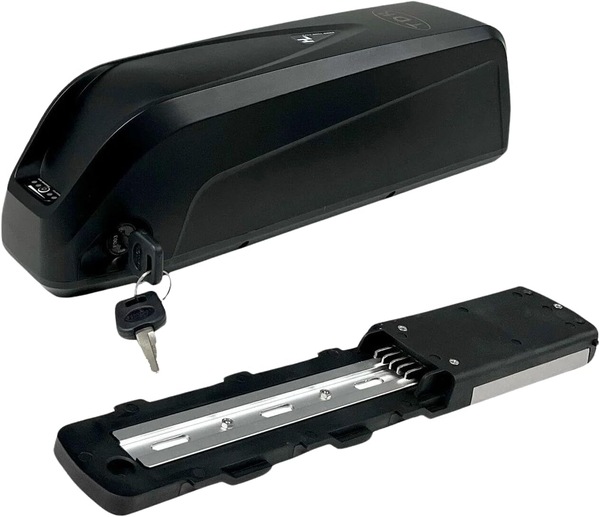

  • Samsung 5000mAH 48V 20AH Downtube Battery with Bottom Mount

  • Riding Range: Up to 80 km range with Pedal Assist Mode


Package Include:

  • 1x 48V 1500W Rear Rim Motor

  • 1x Intelligent Motor Controller

  • 1x Controller Box

  • 1x Pedal Assist Crank Sensor

  • 1x Pair of E-Brake Levers

  • 1x Twist Throttle

  • 1x LCD Display

  • 1x Cable Ties Set

  • 1x Manual

  • 1x 6 or 7 Speed Freewheel

  • 1x 48V 15AH Downtube Battery & Charger Set


Important Notes:

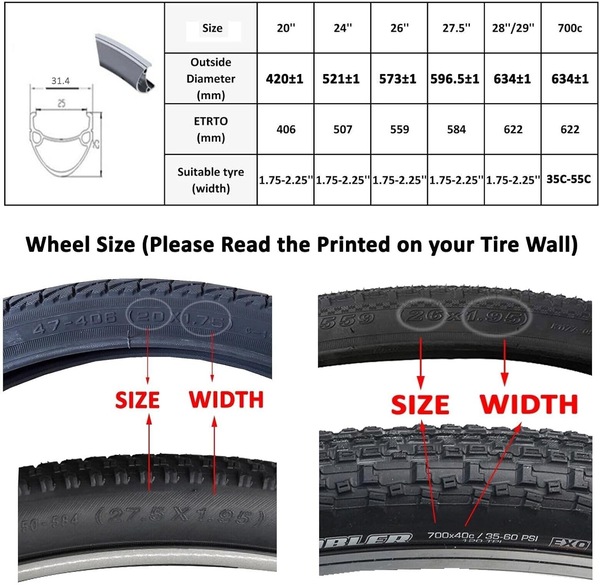

  • Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

  • Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.

  • Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.

  • The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 1500W Motor is not path legal, this product is recommended for off-road or private property use only.

  • Please noted that the rear motor hub will only suit thread-on freewheel which is up to 6 or 7 Speeds, the freewheel is included.

  • Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

GTIN: 9356695012844
