TDR 48V 35A Ebike Controller LCD Display Kit 1000W 1500W Hub Brushless Motor Sine Wave 15Mosfets Julet 11Pin XT60 PAS 1to4 Cable ABS Black

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Image 14
Hurry! 10 items left!
$169.95

Collect 169 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 30/07/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

DESCRIPTION Shipping Return PAYMENT ABOUT US

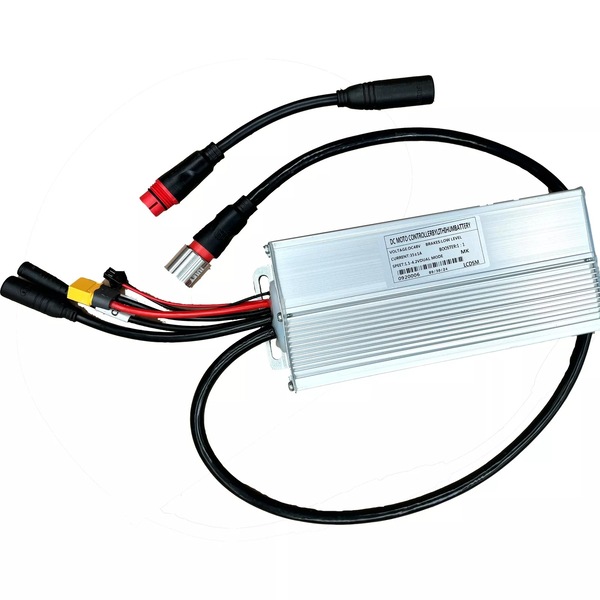

48V 35A EBIKE CONTROLLER

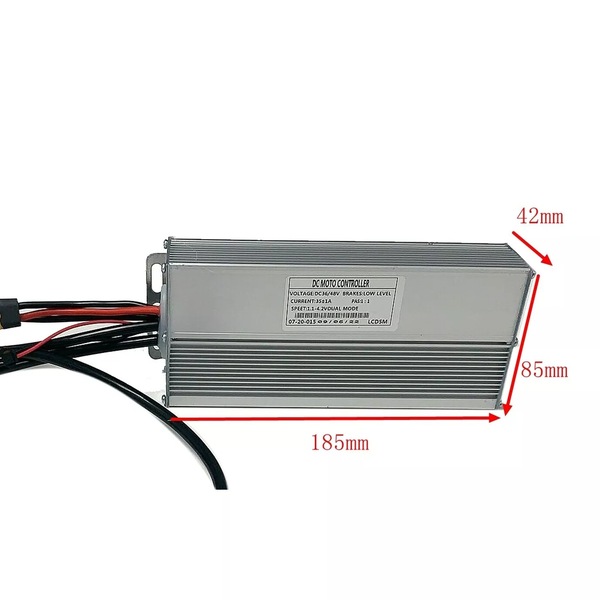

Controller dimension in mm : 185*42*85 (l*w*h)
Weight: 650g
Motor cable length: about 730mm
15mosfets
Sine Wave
Maximum current: 35±1A
Rated voltage:DC/48V
Speed set:1.1 - 4.2V DUAL MODE
Rated current:17A
Brake input :Low-Level
PAS: 1:1
Low voltage protection: DC40±0.5V

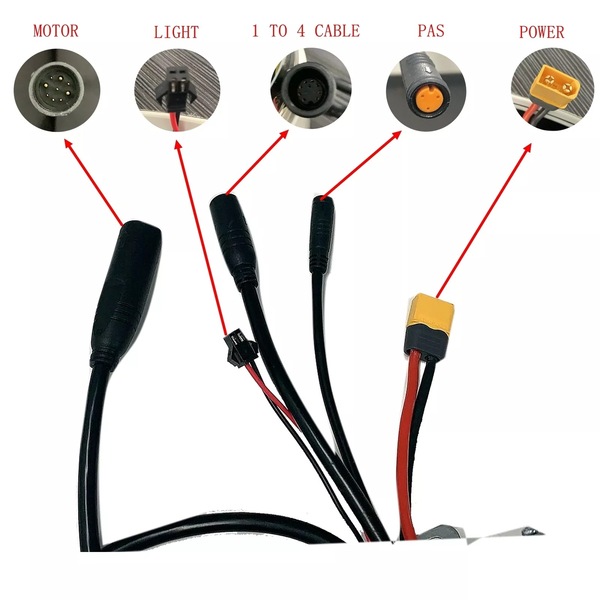

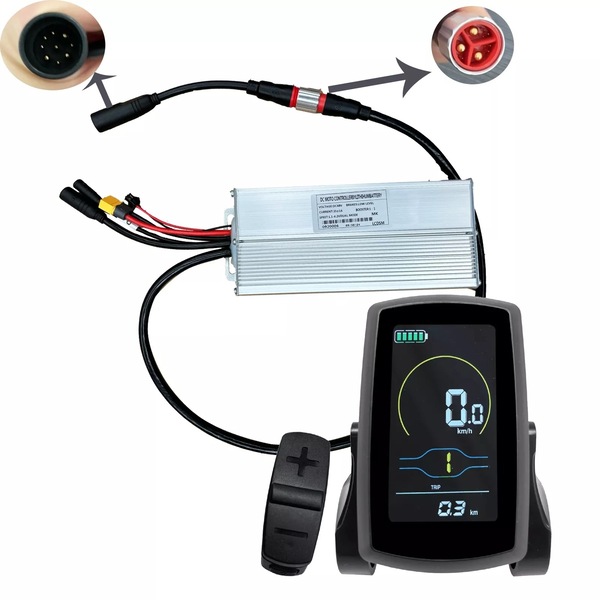

Connectors:

motor connector : Julet 11 Pin ( + 9 pins waterproof adapter)

Power connector xt60
PAS (3 pins waterproof plug)
1 to 4 cable(9 pins for throttle, e-bike, display)
Front light connector - suitable for light less than 80MAH

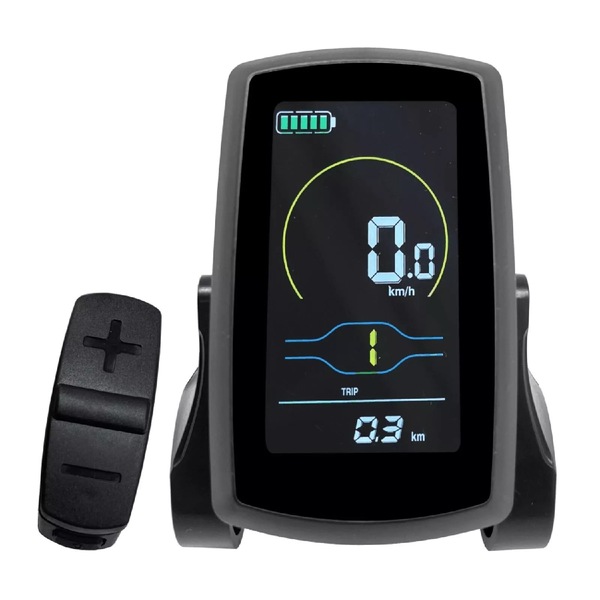

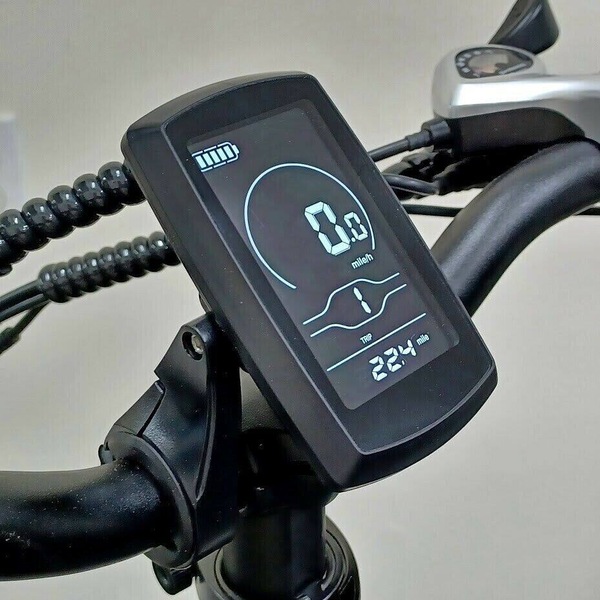

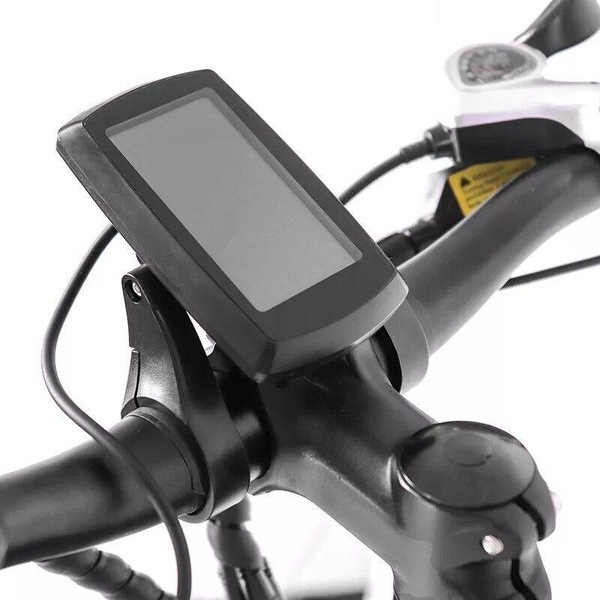

LCD

Specification
Color: Black
Material: ABS Plastic

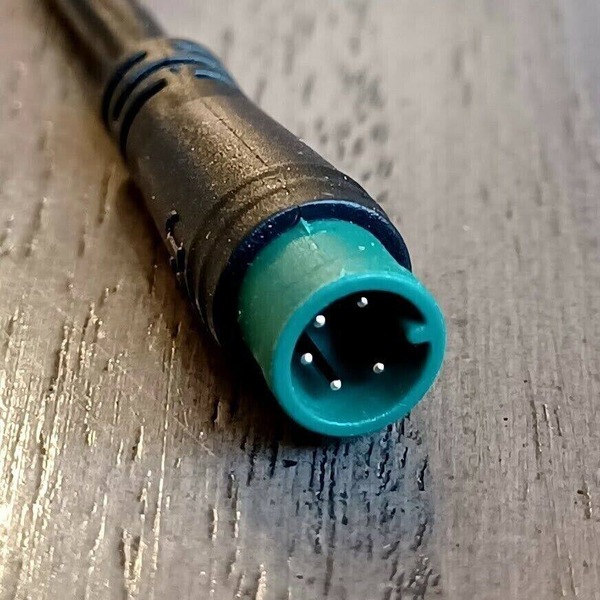

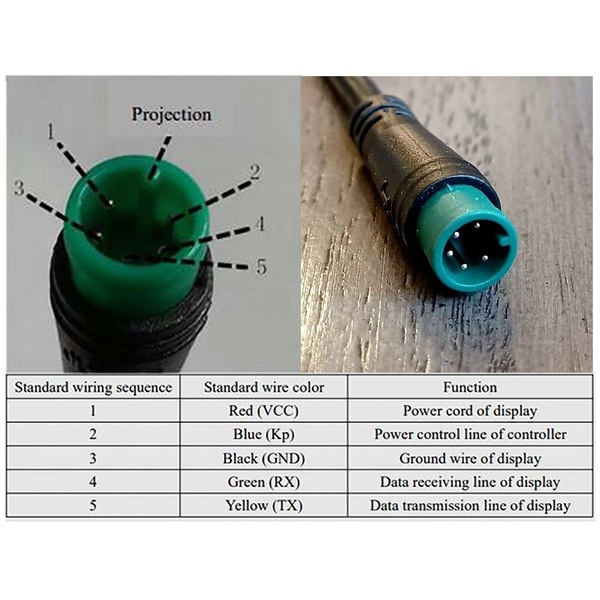

Connector Type: JULIET waterproof 5 Pins
36V/48V power supply
Rated working current 15mA
Maximum working current 30mA
Leakage current at power-off <1uA
Working current at the supply controller end 50mA
Working temperature -20ļ½ž60

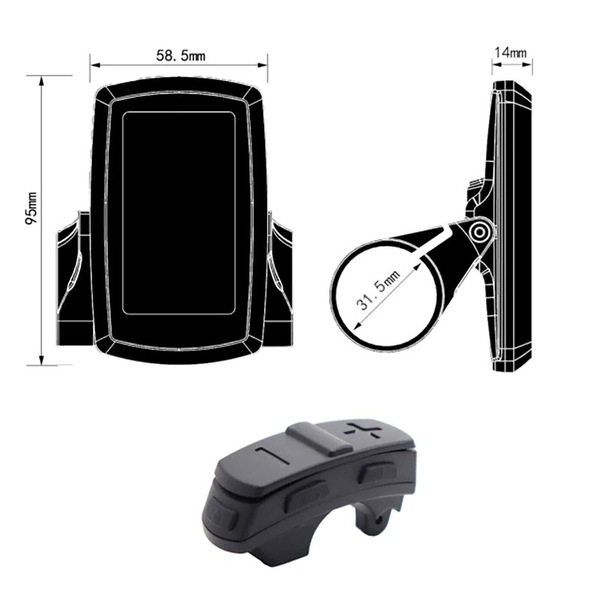

Dimensions: 95*58.5*14mm
Functions: To show speed, mileage, battery level etc.
Parameter settings such as wheel diameter, speed limit, battery power setting etc.

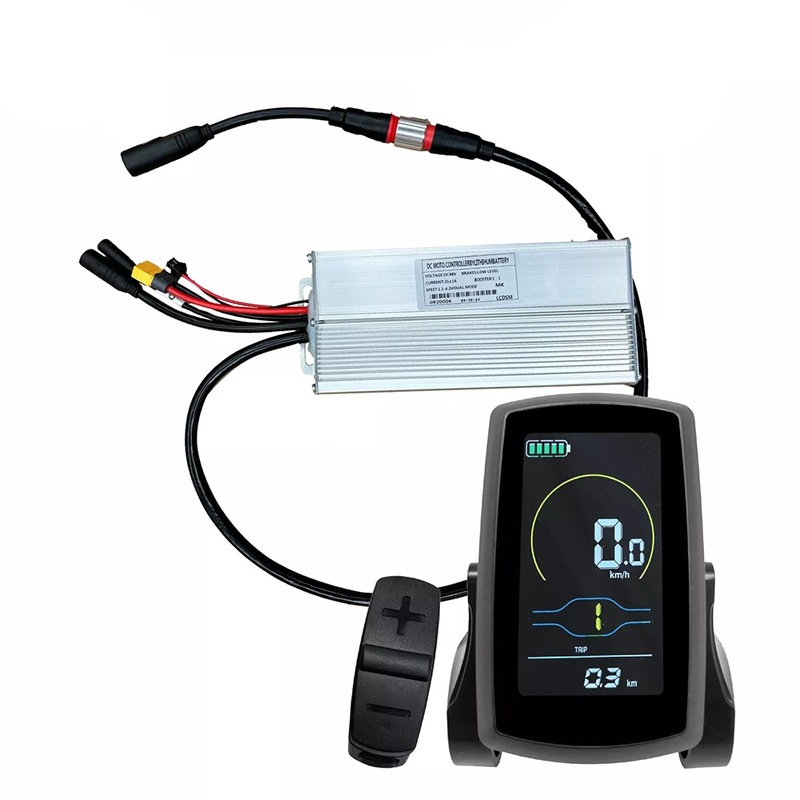

Package Contents:

1 x colored LCD display.
1 x 48V 35A Controller with adapter

GTIN: 9356695085381
