TDR 48V 500W Front Wheel Ebike Conversion Kit 26 Inch Hub Motor Thumb Throttle LCD Display PAS E-Brake Disc V-Brake Triangle 20AH Battery

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Hurry! 5 items left!
$897.95

Collect 897 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 30/08/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Wheel Size (Please Read the Printed on The Tire Wall) Option:

For 26 Inch
26 Inch front wheel with a width between 1.75 - 2.25 Inch

Specifications
Rim Motor: Front 48V 550W Brushless Gear Hub Motor
Torque: 55 N.M

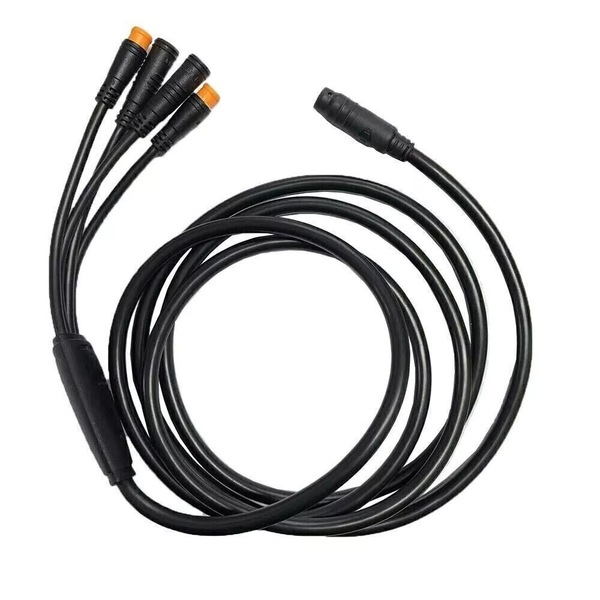

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 40 km/h

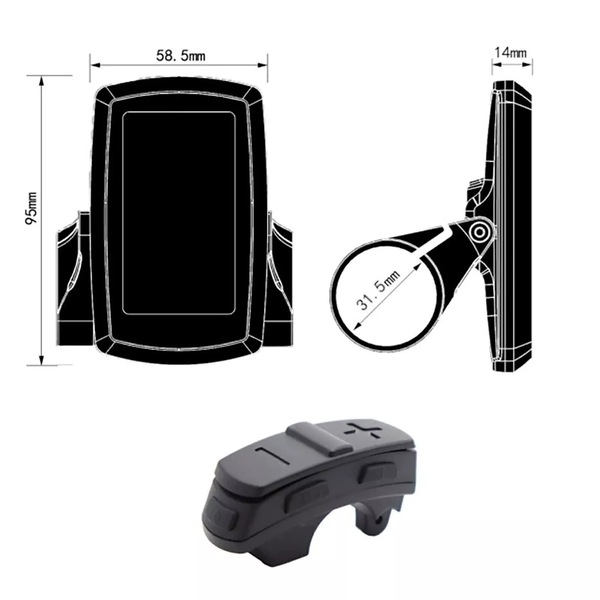

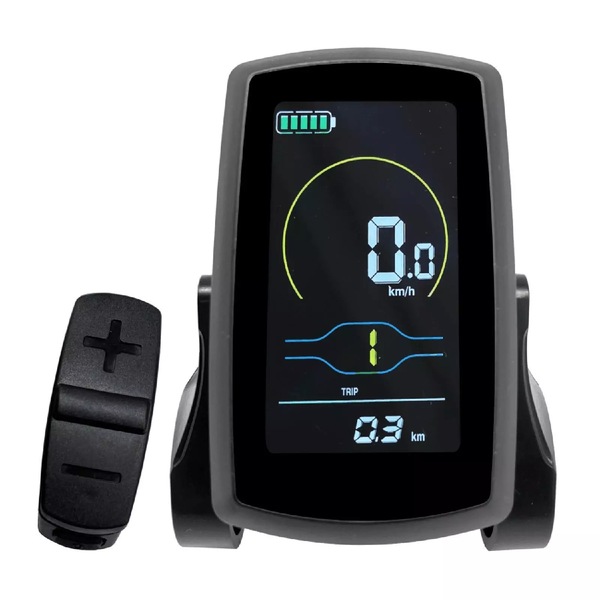

Display: Intelligent Colorful LCD Panel Display

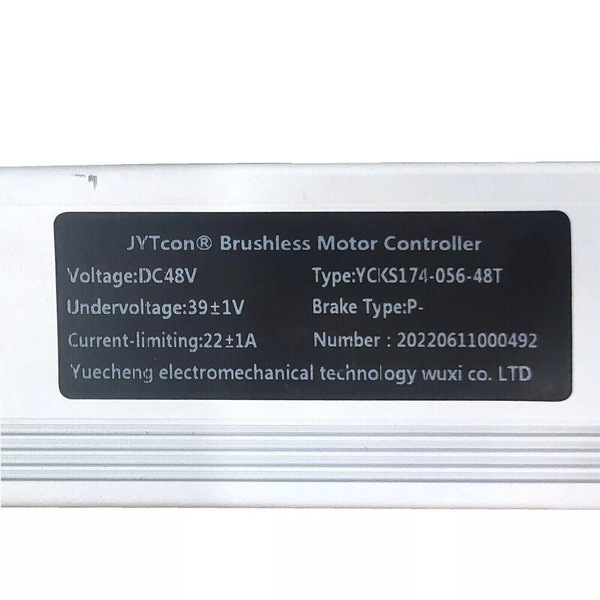

Controller: Intelligent Motor Controller, the Current is 22±1A
Riding mode: Thumb Throttle Electric Assist Mode, Pedal Assist Mode

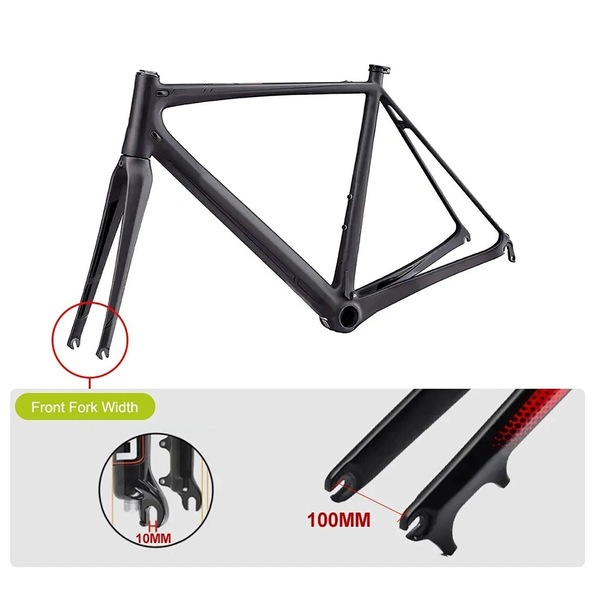

Front Fork Width Requirement:98 - 102mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

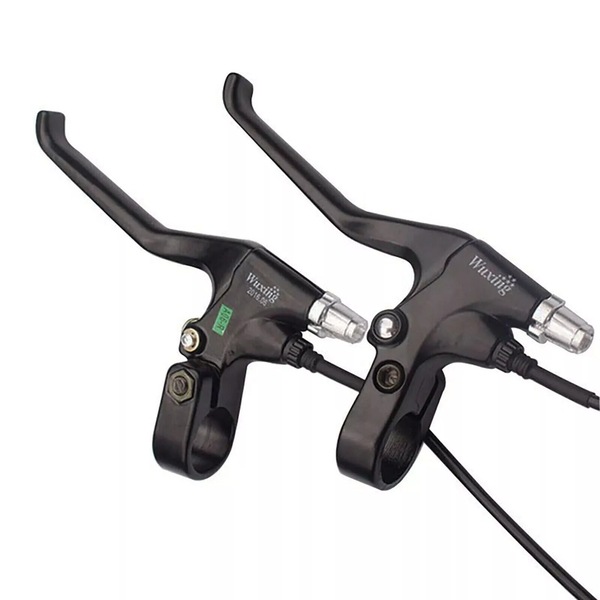

Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

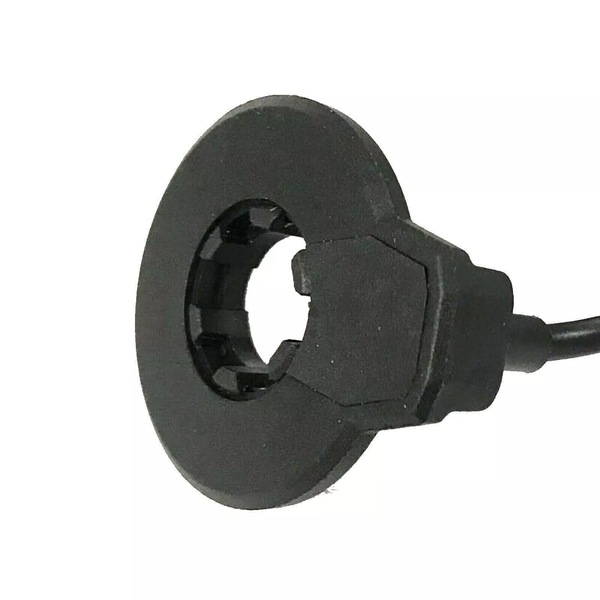

PAS Sensor: 12 Magnets Pedal Assist Sensor
12 Months warranty on the Motor & Battery
Riding Range: Up to 80 km with Pedal Assist Mode

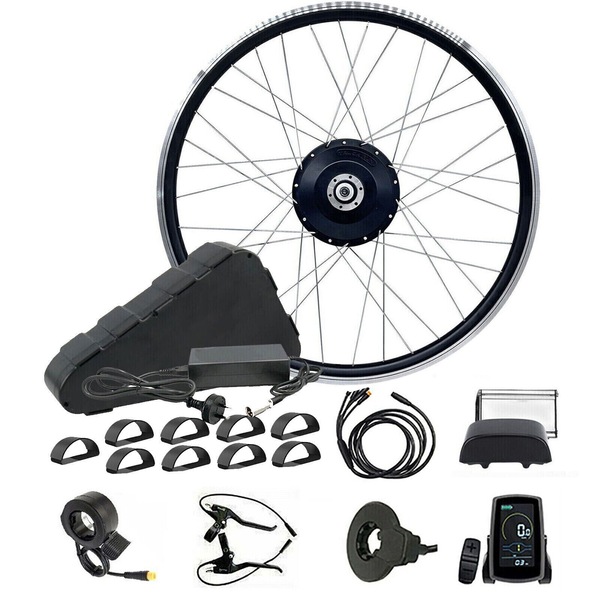

Package Include :
1x 48V 500W Front Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Thumb Throttle
1x LCD Display
1x Cable Ties Set
1x Manual

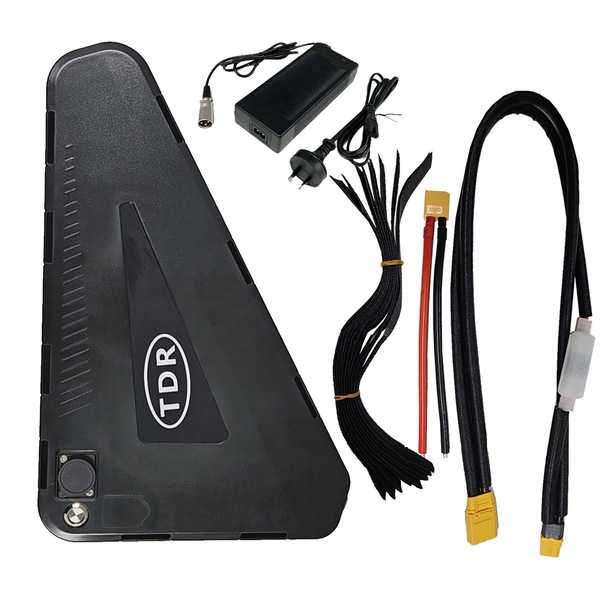

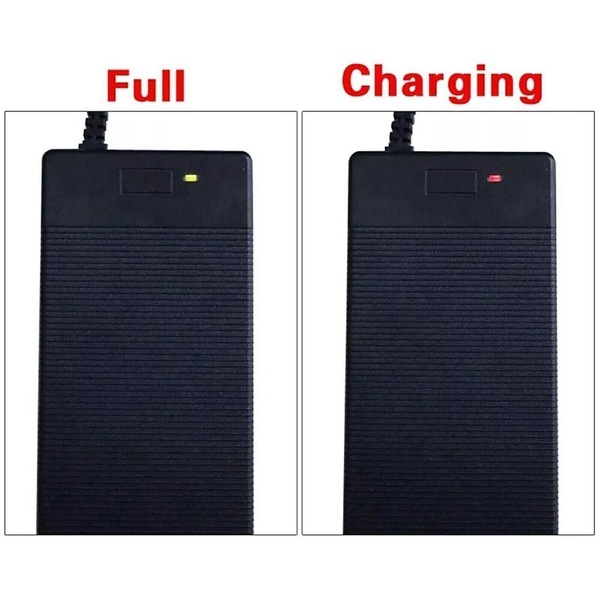

1 x 48V 20AH Triangle Case Battery & Charger Set

Important Notes

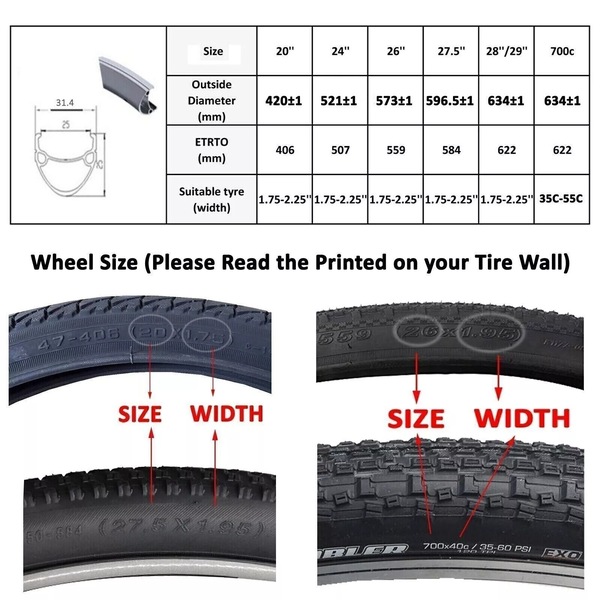

Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your front fork width (98mm - 102mm) to make the motor hub can be fitted into it.

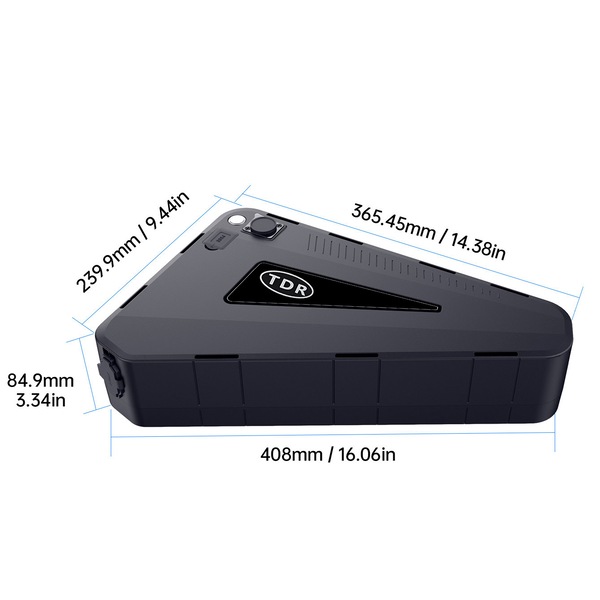

Please check the size of the battery, bag, and frame size before purchasing to make sure the Triangle Battery (if applicable) can be fitted into your bike frame.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 500W Motor is not path legal, this product is recommended for off-road or private property use only.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
When attach battery to your frame, please ensure to remove all sharp objects on frame including the drink bottle holder screws. Additionally, please a avoid any collisions between the battery and bicycle frame when riding.

GTIN: 9356695080768

Estimated Delivery Time Frame:5
