TDR 48V 500W Rear Motor E-Bike Conversion Kit for 28" 29" 700C Wheels with 48V 13AH Battery

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Hurry! 3 items left!
$889.95

Collect 889 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

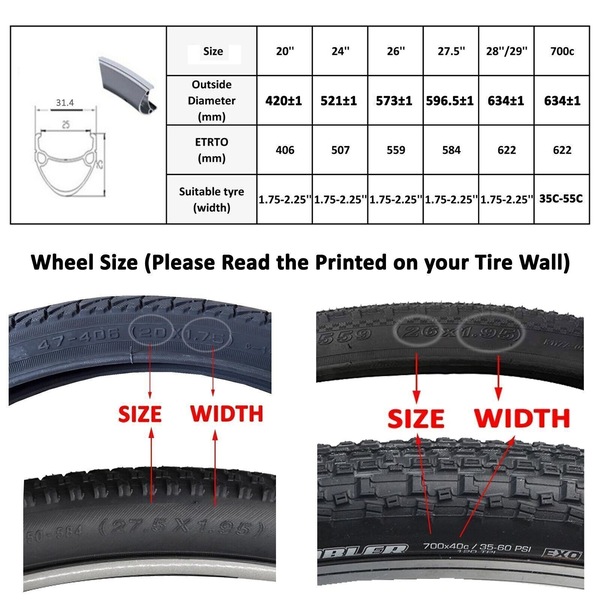

For 700C / 28 Inch / 29 Inch Wheels:
700C wheel with a width between 700*35C to 700*55C
28 Inch wheel with a width between 1.75 to 2.25 Inch
29 Inch wheel with a width between 1.75 to 2.25 Inch

Specifications
Rim Motor: 48V 500W Brushless Gear Hub Motor
Torque: 55 N.M

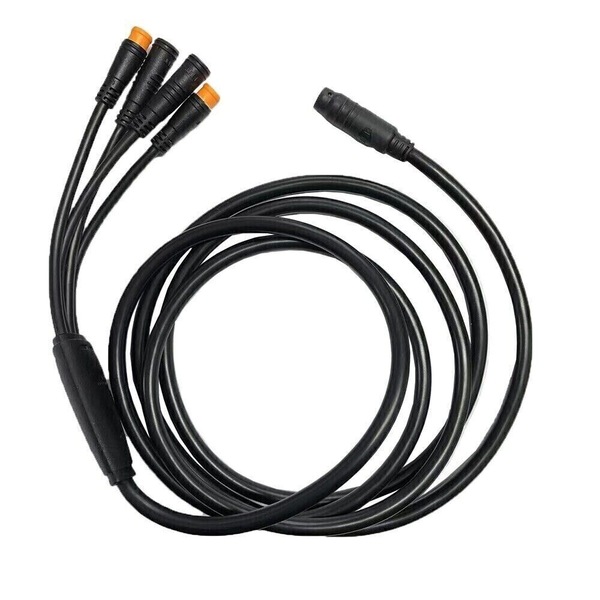

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 40 km/h

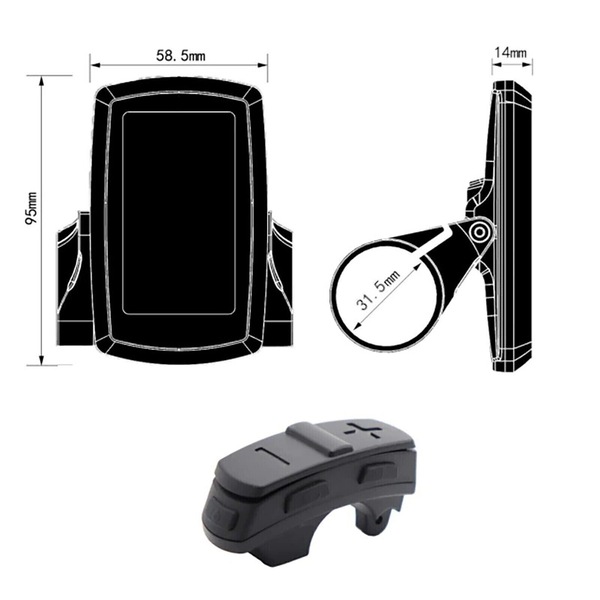

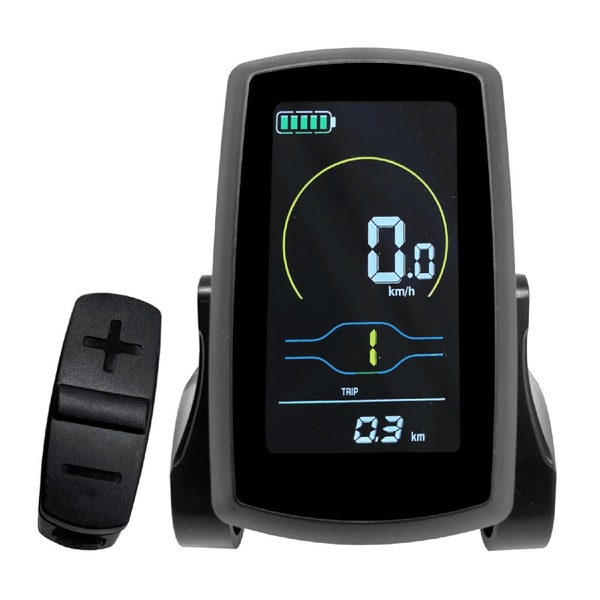

Display: Intelligent Colourful LCD Panel Display

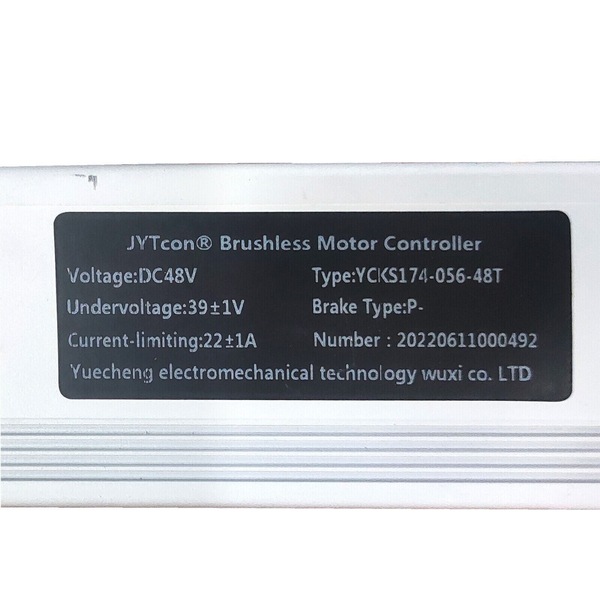

Controller: Intelligent Motor Controller, the Current is 22±1A
Riding mode: Thumb Throttle Electric Assist Mode, Pedal Assist Mode

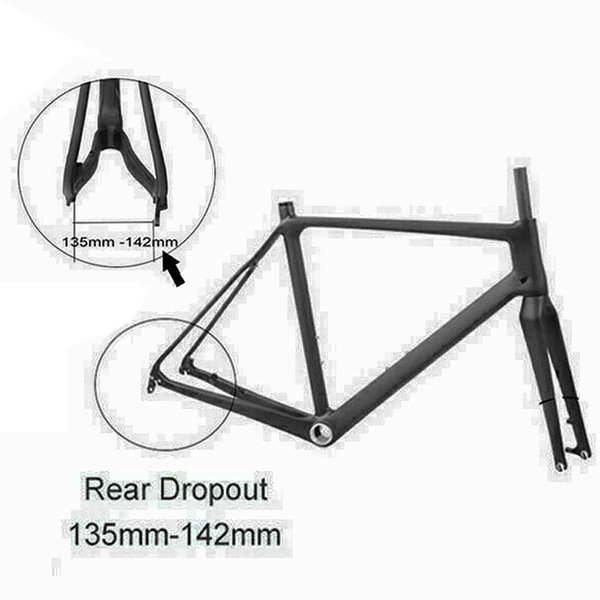

Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

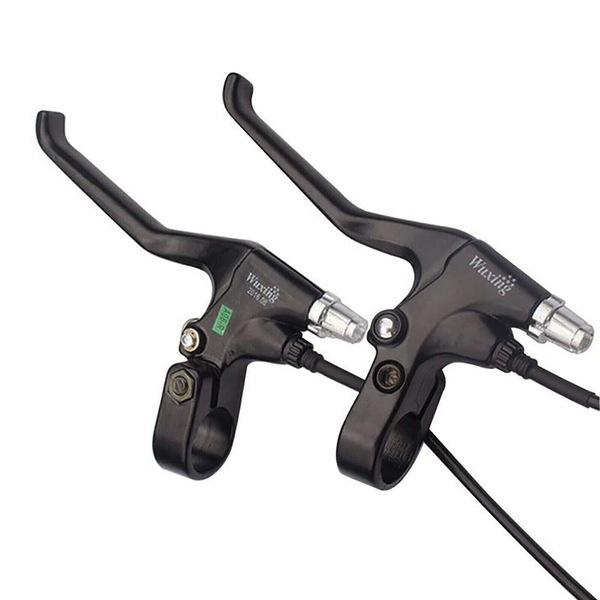

Brake levers: Aluminium Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

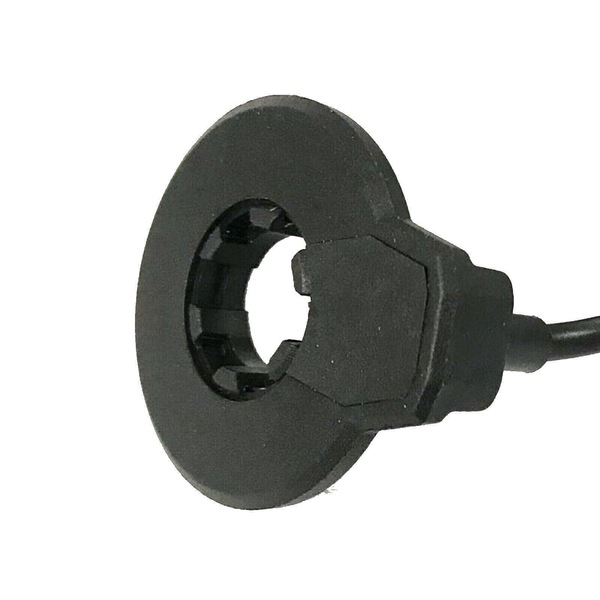

PAS Sensor: 12 Magnets Pedal Assist Sensor
Riding Range: Up to 50 km with Pedal Assist Mode

Package Include:
1x 48V 500W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Thumb Throttle
1x LCD Display
1x Cable Ties Set
1x Manual
1x 7 Speed Freewheel

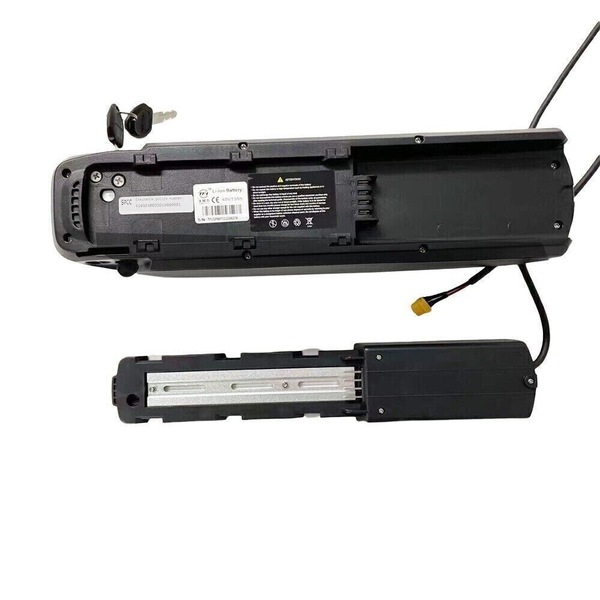

1x 48V 13AH Battery

Important Notes
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.

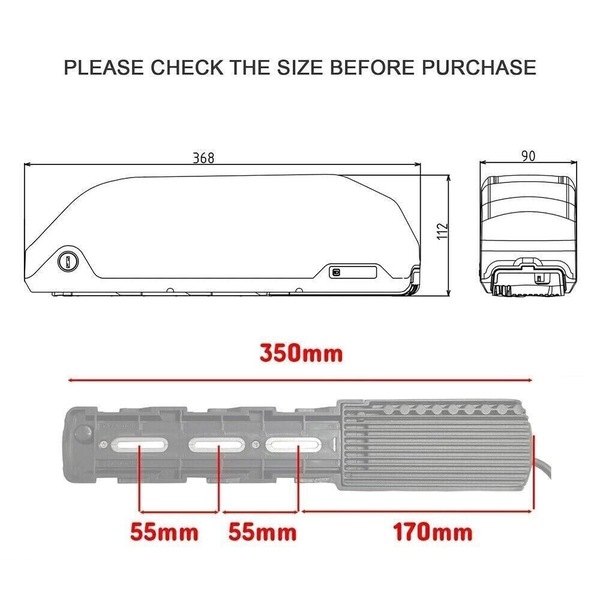

Please check the size of the battery, bag, and frame size before purchasing to make sure the battery can be fitted into your bike frame.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road legal. 500W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 7 Speeds, a freewheel is included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.

GTIN: 9356695096370
