TDR 48V 750W 27.5 Inch Rear Wheel Electric Bike Conversion Kit with 10AH Battery, Brushless Hub Motor, LCD Display, E-Brake Levers, Pedal Assist

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Image 14
Image 15
Image 16
Hurry! 2 items left!
$829.95

Collect 829 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

Specifications
27.5 Inch wheel with a width between 1.75 to 2.25 Inch
Rim Motor: 48V 750W Brushless Gear Hub Motor
Torque: 55 N.M

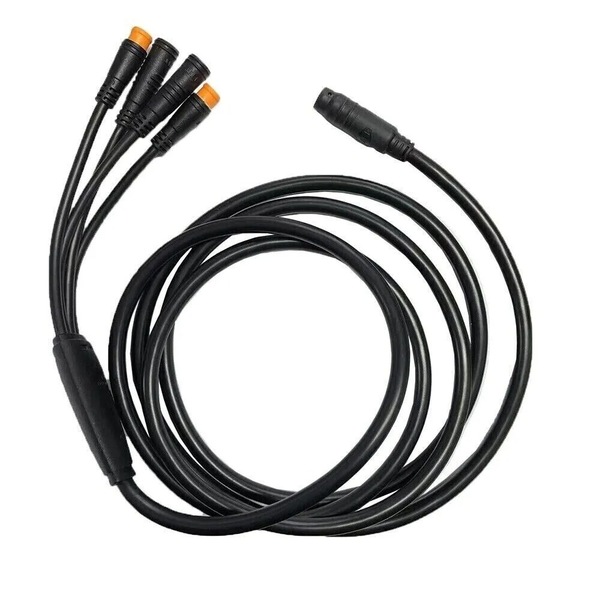

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 50 km/h

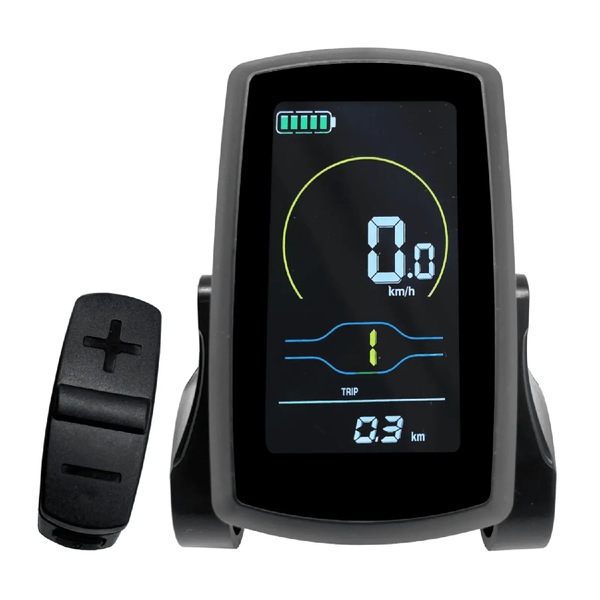

Display: Intelligent Colorful LCD Panel Display

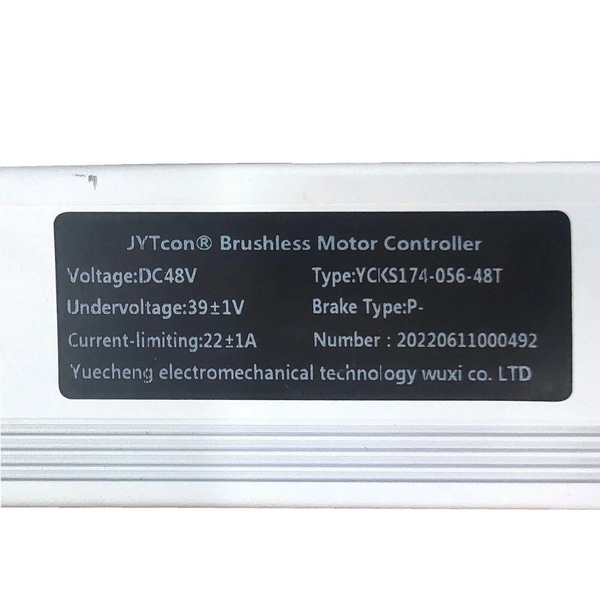

Controller: Intelligent Motor Controller, the Current is 22±1A
Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode

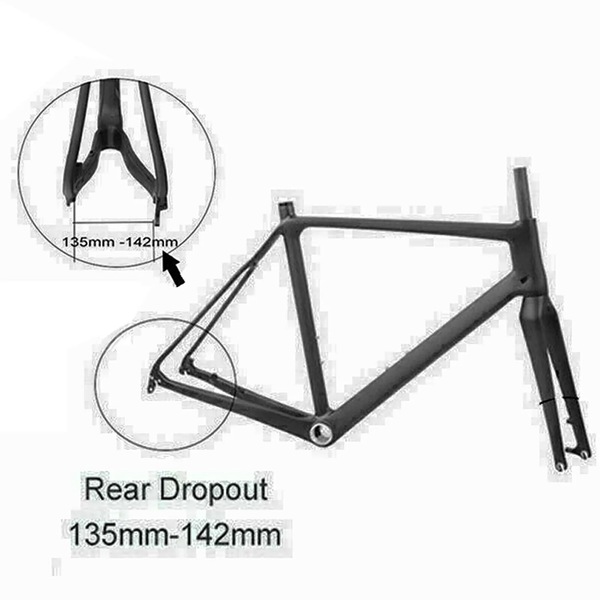

Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

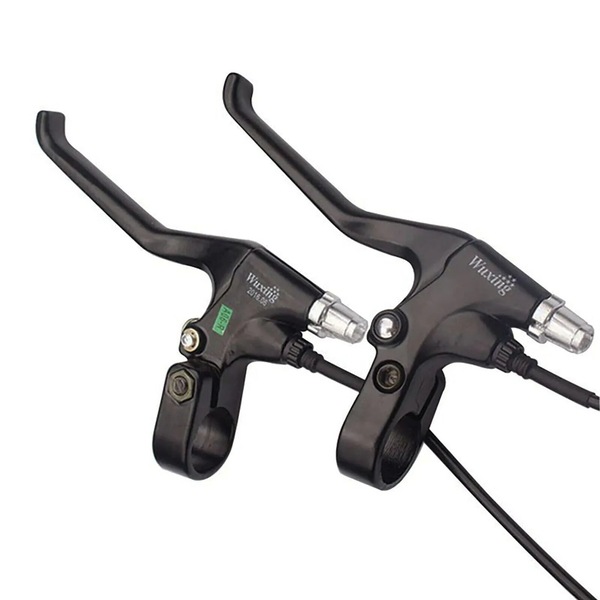

Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

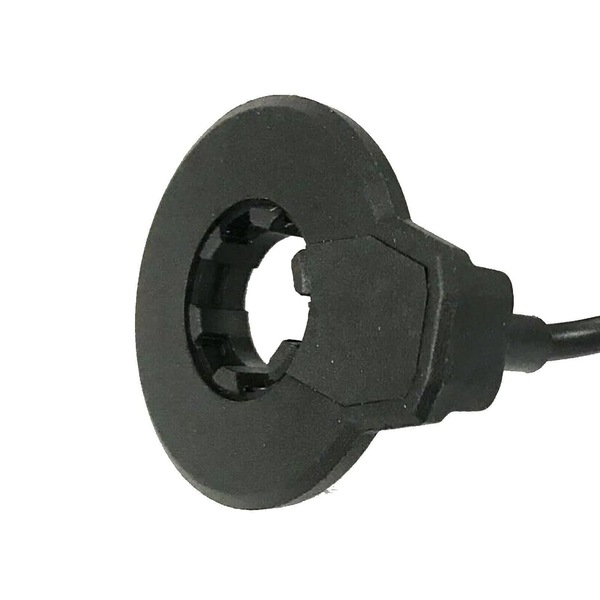

PAS Sensor: 12 Magnets Pedal Assist Sensor
Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
12 Months Warranty on the Motor & Battery
Riding Range: Up to 40 km with Pedal Assist Mode

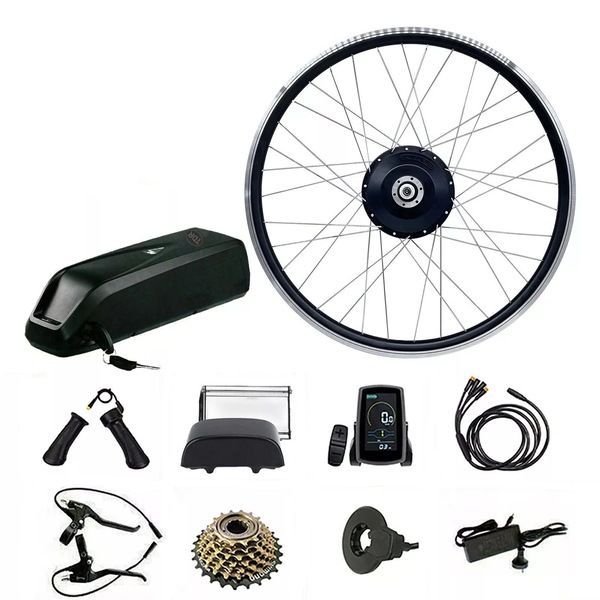

Package Include :

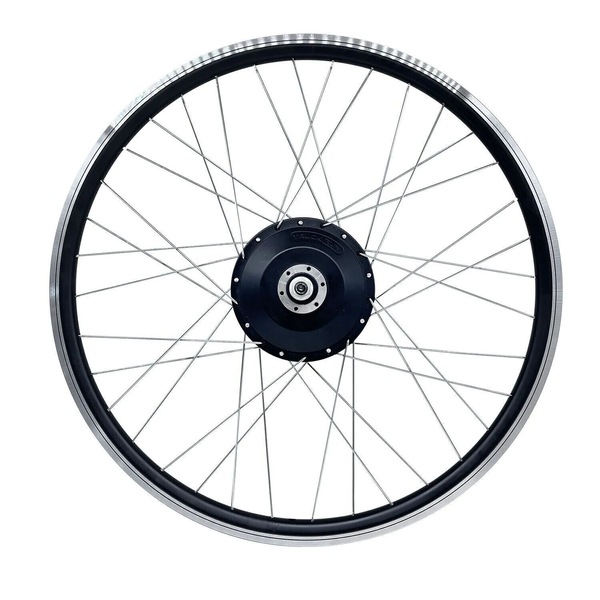

1x 48V 750W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Twist Throttle

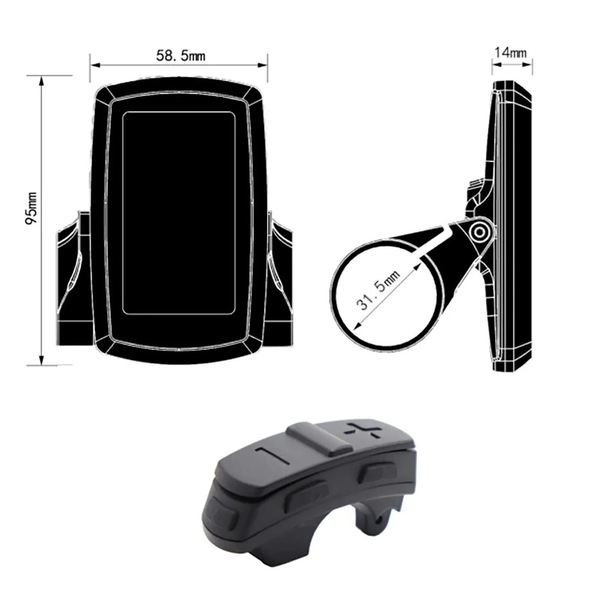

1x LCD Display
1x Cable Ties Set
1x Manual
1x 7 Speed Freewheel

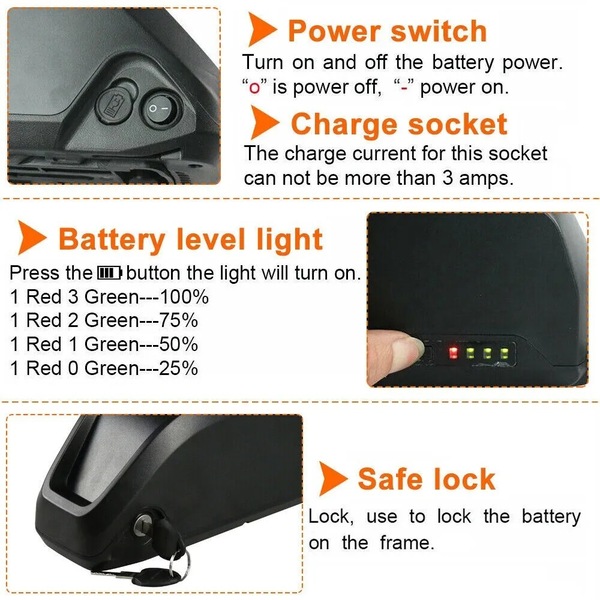

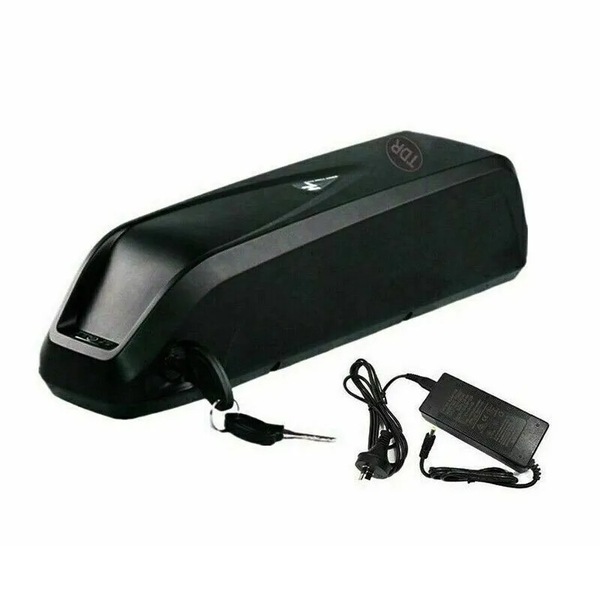

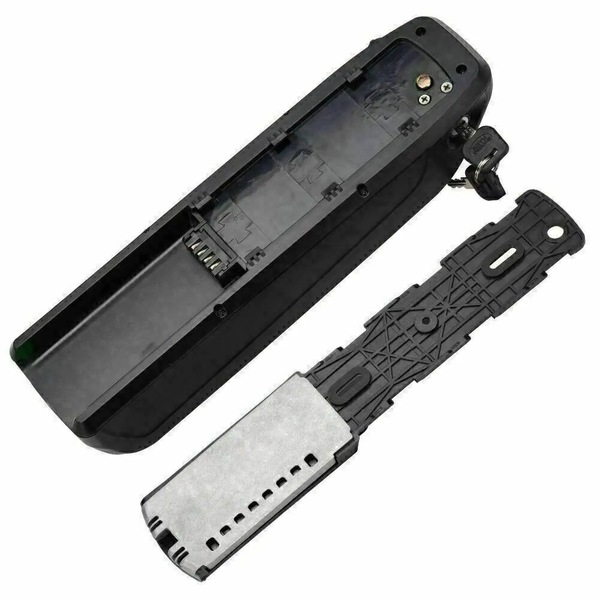

1x 48V 10AH Downtube Battery with Charger

Important Notes

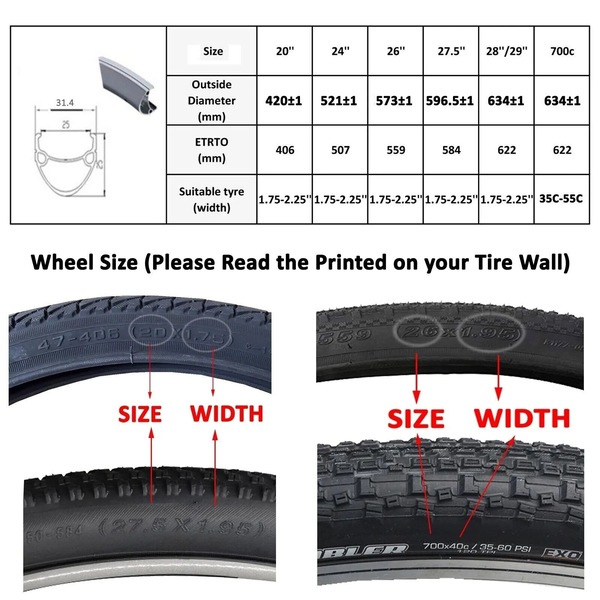

Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
Please check the size of the battery, bag, and frame size before purchasing to make sure the battery can be fitted into your bike frame.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 7 Speeds, the freewheel is included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions

GTIN: 9356695081864

Estimated Delivery Time Frame:5
