TDR 48V 750W Electric Bike Conversion Kit, Rear Wheel Drive, 29", 28", 700C Rim, 13AH Battery, Twist Throttle, Pedal Assist, Disc & V-Brake Compatible

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Image 14
Hurry! 2 items left!
$869.95

Collect 869 Everyday Rewards points

Log in to MyDeal to link your card
Take 10% Off Purchases
Exclusive to TDRMOTO products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by TDRMOTO
Secure ways to pay at checkout

DESCRIPTION Shipping Return PAYMENT ABOUT US
700C wheel with a width between 700*35C to 700*55C
28 Inch wheel with a width between 1.75 to 2.25 Inch
29 Inch wheel with a width between 1.75 to 2.25 Inch

Specifications

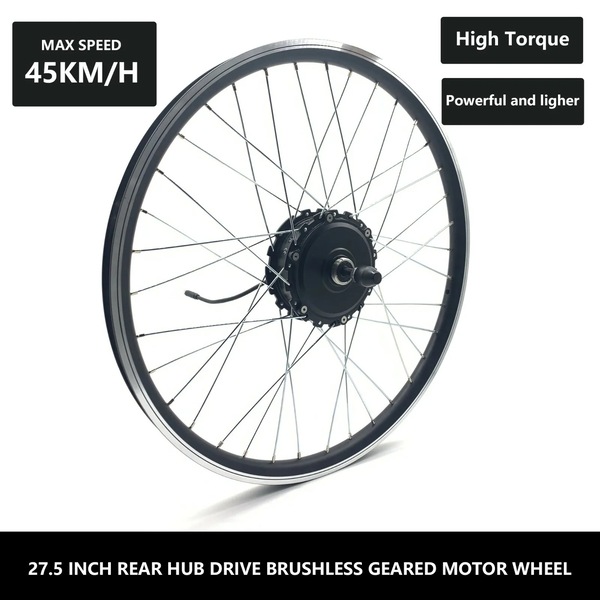

Rim Motor: 48V 750W Brushless Gear Hub Motor
Torque: 55 N.M

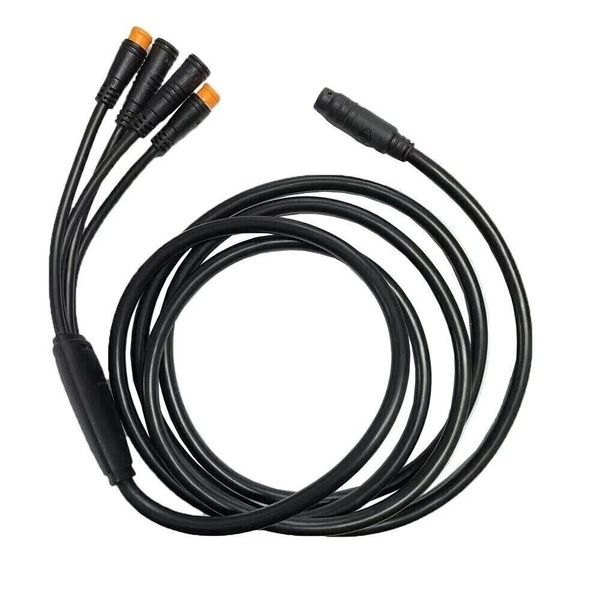

Wiring Method: Waterproof Wire Connection System
Maximum Speed: 50 km/h

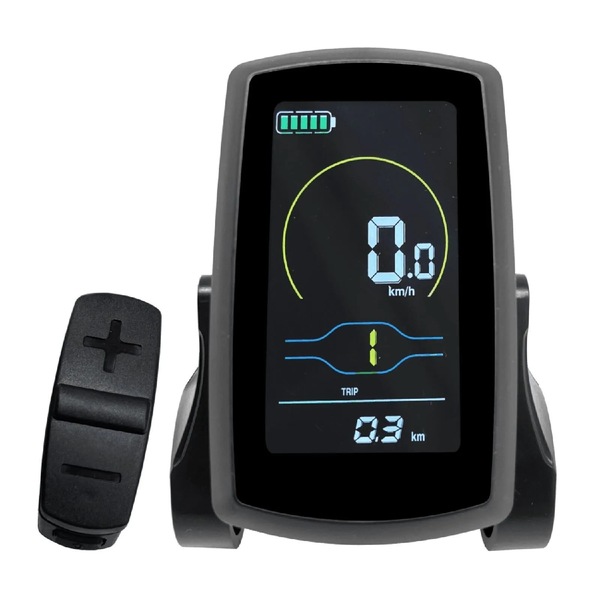

Display: Intelligent Colorful LCD Panel Display

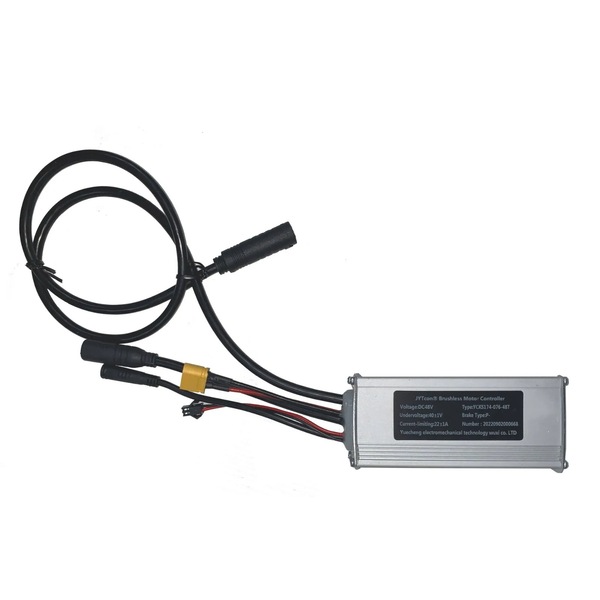

Controller: Intelligent Motor Controller, the Current is 22±1A
Riding mode: Twist Throttle Electric Assist Mode, Pedal Assist Mode
Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System

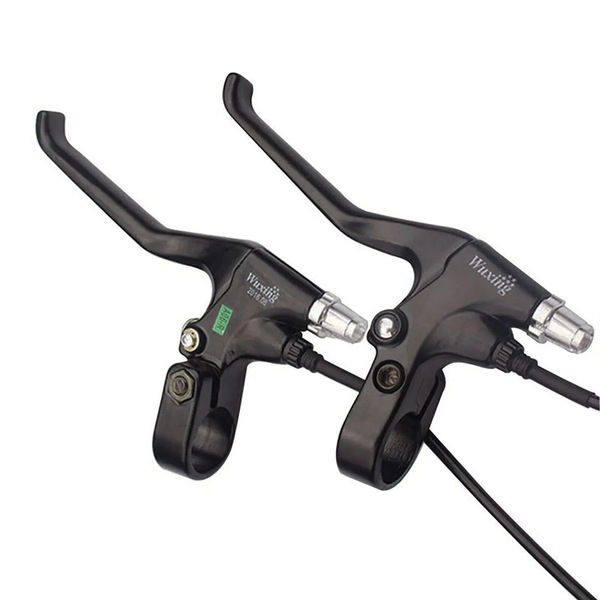

Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes

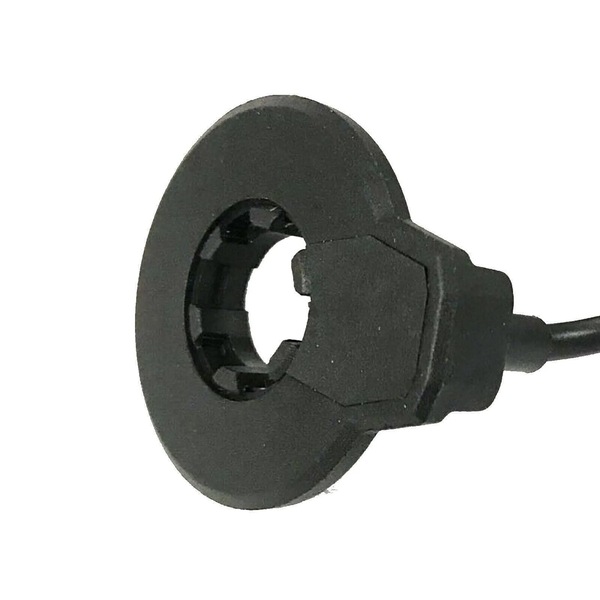

PAS Sensor: 12 Magnets Pedal Assist Sensor
Riding Range: 48V 13AH (Up to 50 km with Pedal Assist Mode),
12 Months Warranty on Motor & Battery (If Applicable)

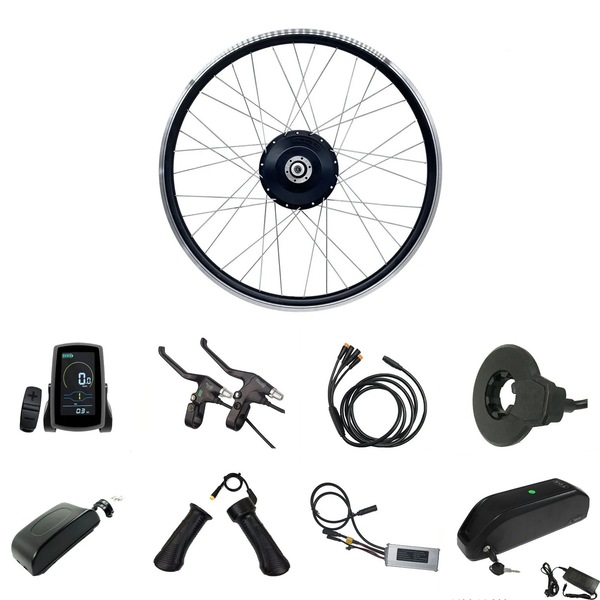

Package Include :
1x 48V 750W Rear Rim Motor
1x Intelligent Motor Controller

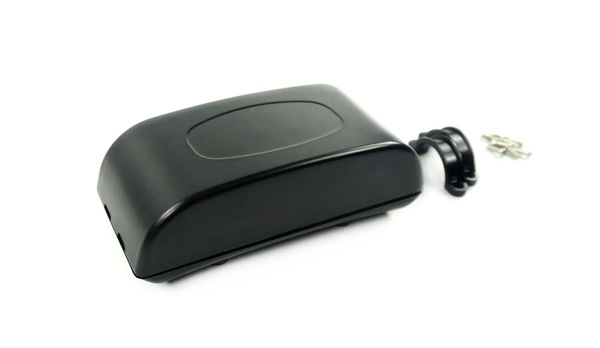

1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Twist Throttle
1x LCD Display
1x Cable Ties Set
1x Manual access online

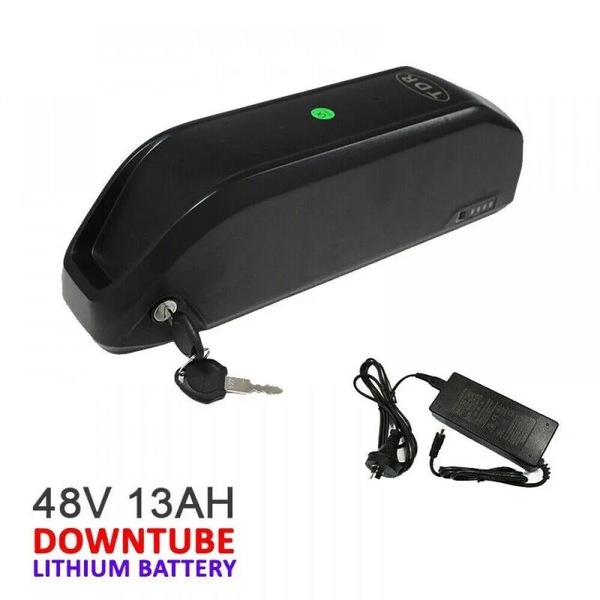

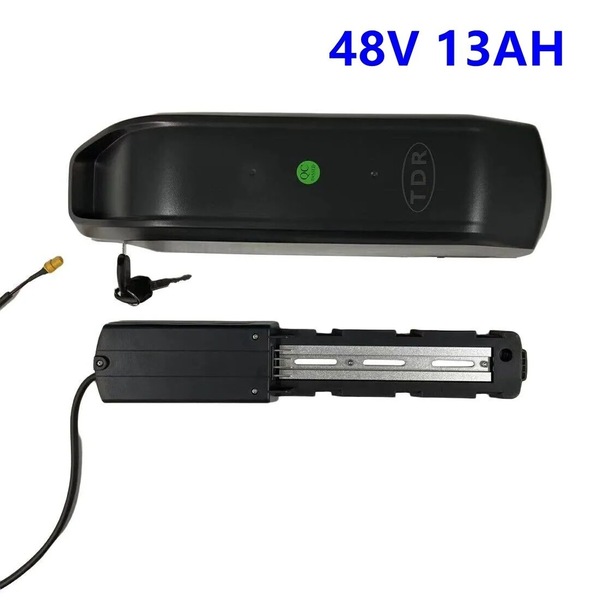

Battery with Charger

Important Notes
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).

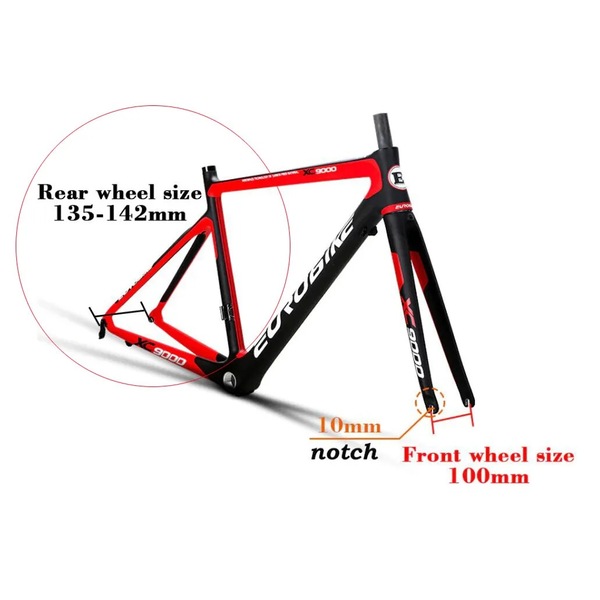

Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.

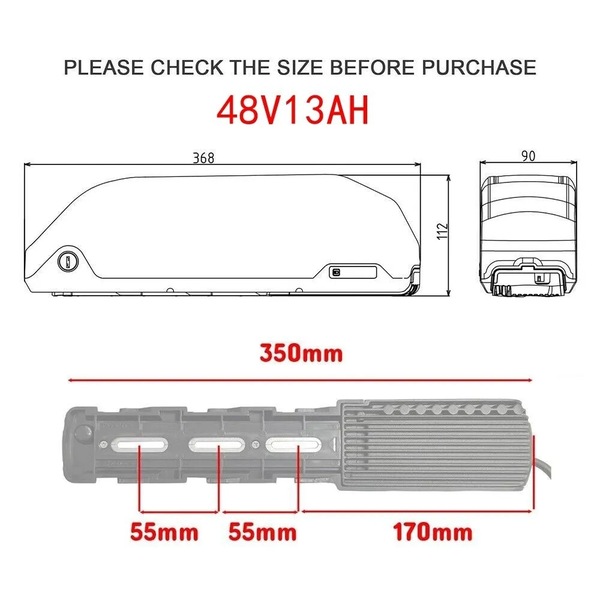

Please check the size of the battery, bag, and frame size before purchasing to make sure the battery can be fitted into your bike frame.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 750W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 7 Speeds, the freewheel is not included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
