Circuit Breaker (1.8m IP66 Inline RCD)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)

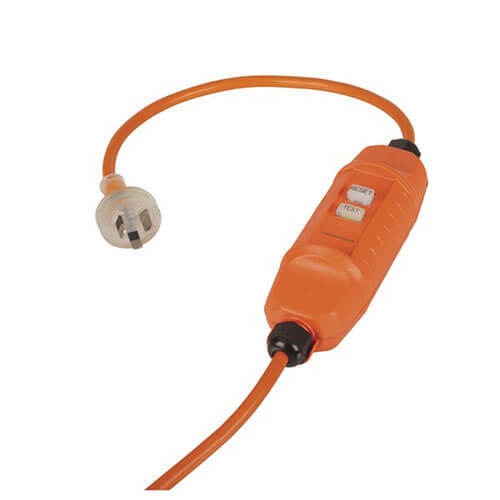

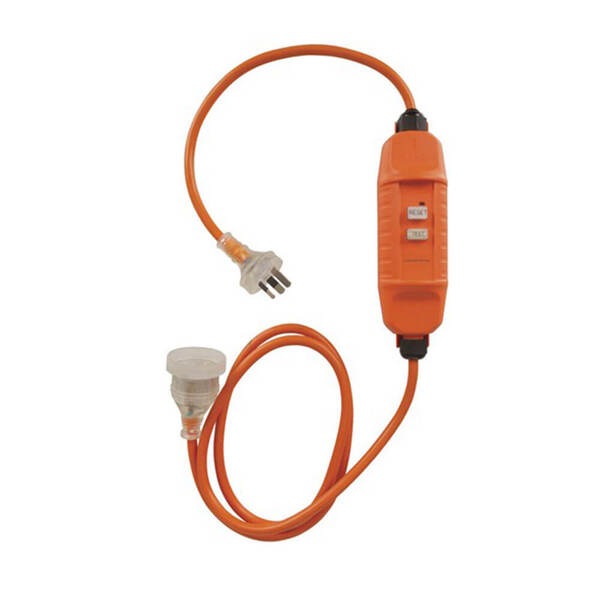

Protect yourself at home or the worksite with this handy inline RCD circuit breaker with 1.8m lead. The built-in Residual Current Device (RCD) provides the best method to protect against electrocution and equipment damage. Faster acting and improved safety compared with standard over-current circuit breakers. It has an IP66 rain and dustproof rating, and includes test and reset buttons. Meets Australian and New Zealand safety approvals.
Features:
- Automatically shuts off power when a fault occurs
- IP66 rain and dustproof rating
- Durable
RCD Specifications:
- Residual Non-Operating Current: 15mA
- Residual Operating Current: 30mA
- Max. Tripping: ≤0.1S
- IP Rating: IP66
- Length: 1.8m
Product Specifications:
- AC current rating : 10.0A
- IP Rating : IP66
- Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection : 6 - Powerful water jets
- Cable length : 1.8m
- Mains Voltage Range : 220.0V, 240.0V
- Frequency : 50.0Hz, 60.0Hz
- Rated for AU Mains : true
- Mains Item connection : Mains AU/NZ 3 Pin
- Type of Protection : Residual current device (RCD)
- Reset Method : Manual Pushbutton
- Protection Test Button : true
- RCD Operating Current : 30.0mA
- RCD Non-operating Current : 15.0mA
- RCD Trip Time : 100.0ms
GTIN: 9319236750797
Reference ID: 2087295
