Panel/Surface Mount LED Voltmeter 5-30VDC

Panel/Surface Mount LED Voltmeter 5-30VDC



Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).



Product Specifications:

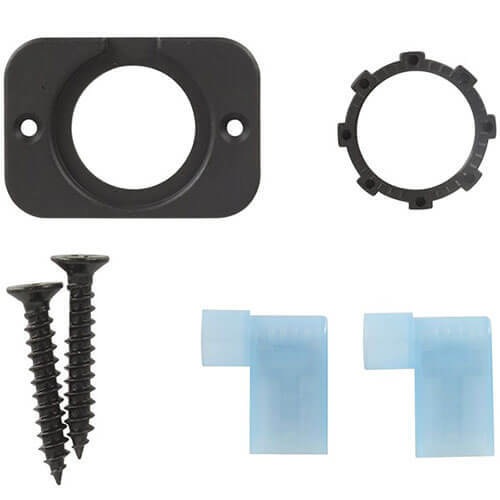

  • Supplied with brackets for panel or surface mounting
  • Connection is via 6.3mm spade terminals
  • Also available with additional modules
  • DC Volts Measurement Range : 5.0V, 30.0V
  • Display Type : LED
  • Display Height : 36.0mm
  • Display Width : 26.0mm
  • Display Backlight : Red LED Backlit
  • Bargraph : false
  • Width : 60.0mm
  • Height : 42.0mm
  • Dimensions for : Including Bracket
  • Dimension details : Panel Mounting
  • Mounting Method : Panel
  • Attachment / Securing Method : Collar / Nut
  • Square Mount Hole Width : 60.0mm
  • Square Mount Hole Height : 42.0mm
  • Dimension details : Including Bracket
  • Dimensions for : Under Dash / Surface Mounting Hood
  • Width : 55.0mm
  • Height : 50.0mm
  • Depth : 80.0mm
  • Dimensions for : Without Bracket
  • Dimension details : Voltmeter module
  • Depth : 40.0mm
  • Diameter : 36.0mm
GTIN: 9319236275139
