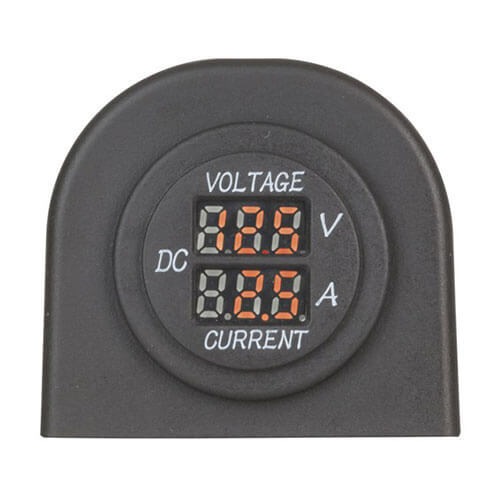

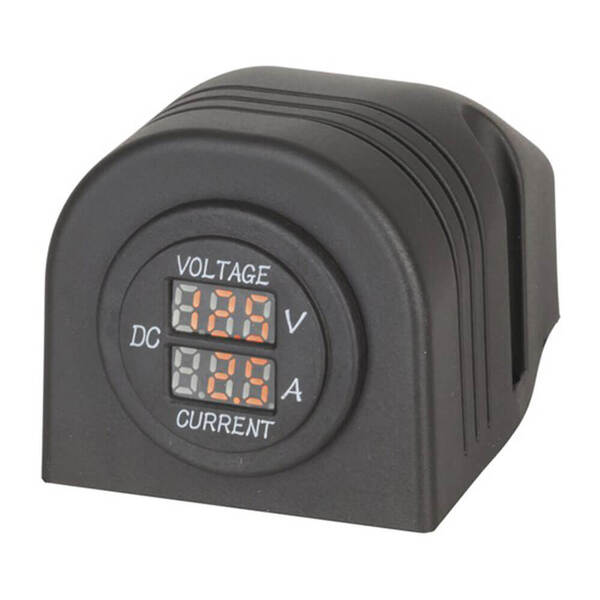

Panel/Surface Mount LED Voltmeter and Ampmeter

Image 1
Image 2
Image 3
Shop More Products

Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.



Product Specifications:

  • Supplied with brackets for panel or surface mounting
  • Connection is via three 6.3mm spade terminals (current shunt in-built)
  • Also available with additional modules
  • Current DC Measuring Range : 0.0A, 10.0A
  • DC Volts Measurement Range : 5.0V, 30.0V
  • Digits Displayed : 3.0 digit
  • Display Type : LED
  • Display Backlight : Red LED Backlit
  • Width : 60.0mm
  • Height : 42.0mm
  • Dimensions for : Including Bracket
  • Dimension details : Panel Mounting
  • Mounting Method : Panel
  • Attachment / Securing Method : Collar / Nut
  • Dimension details : Including Bracket
  • Dimensions for : Under Dash / Surface Mount Hood
  • Width : 55.0mm
  • Height : 50.0mm
  • Depth : 80.0mm
  • Dimensions for : Without Bracket
  • Dimension details : Voltmeter/ammeter module
  • Depth : 40.0mm
  • Diameter : 36.0mm

GTIN: 9319236535677

Reference ID: 846193
