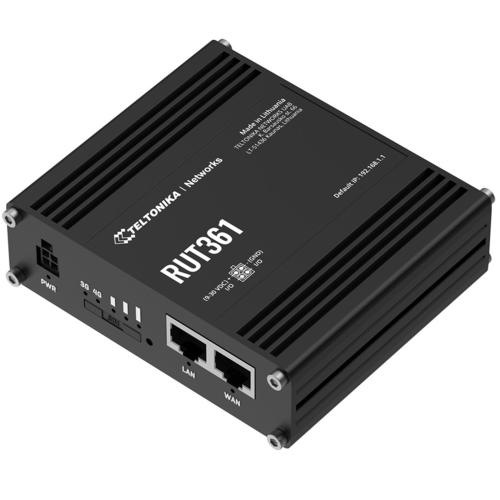

Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router with Digital I/O
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
4G LTE CAT 6
Cellular speeds of up to 300Mbps with carrier aggregation
Wi-Fi
802.11 b/g/n wireless access point with hotspot functionality
WAN FAILOVER
Automatic switching to available backup connection
RMS
For remote management, access & VPN services
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB serial NOR flash
Mobile module
4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release
Release 12
Bands
4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B321, 4G (LTE-TDD): B38, B40, B41, B42, B43
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless mode
802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN
1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Inputs
Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output
Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
Events
Email, RMS, SMS
I/O juggler
Allows to set certain I/O conditions to initiate event
Routing Static
routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Load balancing
Balance Internet traffic over multiple WAN connections
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN
OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS Supported modes
Server, Client
DATA TO SERVER Protocol
HTTP(S), MQTT, Azure MQTT
Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data
Monitoring & Management
WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
Power Connector
4-pin industrial DC power socket
Input voltage range
9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)
Passive PoE (Optional - different hardware required; contact your sales manager)
Power consumption
Idle: < 2.4 W, Max: < 4.7 W
I/O’s
2 x Configurable I/O pins on 4-pin power connector
Status LEDs
2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power
SIM
1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Antennas
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
Reset
Reboot/User default reset/Factory reset button
Casing material
Aluminium housing
Dimensions (W x H x D)
100 x 30 x 85 mm
Weight
243 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
- MPN: RUT361
